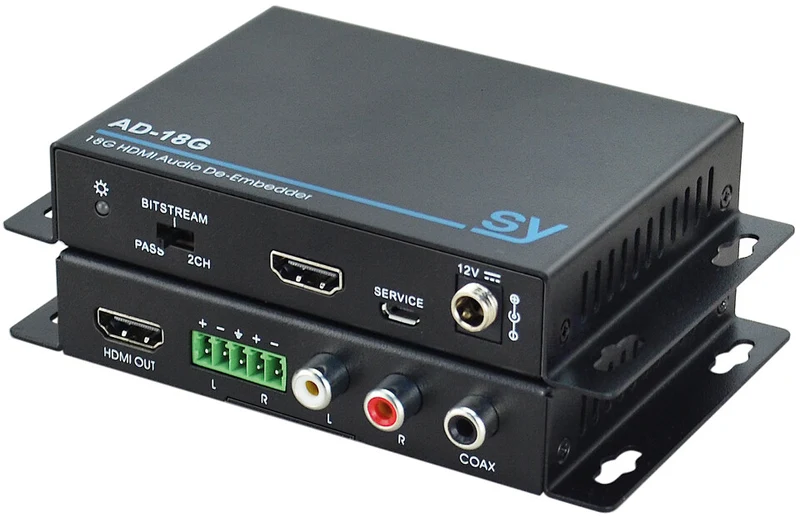

SY Electronics SY-AD-18G audio converter Black

• HDMI 2.0, 4K60 4:4:4 (18G), HDCP 2.2, HDR and CEC compliant
• HDMI HBR (high Bit Rate) supported in PASS model
• LPCM 2.1, Dolby 2/5.1 and DTS 2/5.1

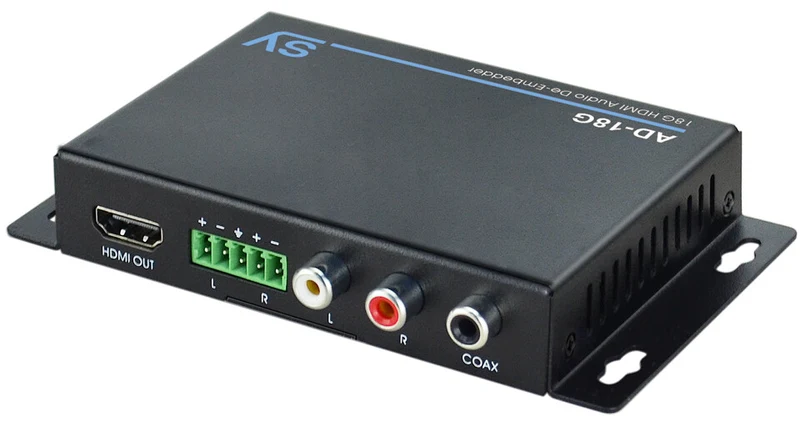

• Balanced stereo analogue and Coax S/PDIF audio outputs
• Audio De-embed, even when no display connected

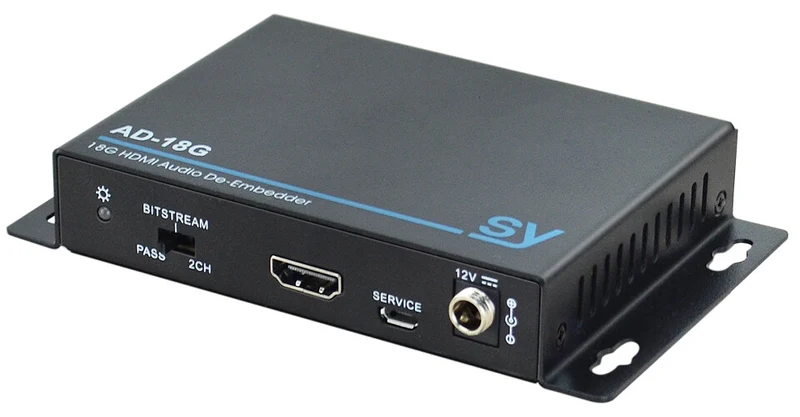

• Supported Audio input modes: Pass-through, Bitstream, PCM

The AD-18G de-embedder is HDMI 2.0, 4K60 4:4:4 (18Gbps) rated, with EDID and CEC pass-through.

In 2Ch mode, it de-embeds the audio simultaneously to all 3 audio outputs (Balance stereo, unbalanced & Coaxial S/PDIF).

In Bitstream mode, the audio is de-embedded only to the Coax S/PDIF.

Inputs
HDMI in	1
DC-in jack	Yes

Outputs
Number of HDMI outputs	1
Audio (L/R) out	1
Digital audio coaxial out	1

Technical details
Maximum resolution	3840 x 2160 pixels
Housing material	Steel
Product colour	Black

Power
Operating voltage	12 V

Weight & dimensions
Width	129 mm
Depth	77 mm
Height	21.5 mm
Weight	245 g

Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
