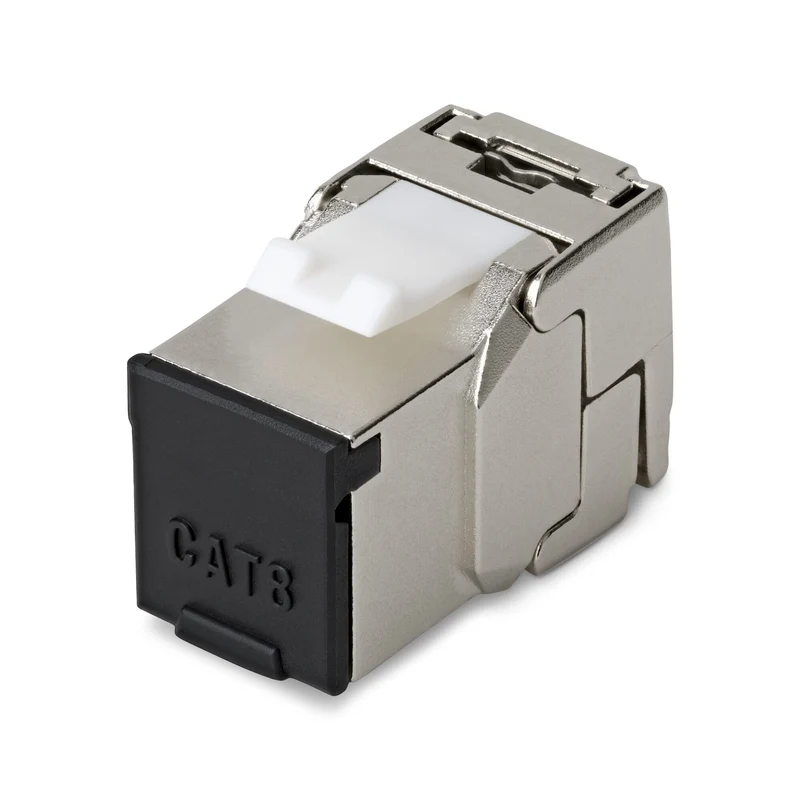

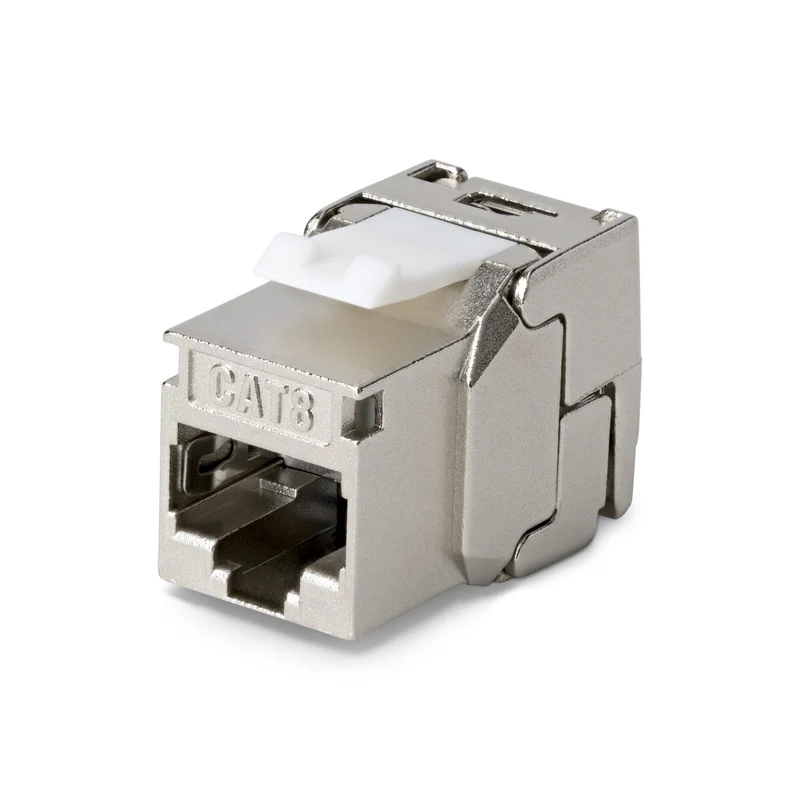

StarTech.com Cat8 Keystone Jack, 6-Pack RJ45 Ethernet Keystone Jacks, STP Cat8 Wall Jack, 180-Degree Toolless

• Terminate Cat8 Cable Runs: Use this 6-pack of Toolless Cat8 RJ45 STP keystone jacks to quickly terminate shielded 25G/40G network cable drops; This multipack is ideal for high-speed patch panels and wall plates across critical LAN infrastructure
• Fit Rackmount Panel Layouts: Toolless Cat8 keystone jack has a 180-degree orientation to support straight rear cable terminations; Ideal for patch panels and wall plates where in-line orientation is preferred and rear clearance is not a constraint

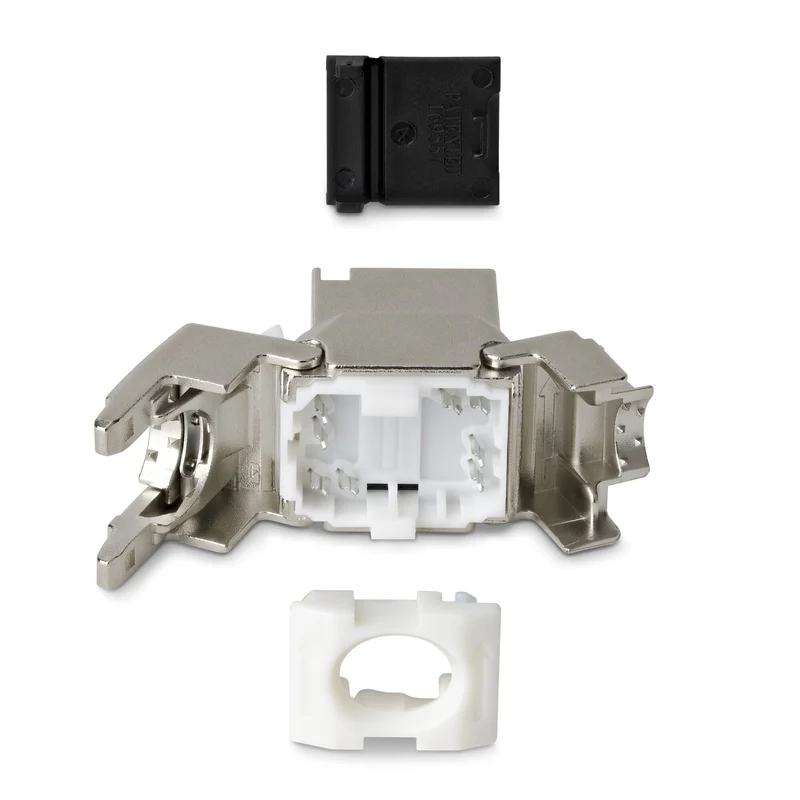

• Simplify Wiring Connections: Terminate RJ45 wiring in T568A or T568B configurations without punch down tools; Wiring schemes are printed on the jack for quick reference; Toolless design enables quick installation and reconfiguration when needed
• Standardize Network Compatibility: Enable 25Gbps/40Gbps Ethernet and up to 100W PoE (IEEE 802.3bt Type 4) over Cat8 STP; Gold-plated contacts enhance conductivity and meets ANSI/TIA-568-C.2 standards; Backward compatible with Cat6/6a in mixed-cable environments
• The IT Pro's Choice: Our network jacks, connectors, and couplers are tested for peak performance in structured cabling environments; Designed for reliability with consistent fit and finish; Backed by free lifetime 24/5 multi-lingual technical assistance

Terminate 25G/40G Ethernet cable runs with toolless 180-degree Cat8 keystone jacks

Use this 6-pack of Toolless Cat8 RJ45 Keystone Jacks to terminate Cat8 network links quickly and cleanly without punch down tools. Designed for enterprise 25G/40G networks and infrastructure, this Cat8 keystone jack set offers a reliable solution for terminating shielded cables to high-speed patch panels.

For Straight-Through Terminations

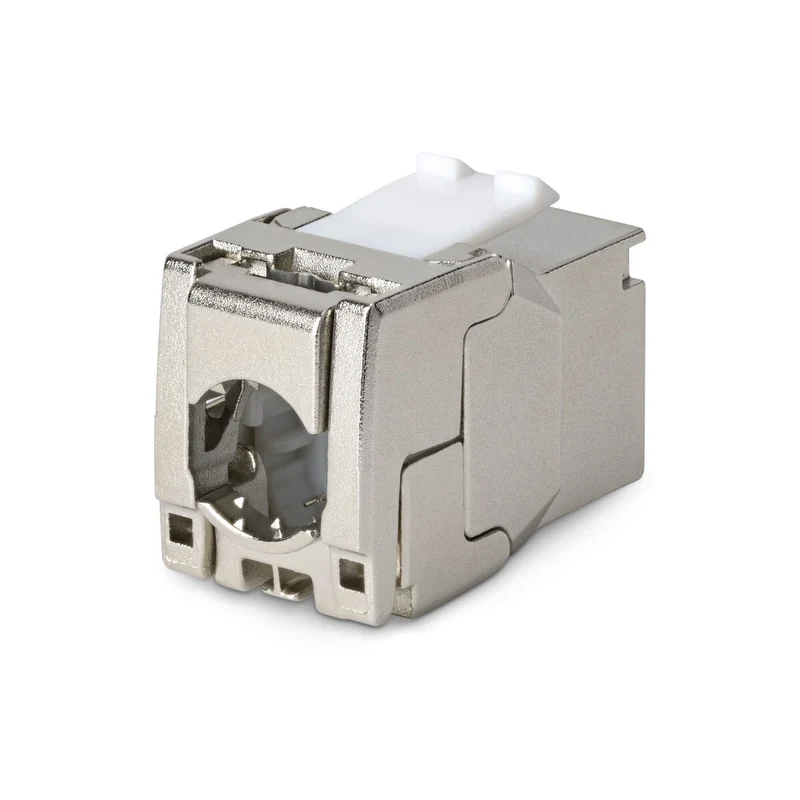

The Toolless Cat8 Keystone Jack features a 180-degree layout that supports straight cable entry from the rear, suitable for keystone patch panels and wall plates with open clearance. This layout enables clean, straight-through terminations without re-positioning the cable.

Enhanced EMI Protection

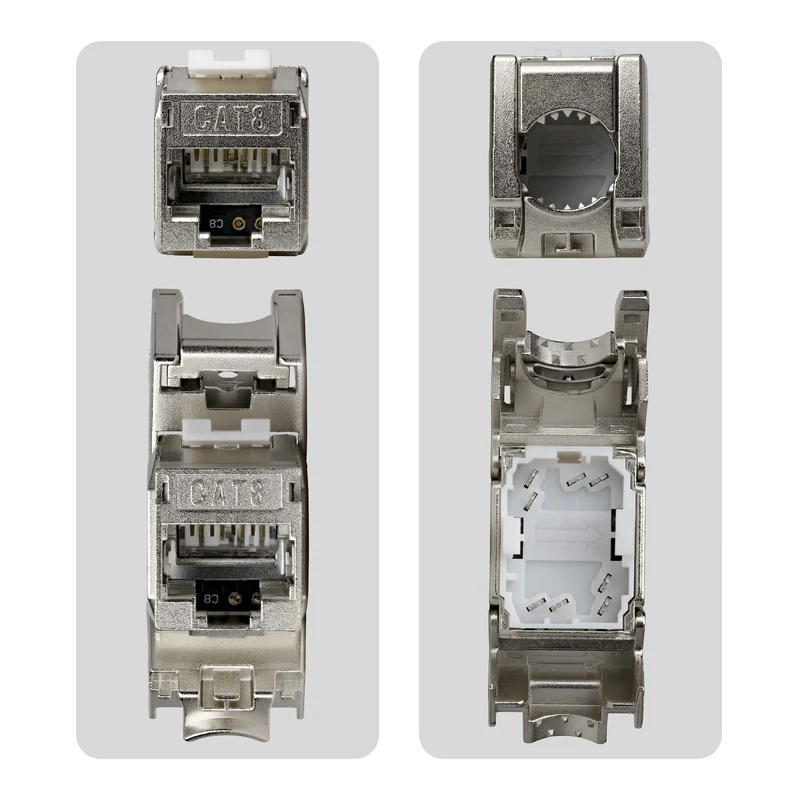

Maintain signal integrity in high-density installations with a zinc alloy housing and nickel-plated shielding designed to minimize EMI. Gold-plated phosphor bronze RJ45 contacts ensure stable connectivity, for long-term reliability in high-uptime networks and demanding environments.

Streamline Large Deployments

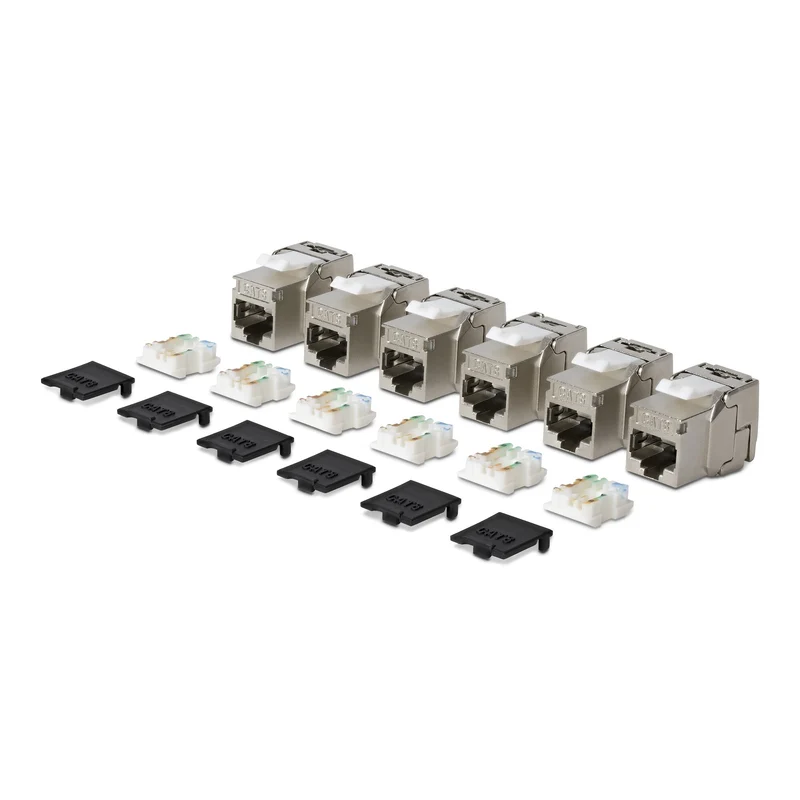

Plan and execute multi-room cabling projects with consistent hardware at every drop point. The 6-pack format enables standardized terminations, eliminating variability from mixed stock and ensuring consistency across larger LAN deployments.

Features
Construction type	Flat
Product colour	Silver
Connector 1	RJ-45
Connector 1 gender	Female
Connector 2 gender	Female
Cabling technology	25/40GBase-T
Connector contacts plating	Gold
Cable types supported	Cat8
Housing material	Polycarbonate (PC), Zinc
Built-in dust cover	Yes
Networking standards	IEEE 802.3, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bq, IEEE 802.3bt
Power over Ethernet (PoE)	Yes
Pinout modular connector	T568A/B

Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 85%

Technical details
Compliance certificates	Trade Agreements Act (TAA)

Weight & dimensions
Width	16.3 mm
Depth	29.2 mm
Height	19.2 mm
Weight	7 g

Packaging data
Package width	106 mm
Package depth	56 mm
Package height	26 mm
Package weight	137 g

Packaging content
Quantity per pack	6 pc(s)

Logistics data
Master (outer) case width	307 mm
Master (outer) case length	240 mm
Master (outer) case height	236 mm
Products per master (outer) case	80 pc(s)
