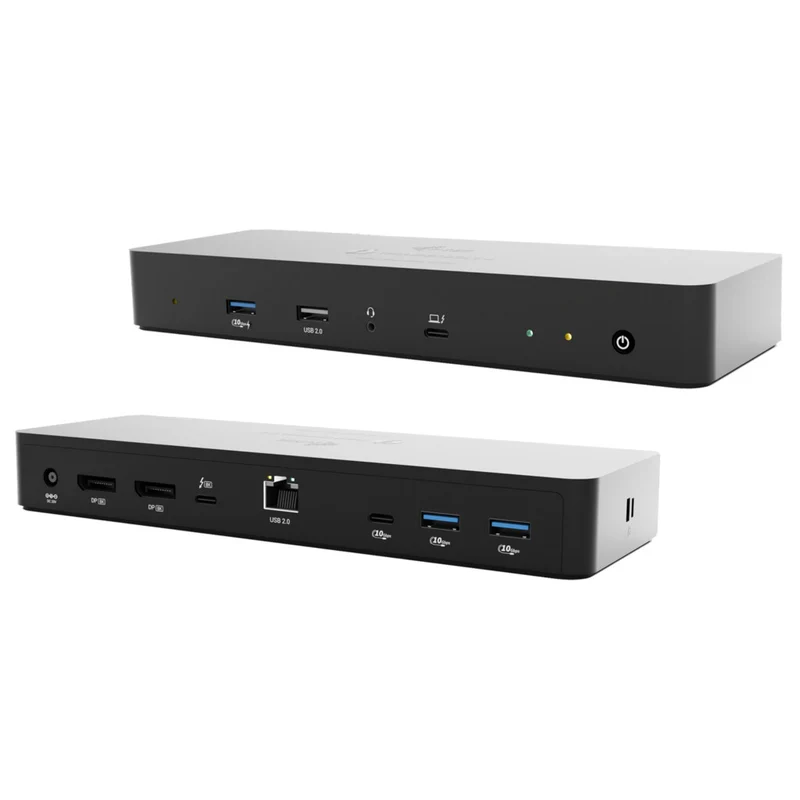

i-tec Thunderbolt 4 Intelligent Dual Display Docking Station + Power Delivery 90W

• A breakthrough docking station with Full Remote Management Capability
• This high-performance, universal docking station features a dedicated LAN port that enables full remote control — down to individual port-level management — from anywhere. Manageability works without a host connection — just power and LAN required.
• The Remote management software (for Windows) is available as an optional add-on and can be purchased at any time. Naturally, the docking station functions fully even without it — the only difference is the absence of remote management capability.
• Compatible with all modern notebooks featuring Thunderbolt™ 3/4/5, USB4, or USB-C ports.
• Supports resolutions up to 8K or dual 4K displays at refresh rates up to 60 Hz.
• Provides up to 90W of power delivery to a connected notebook or tablet.

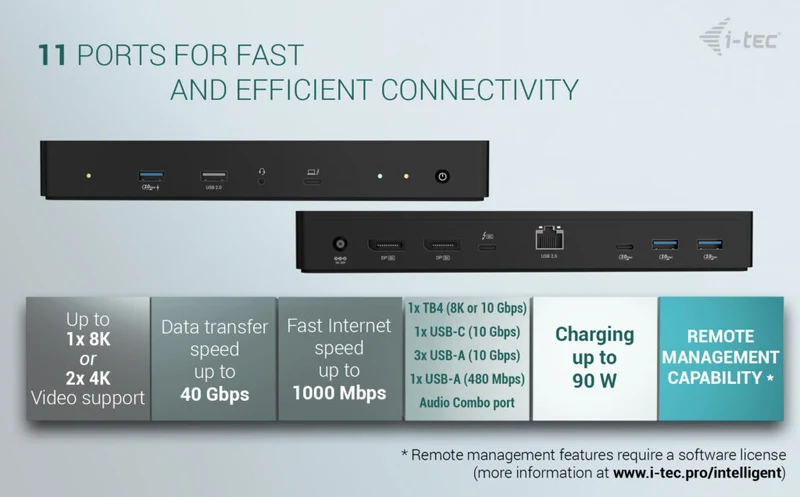

• Offers versatile connectivity with 1× Thunderbolt™ 4 port and 5× USB ports (1× USB-C, 4× USB-A) for easy device and peripheral integration.
• Delivers blazing-fast data transfer speeds up to 40 Gbps (≈4 GB/s).
• Intelligent Gigabit Ethernet ensures ultra-fast 10/100/1000 Mbps wired networking with advanced remote management features.
• Combined 3.5 mm audio/mic jack supports headsets and other audio devices with integrated microphones.

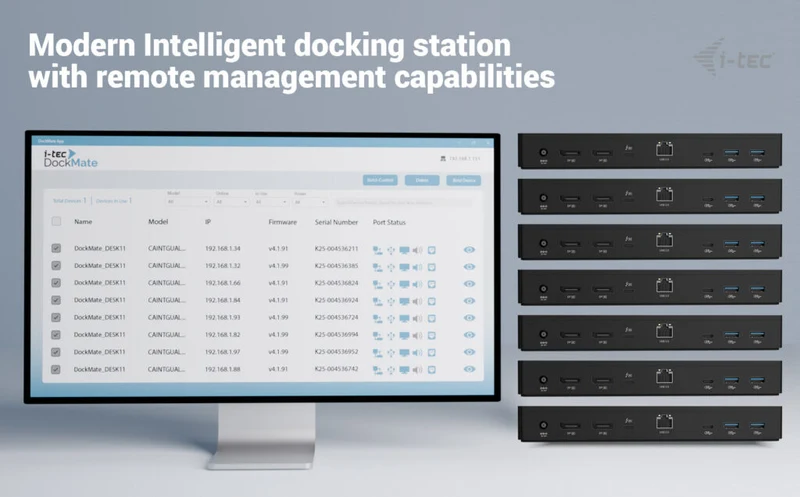

Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere *. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all – Manageability works without a host connection — just power and LAN required. NOTE: The software is available for Windows computers only.

A next-generation, high-performance Thunderbolt” 4 docking station that delivers output to up to two external 4K monitors or a single 8K display. Compatible with virtually all notebooks equipped with USB-C**, USB4, or Thunderbolt” 3/4/5 ports, and supporting all major operating systems.

With multiple USB ports (including USB 3.2 Gen 2 with speeds up to 10 Gbps), a Thunderbolt” 4 port offering either 8K video or ultra-fast 40 Gbps data transfer, and a reliable, high-speed LAN connection, this docking station is the ideal solution for demanding professionals. Naturally, it also supports up to 90W power delivery to keep your notebook or tablet charged.

- Connect a single 8K display or up to two external monitors in resolutions up to 4K**

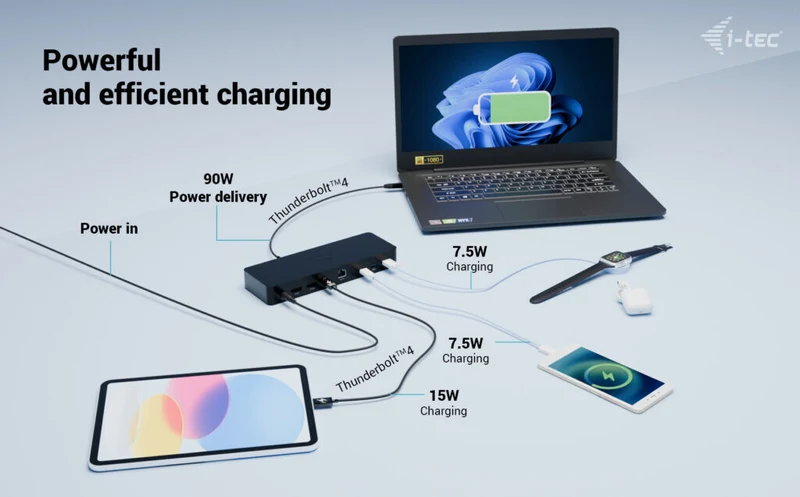

- Power delivery up to 90 W

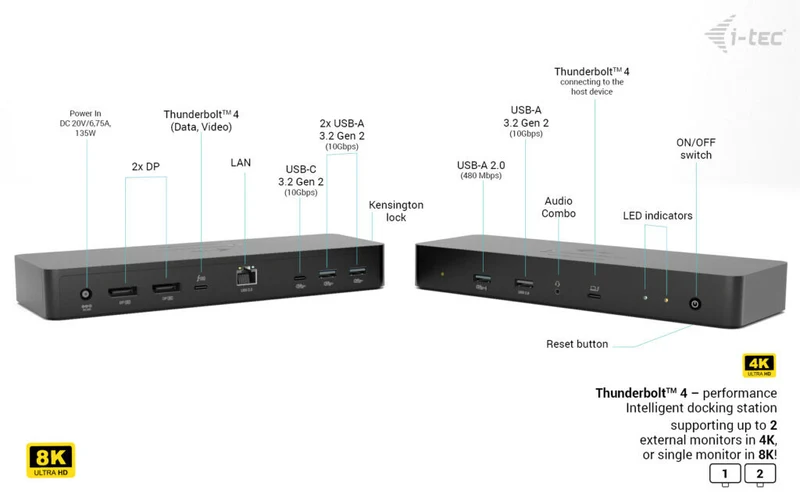

- 2× DisplayPort and 1× Thunderbolt” 4 port available
- 5× USB ports: 1× USB-A (10 Gbps, BC 1.2 fast charging), 2× USB-A (10 Gbps), 1× USB-A (2.0), and 1× USB-C (Gen 2, 10 Gbps)
- Intelligent Gigabit Ethernet (RJ-45) provides reliable, high-speed connectivity with 10/100/1000 Mbps support and seamless remote management functionality
- Combined audio/microphone jack
- Kensington lock slot provides anti-theft protection, ideal for shared office spaces or public areas
- Power switch on the docking station allows maximum energy savings
- Supports Windows 10/11, macOS, iPadOS, Android, ChromeOS, and Linux (latest versions)

* Because of the way Thunderbolt” technology works, i-tec DockMate can manage the docking station itself (such as remote on/off, scheduled power saving, or firmware updates), but it cannot directly control individual ports like USB, LAN, audio or display outputs.

** Only one external monitor is supported when connected via a USB-C port.

Ports & interfaces
DC-in jack	Yes
Headphone connectivity	3.5 mm
Combo headphone/mic port	Yes
Thunderbolt 4 ports quantity	2
DisplayPort version	1.4
DisplayPorts quantity	2
USB Power Delivery up to	90 W
USB Power Delivery (USB PD)	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 2.0 ports quantity	1
Host interface	Thunderbolt 4
Connectivity technology	Wired

Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes

Performance
LED indicators	Yes
On/off switch	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Number of displays supported	2
Maximum refresh rate	360 Hz
Maximum digital resolution	7680 x 4320 pixels
Data transfer rate	40 Gbit/s
Card reader integrated	No
Product colour	Black

Power
Power cable length	1.5 m
Thunderbolt 4 cable length	1 m
Compatible power plug types	UK
Output voltage	20 V
Output current	6.75 A
Power supply	135 W

Software
Other operating systems supported	Android, ChromeOS, iPadOS
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Windows operating systems supported	Yes

Weight & dimensions
Weight	295 g
Height	30 mm
Depth	75 mm
Width	220 mm

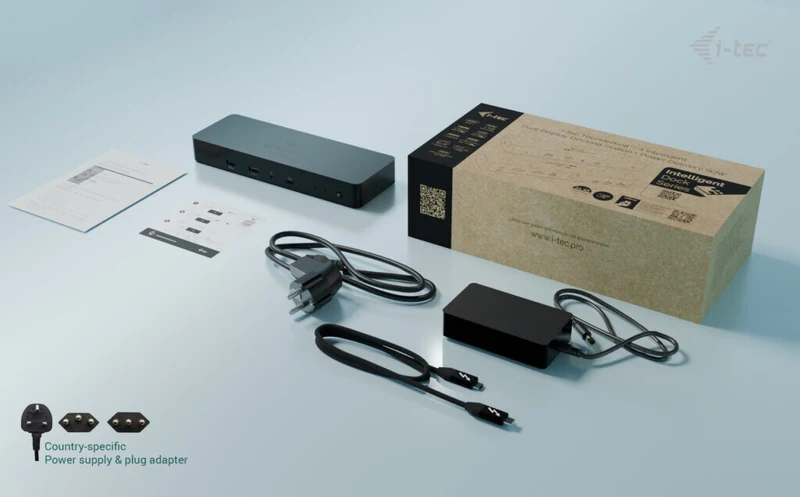

Packaging content
Cables included	DC, Power, Thunderbolt
AC adapter included	Yes
Manual	Yes

• leaflet
