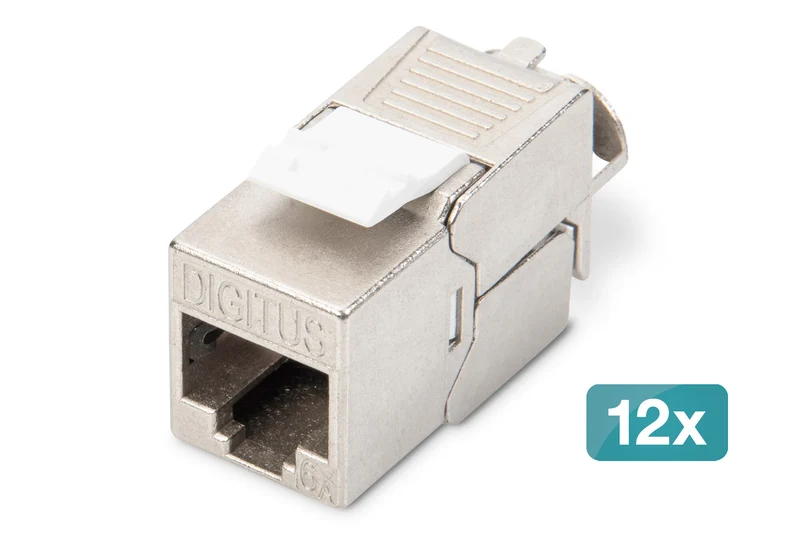

Digitus CAT 6A Keystone module, shielded, tool-free mounting connection - 12 pcs.

• Category 6A 10GBase-T, 500 MHz
• ISO/IEC 11801 3rd Edition, EN 50173-1
• Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)
• Suitable for distribution panel and junction box installation
• RJ45 socket, 8P8C
• Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B
• Strain relief and cable fixing using cable ties
• Tool-free mounting connection
• 360° shield contacting
• Housing material: Zinc die-cast - nickel-plated
• Contact material: phosphor bronze
• Coating Contacts: Nickel, gold-plated
• Insertion force: Max. 30N (according to IEC 60603-7-51)
• Holding force: 7.7 kg between socket and plug
• Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
• Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
• In accordance with IEC 60512-5, IEC 60512-6-5
• Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
• Tested with AWG 22/1 solid installation cable
• (DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
• Intelligent cable manager (reclosable)
• CAT 6A Keystone module set: 12 pcs.
• Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
• Weight: 19.5 g

Quick and easy installation without special tools

- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors
- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

The shielded CAT 6A Keystone module set DN-93615 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features
Construction type	Flat
Product colour	Silver
Connector 1	RJ-45
Connector 1 gender	Male
Cabling technology	10GBase-T
Connector contacts plating	Phosphor/Bronze
AWG wire size	22/1
Cable types supported	Cat6a
Housing material	Zinc
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Frequency	500 MHz
Power over Ethernet (PoE)	Yes
Magnetically shielded	Yes

Operational conditions
Operating temperature (T-T)	-20 - 70 °C

Weight & dimensions
Width	14.6 mm
Depth	36.2 mm
Height	14.4 mm

Packaging content
Quantity per pack	12 pc(s)

• leaflet
