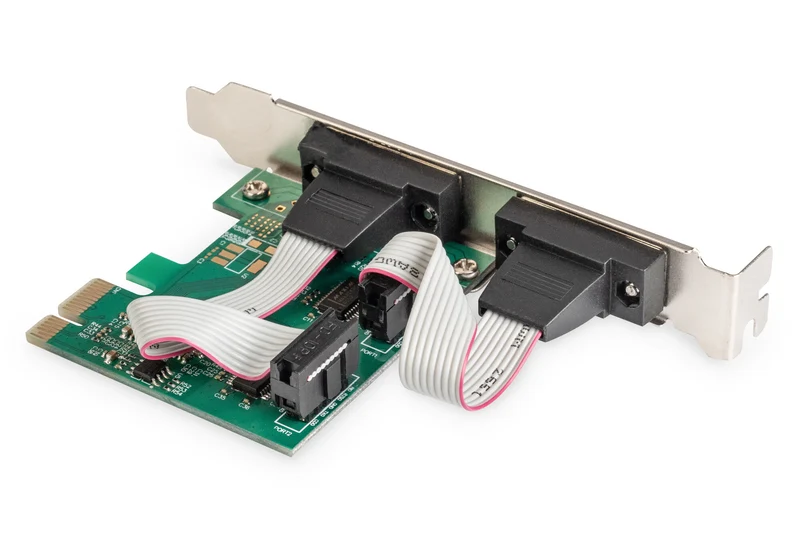

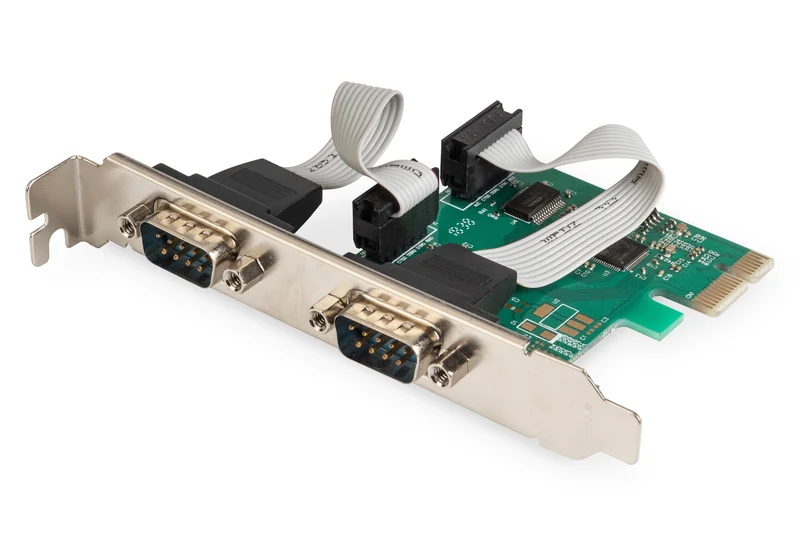

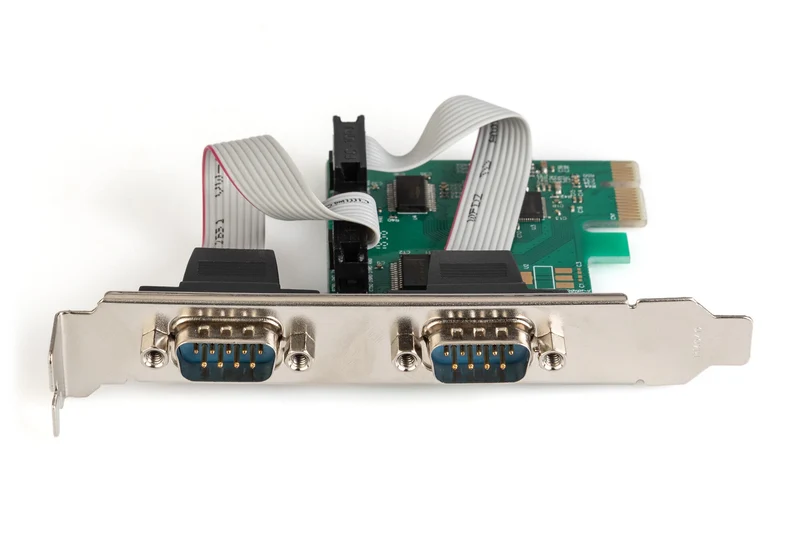

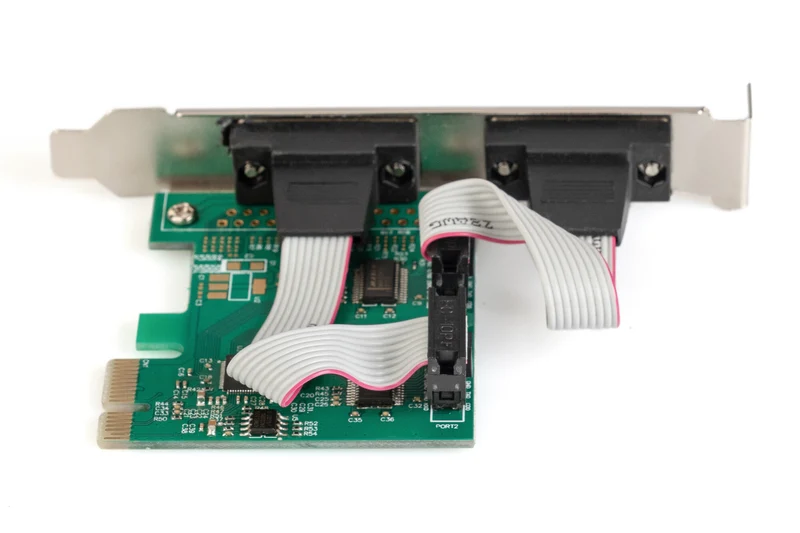

Digitus 2-Port Serial Interface Card, PCIe

• 2 x DSUB 9, serial ports, male, UART 16C950
• Chipset: AX99100
• Data transfer rate up to 1,5 Mbps
• Compliant with PCI Express base specification 2.0
• Compliant with PCI power management 1.2
• Operating temperature: 0 °C - 70 °C
• Operating humidity: 0% - 85% RH (non-condensing)
• Supports Windows 10, 8.1, 8, 7, Vista, XP, macOS X and Linux

Perfect for connecting serial modems, PDAs, digital cameras, printers, ISDN terminal adapters and many more

- Data transfer rate up to 128.000 bps
- Compliant with PCI Express base specification 2.0
- 2 x DSUB 9, serial ports, male, UART 16C950

This PCI Express based serial Add-On card allows you to turn a PCI Express slot into two RS232 (DB9) serial ports. Based on a native single chip design reduces the load applied to the CPU by as much as 48% over conventional serial cards.

Ports & interfaces
Host interface	PCIe
Output interface	Serial
Serial ports quantity	2

Design
Internal	Yes
Country of origin	China

Features
Chipset	Blech OXPCIe952

Logistics data
Harmonized System (HS) code	84733020

• leaflet
