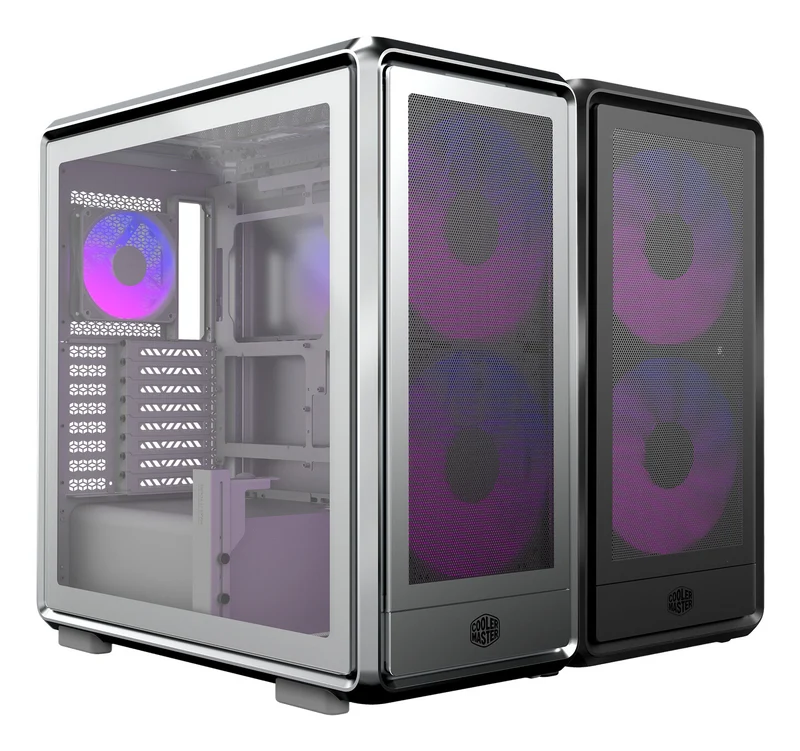

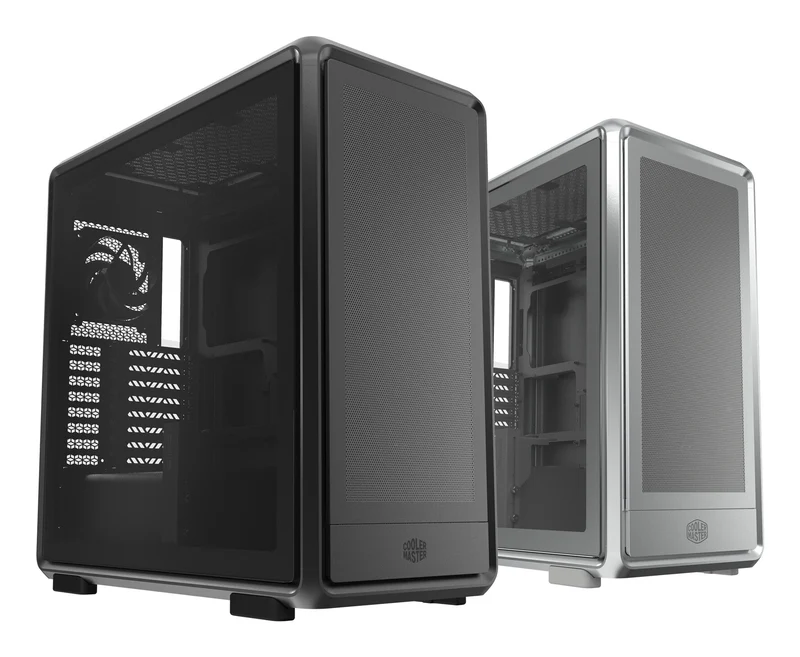

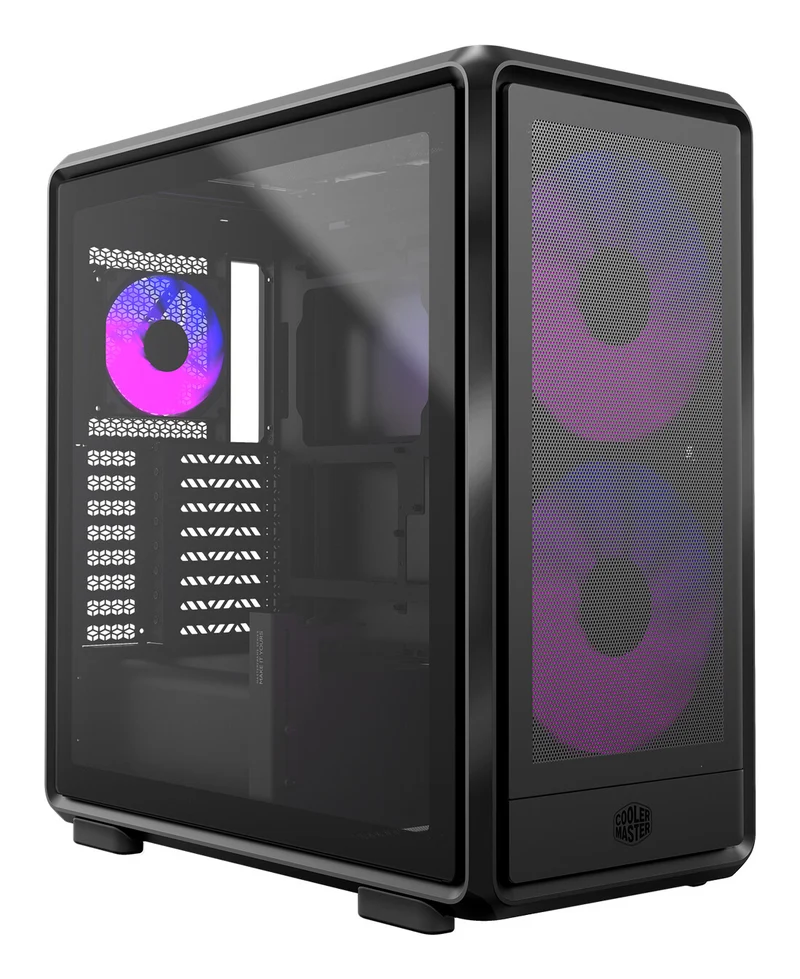

Cooler Master MasterFrame 600 Mesh Midi Tower Black

• Rear SickleFlow 120 ARGB PWM Fans,
• Front Dual SickleFlow 200 ARGB PWM Fan,
• Triple 360mm Radiator support,
• Tempered Glass side,
• USB 3.2 Type-C

Premium modular ATX case
MasterFrame 600 Mesh

Premium open-frame ATX case designed for modular builds, extreme cooling, and total customization through the FreeForm 2.0 platform.

MasterFrame 600 Mesh

The MasterFrame 600 Mesh is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.

FreeForm 2.0
Exo-structure

The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.

Flexible Motherboard Support

Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.

Versatile & Maker-Driven

Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.

Extensive Cooling Support

Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.

Ample GPU Clearance

Accommodates graphics cards up to 485mm, offering plenty of space for high-end GPUs.

Included GPU support bracket

The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.

Tool-Free Panel Removal

Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.

Design
Form factor	Midi Tower
Type	PC
Material	Aluminium, SGCC, Tempered glass
Product colour	Black
Supported motherboard form factors	ATX, EATX, ITX, micro ATX, Mini-DTX, Mini-ITX, SSI CEB
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Number of expansion slots	8
Side window	Yes
Suitable for	Gaming
Illumination	Yes
Illumination colour	Multi
Illumination location	Case fans
Tempered glass panel(s)	Yes
Anti-dust filter	Yes
Cable management	Yes
On/off button	Yes
LED indicators	Yes
Maximum CPU cooler height	19 cm
Maximum graphics card length	48.5 cm
Maximum PSU length	23.5 cm

Power supply
Power supply included	No
Power supply location	Bottom
Supported power supply form factors	ATX

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Combo headphone/mic port	Yes

Cooling
Front fans installed	2x 200 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140,180,200 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140,180,200 mm
Liquid cooling capability	Yes
Front radiator sizes supported	120,140,240,280,360,420 mm
Side radiator sizes supported	240,280,360,420 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140,240,280,360,420 mm
Pulse-width modulation (PWM) support	Yes

Storage
Supported HDD sizes	2.5,3.5"
HDD/SSD combo cage	Yes

Technical details
Warranty period	2 year(s)

Weight & dimensions
Width	261 mm
Depth	531 mm
Height	544 mm
Weight	12 kg

Packaging data
Package weight	15 kg

Other features
Volume	73.6 L

• leaflet
