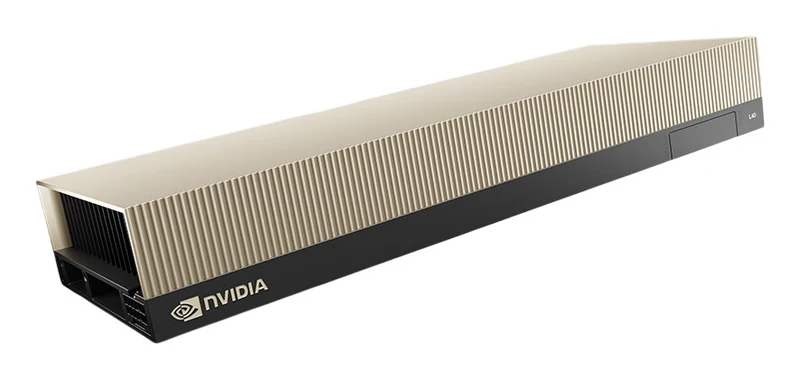

Cisco NVIDIA L40 L40S 48 GB GDDR6

• NVIDIA L40S 48 GB GDDR6
• 384 bit 9001 MHz PCI Express x16 4.0
• DisplayPorts quantity: 4
• 1x 16-pin

Un/Box the future with Cisco UCS® X-Series Modular System and Cisco Intersight™. Embrace an adaptable, future-ready, and cloud-operated system to simplify IT and innovate at the speed of software.

The Cisco UCS X-Series Modular System simplifies your data center, adapting to the unpredictable needs of modern applications while also providing for traditional scale-out and enterprise workloads. It reduces the number of server types to maintain, helping to improve operational efficiency and agility as it helps reduce complexity. Powered by the Cisco Intersight cloud-operations platform, it shifts your focus from administrative details to business outcomes—with hybrid cloud infrastructure that is assembled from the cloud, shaped to your workloads, and continuously optimized.

The Cisco UCS X-Series was engineered to be modular and flexible to offer adaptability and workload flexibility. With the introduction of PCIe Node and X-Fabric technology, X-Series now supports workloads that require GPUs. The unique architecture dramatically simplifies the addition, removal, or upgrade of GPUs to compute nodes. The Cisco UCS X440p PCIe Node allows you to add up to four GPUs to a Cisco X210c M6, X210c M7 or X410c M7 Compute Node with Cisco UCS X-Fabric Technology. Cisco UCS X-Series has no midplane; this innovative design provides fewer obstructions for better airflow. The vertically oriented X210c compute nodes and the X440p PCIe nodes connect directly to horizontally oriented X-Fabric modules. This enables seamless upgrades to future compute nodes, resource nodes, and X-Fabric modules without requiring any forklift upgrades.

Processor
Graphics processor family	NVIDIA
Graphics processor	L40S
CUDA	Yes
CUDA cores	18176
Processor frequency	1065 MHz
Processor boost clock speed	2520 MHz
Parallel processing technology support	Not supported

Memory
Discrete graphics card memory	48 GB
Graphics card memory type	GDDR6
Memory bus	384 bit
Memory clock speed	9001 MHz
Memory bandwidth (max)	864 GB/s

Ports & interfaces
Interface type	PCI Express x16 4.0
DisplayPorts quantity	4
DisplayPort version	1.4a

Performance
TV tuner integrated	No
Dual Link DVI	No

Design
Cooling type	Passive
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2
Product colour	Beige

Power
Power consumption (max)	300 W
Supplementary power connectors	1x 16-pin

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 85%
Storage temperature (T-T)	-40 - 75 °C
Non-operating relative humidity (non-condensing)	5 - 95%

Weight & dimensions
Weight	1.05 kg
