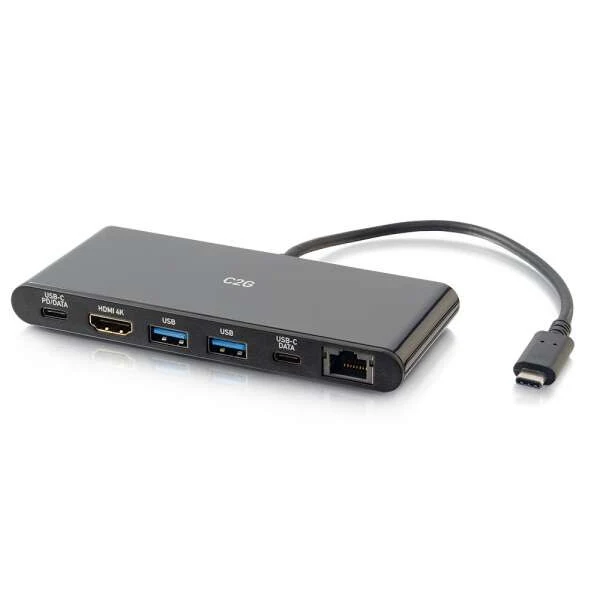

C2G USB-C® Mini Dock with HDMI®, Ethernet, USB and Power Delivery up to 60W - 4K 30Hz

• HDMI bandwidth up to 18Gbps
• HDMI supports resolutions up to 4K (3840 x 2160 at 30Hz)
• HDCP 1.4/2.2
• RJ45 Gigabit Ethernet port
• Backwards compatible with USB 3.0 and USB 2.0
• Power delivery to charge a laptop, tablet, or smartphone
• Compatible with USB-C and Thunderbolt 3 ports
• Reversible, symmetrical USB-C connector

The USB-C Docking Station with 4K HDMI, Ethernet, USB and Power Delivery is an ideal solution for audio/video, wired network connectivity and transferring data whilst in the office or on the road. This docking station connects to a USB-C or Thunderbolt 3 enabled laptop, tablet, or desktop computer and features an Ethernet port and a USB Type-C port with power delivery.

Convenience
Connect to this docking station and display 4K HDMI audio/video content, while delivering power to ensure that a USB-C equipped laptop, tablet or smartphone is fully charged. Also transfer data with ease and speed, using the included USB-C data port or USB 3.0 ports that are backward compatible with USB 2.0. Overall, this docking station offers a lightweight, portable, and simple way to deliver video, transfer data, connect to a network and stay charged up.

Performance
Supporting resolutions up to 4K (3840x2160 at 30Hz), the HDMI connection allows this docking station to mirror or extend a high quality video image to the connected display. Deliver up to 60W of charging power to the connected device. Transfer data up to 10Gbps using the USB-C port or 5Gbps whilst connected to the USB 3.0 ports. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.0

Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Performance
Product colour	Black
Certification	FCC

Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width	133 mm
Depth	55.2 mm
Height	14 mm

Technical details
Compliance certificates	Federal Communications Commission (FCC)

Logistics data
Harmonized System (HS) code	84733020
