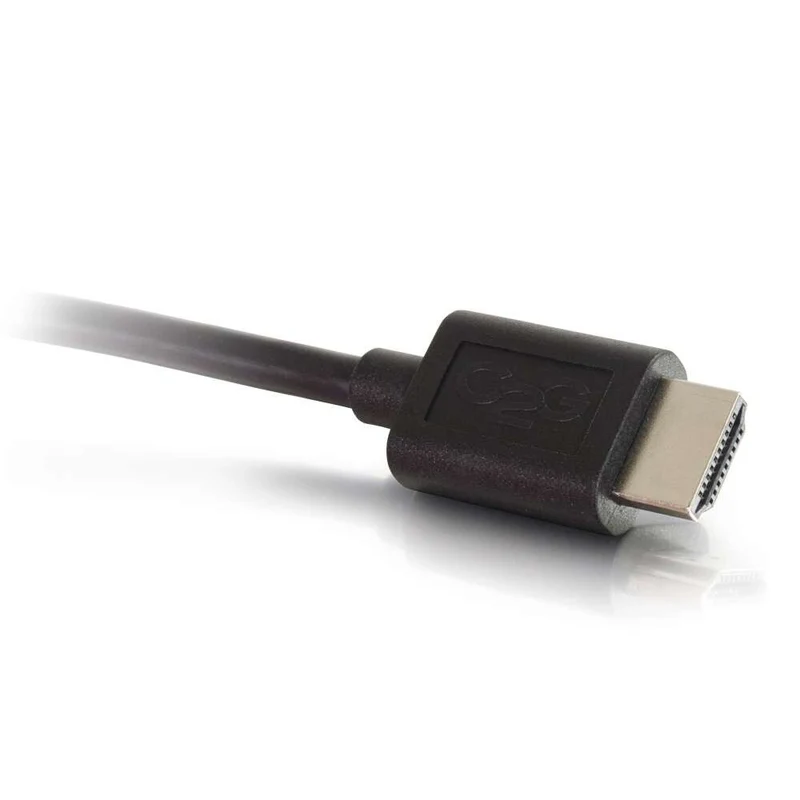

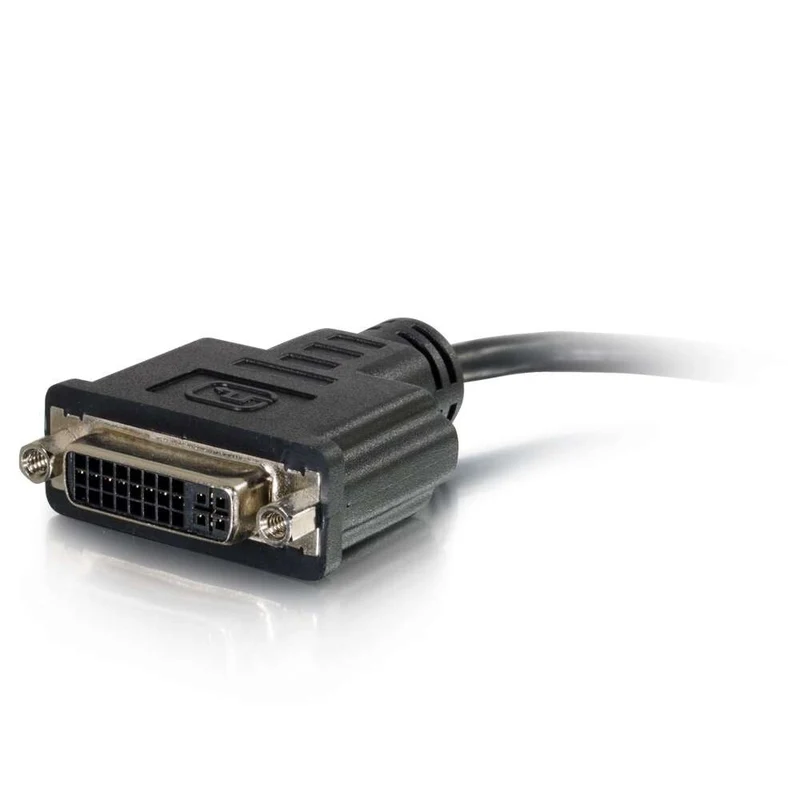

C2G HDMI® Male to Single Link DVI-DTM Female Adapter Converter Dongle

• An ideal solution for connecting the video output of a HDMI-enabled Chromebook or laptop to a DVI-D display.
• The dongle design of this adapter converter does not cause the stress on the port of a small laptop that is common when using a box style adapter.

This adapter converter dongle is an ideal solution for connecting the video output of a HDMI-enabled Chromebook or laptop to a DVI-D display. The dongle design of this adapter converter does not cause the stress on the port of a small laptop that is common when using a box style adapter. Up to a 1920x1200 video resolution is supported, allowing this adapter converter to meet the needs of a high performance application. Connect this adapter directly to the output of a laptop and use a DVI-D cable to connect to a display.

Note: This adapter is not designed to support analog signals. This adapter should be used to connect an HDMI device to a display which accepts a DVI-D digital video input or to connect a DVI-D device to an HDMI display. This adapter is not capable of connecting a HDMI device to a VGA device.

Features
Cable length	0.2 m
Connector 1	HDMI Type A (Standard)
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum resolution	1920 x 1080 pixels
Supported graphics resolutions	1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 800 x 600 (SVGA)
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720i, 720p
Voltage rating	30 V
Product colour	Black
Impedance	100 Ω
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	32

Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 40 °C

Certificates
Compliance certificates	CE
Certification	CE

Weight & dimensions
Cable diameter	5.5 mm

Packaging data
Package weight	50.35 g

Packaging content
Quantity per pack	1 pc(s)

• leaflet
