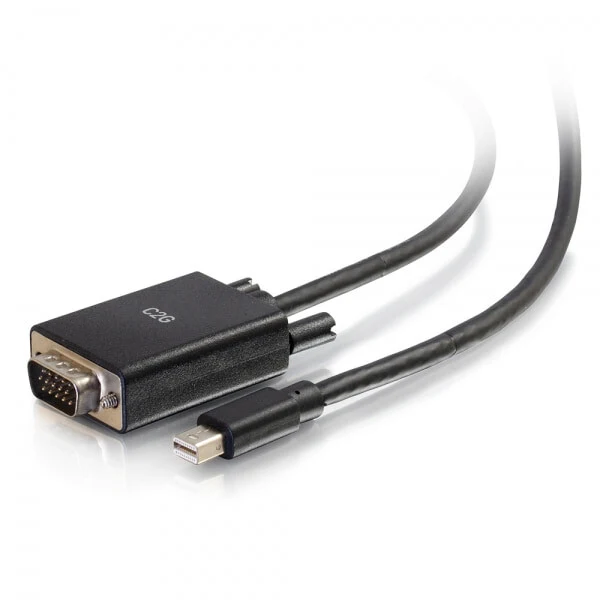

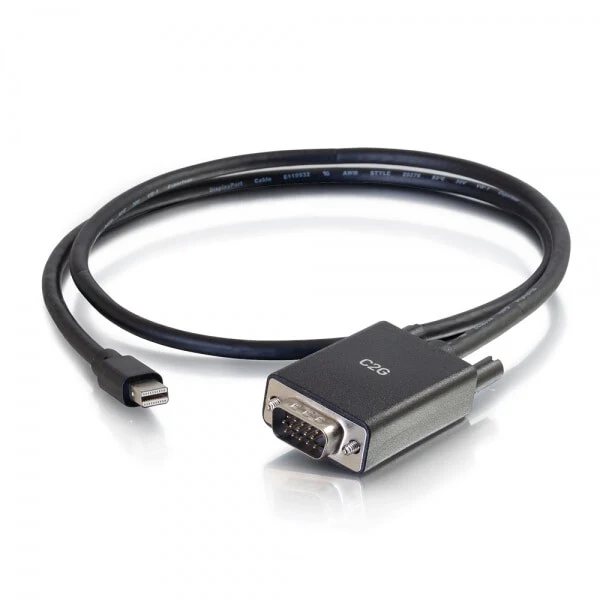

C2G 6ft Mini DisplayPort[TM] Male to VGA Male Active Adapter Cable - Black

• VGA resolutions up to 1920 x 1200
• Adapter in cable form factor
• Active Mini DisplayPort to VGA conversion
• Plug and Play — no driver required

The Mini DisplayPort Male to VGA Male Active Adapter Cable allows you to connect the Mini DisplayPort or Thunderbolt[TM] 2 output of a PC or Mac[R] to a projector or display which accepts a VGA input ― making it an ideal solution for the office, work space applications, or home use.

[B]Convenience[/B]
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable, reducing possible failure points.

[B]Performance[/B]
This cable is a simple plug and play solution and carries an active video signal, supporting high-definition resolutions up to 1920 x 1200, allowing it to deliver a high quality video image to the connected display.

Features
Cable length	1.8 m
Connector 1	Mini DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Nickel/Gold
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	1920 x 1200 (WUXGA)
Voltage rating	30 V
Product colour	Black
Impedance	100 Ω
Chipset	RTD2166
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	30
Plug and Play	Yes
Connector gender	Male/Male

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C

Certificates
Compliance certificates	RoHS
Certification	CE

Weight & dimensions
Weight	100 g

Packaging content
Quantity per pack	1 pc(s)

Logistics data
Harmonized System (HS) code	84733080
