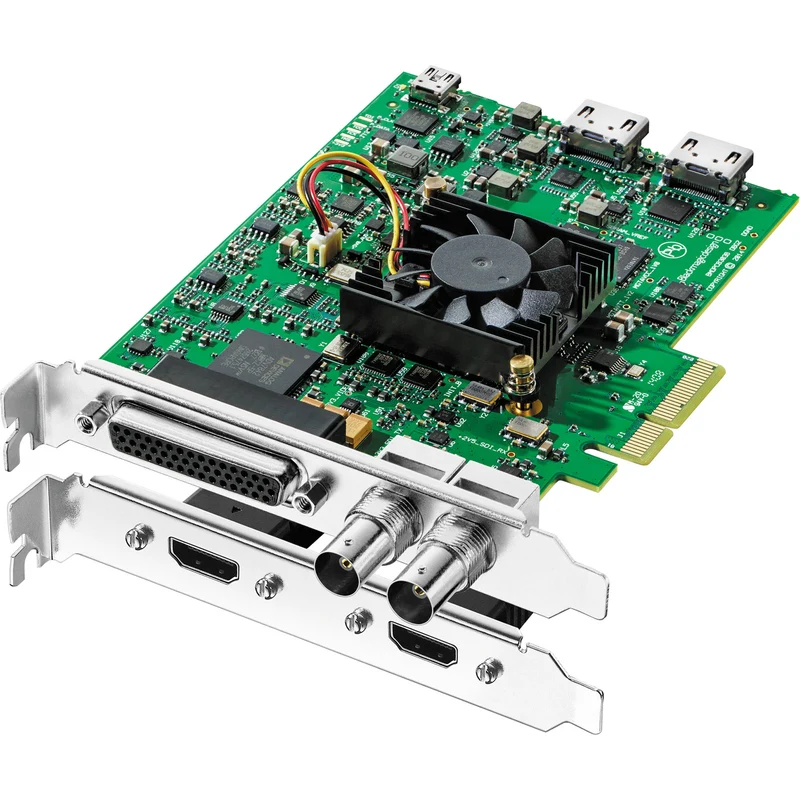

Blackmagic Design DeckLink Studio 4K Card with Capture & Playback

Product Features

• 6G-SDI Input/Output
• 4K HDMI Input/Output
• PCIe Interface
• Supports SD, HD, 2K, and 4K Formats
• UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
• 1080p 4:4:4 by Single-Link 3G-SDI
• Analog I/O via Breakout Cable
• Genlock, RS-422, SD/HD Keyer
• Down/Up/Cross Conversions
• Mac OS X, Windows, and Linux Compatbile

In the Box

• Blackmagic Design DeckLink Studio 4K Capture & Playback Card
• SD Card with Support Software/Drivers
• Breakout Cable for Analog and RS-422 Control
• HDMI Bracket

Overview

Blackmagic Design DeckLink Studio 4K
If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, black burst and tri-sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design with the ultimate future proof design!
