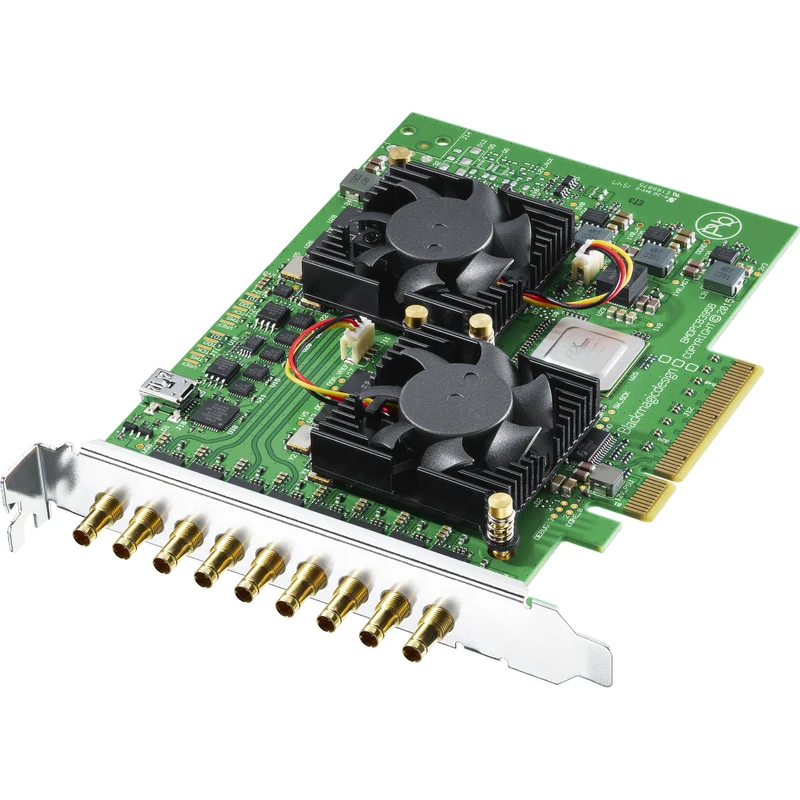

Blackmagic Design DeckLink Quad 2 Card with DIN Capture & Playback

Product Features

• 8 x Bidirectional SD/HD/3G-SDI
• 8-Lane PCIe Interface
• Resolutions up to 1080p60
• DIN (Mini-BNC) Connectors
• Inputs/Outputs Independently Switchable
• Supports Uncompressed RGB 4:4:4 Signals
• Supports 16 Channels of Embedded Audio
• Reference In, Up/Down/Cross Conversions
• Media Express Application Included
• macOS, Windows, and Linux Compatible

In the Box

• Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card

Overview

DeckLink Quad 2
DeckLink Quad 2 features 8 independent 3G-SDI mini DIN capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
