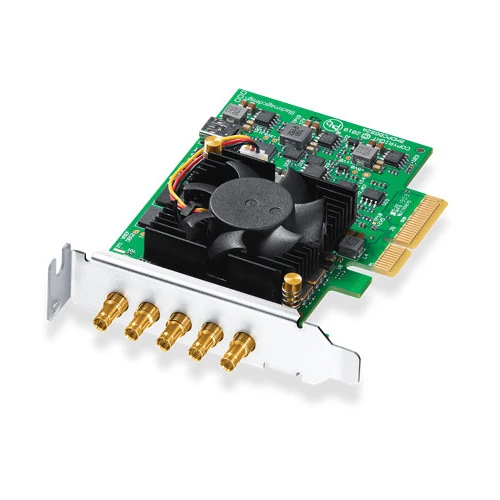

Blackmagic Design DeckLink Duo 2 Mini Card with PCIe Capture & Playback

Product Features

• Mini 3G/HD/SD-SDI Input/Output
• Low-Profile PCIe Interface Card
• Up to 1080p30 10-Bit 4:2:2 in All Modes
• 1080p30 12-Bit 4:4:4 RGB on Playback
• Rec. 601 and Rec. 709 Color Space
• 16 Channels of 48 kHz 24-Bit Audio
• BNC Reference Input
• HD/SD Down/Up/Cross Conversions
• macOS, Windows, and Linux Compatible

In the Box

• Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
• SD Card with Drivers and Utilities

Overview

DeckLink Duo 2 Mini
Featuring 4 independent 3G-SDI mini DIN connections, DeckLink Duo 2 Mini is a low profile, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
