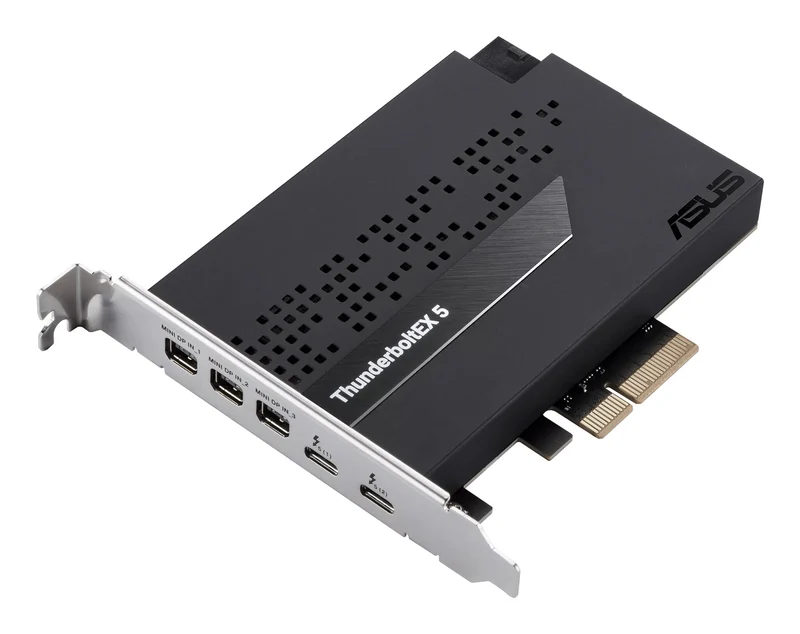

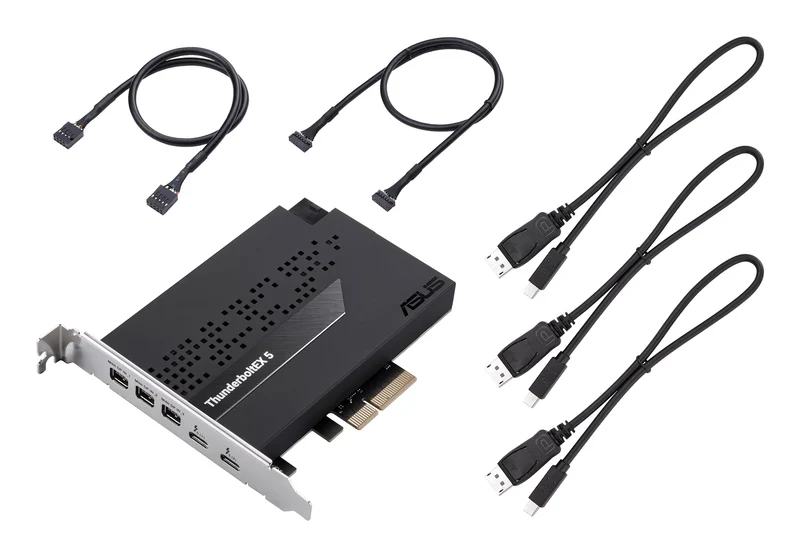

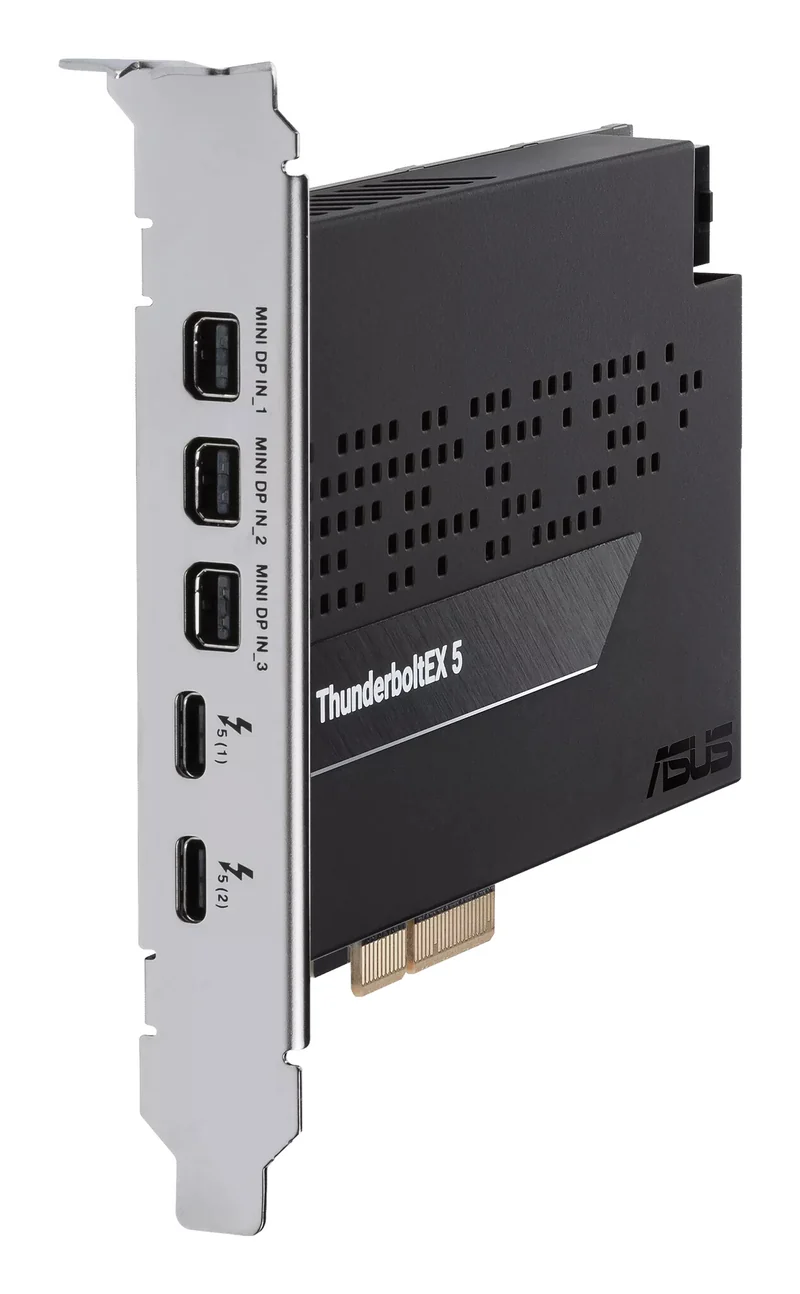

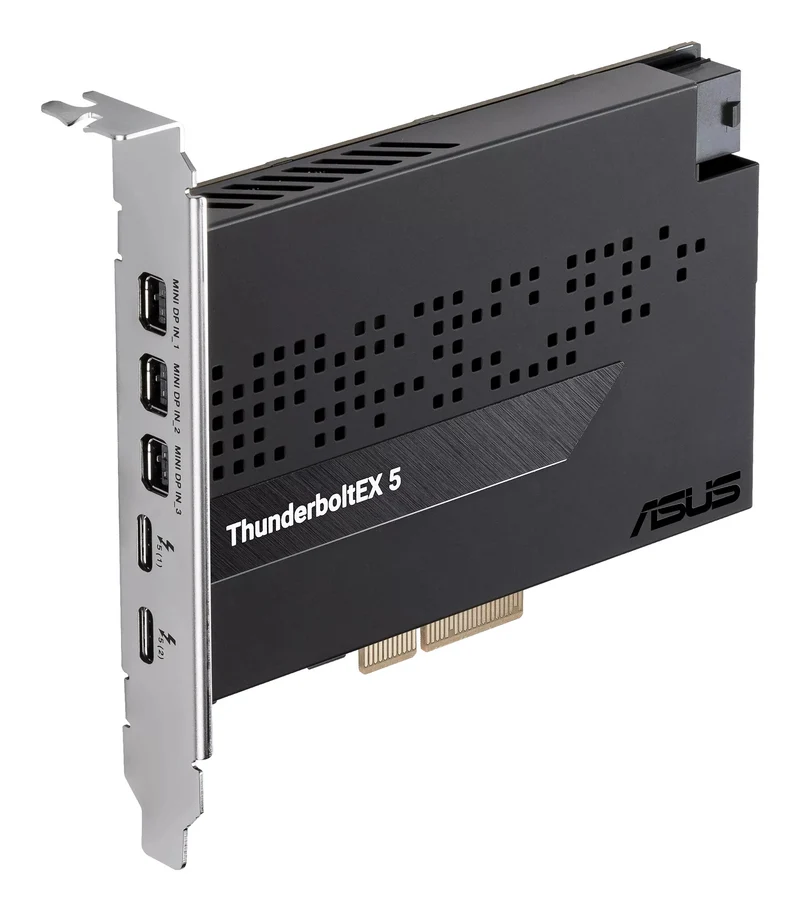

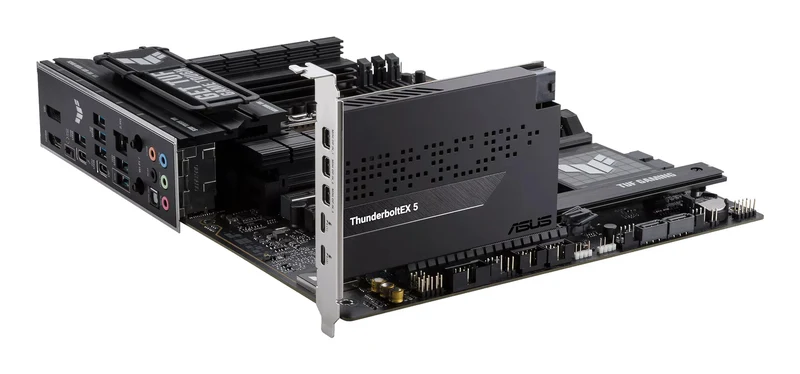

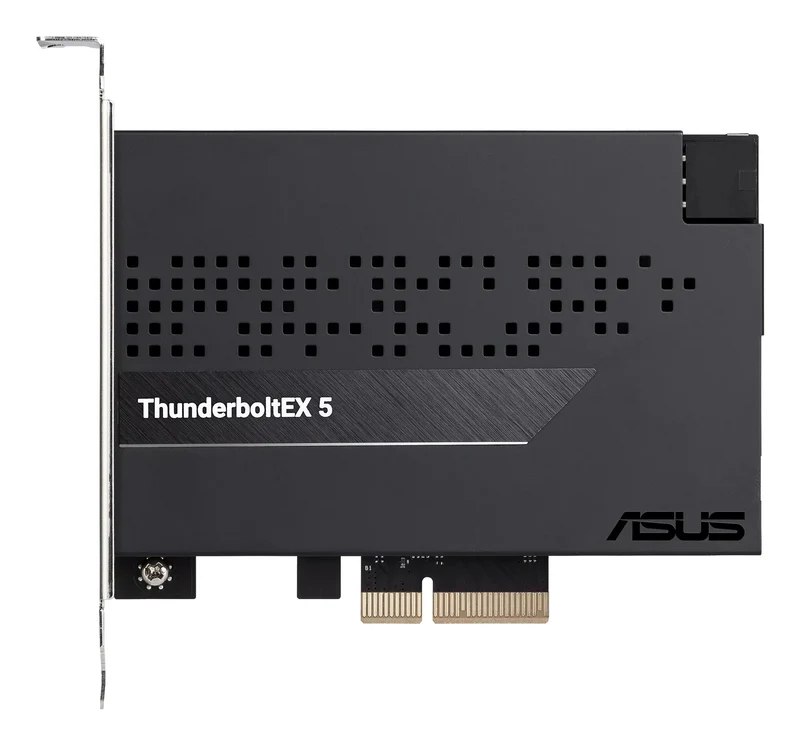

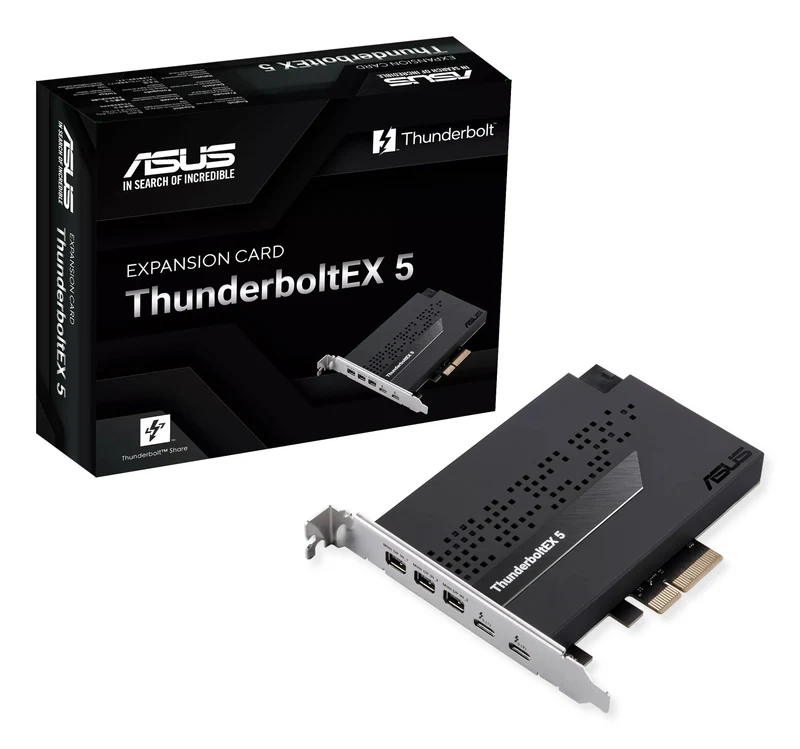

ASUS ThunderboltEX 5 interface cards/adapter Internal Mini DisplayPort, USB 2.0, PCIe, USB Type-C, Thunderbolt, VGA

• Intel® certified Thunderbolt™ 5 add-on card
• Dual USB Type-C® ports support up to 130 watts total of fast charging, and up to 96W for one device
• Up to five Thunderbolt™ devices can be daisy-chained
• Up to 120 Gbps of bandwidth for superfast data transfers and video output
• DisplayPort™ 2.1 port supports up to three 8K 60 Hz displays with DSC

Experience Lightning-Fast Speed and Versatile Connectivity
The ASUS ThunderboltEX 5 card offers up to 120 Gbps of Thunderbolt™ 5 bandwidth, support for DisplayPort™ 2.1 with a compatible GPU, USB4® compatibility, plus support for up to five Thunderbolt™ devices in a daisy-chain and up to 130 total watts of fast charging.

Ports & interfaces
Host interface	PCIe
Output interface	Mini DisplayPort, USB 2.0, PCIe, USB Type-C, Thunderbolt, VGA
Expansion card standard	PCIe 4.0

Design
Internal	Yes
Product colour	Black
Purpose	PC

Features
Data transfer rate (max)	120 Gbit/s

Power
Output voltage	20 V
Output current	4.8 A

System requirements
Windows operating systems supported	Windows 11 x64

Weight & dimensions
Width	88.9 mm
Depth	119.5 mm

Packaging data
Quantity per pack	1 pc(s)
Package type	Box
