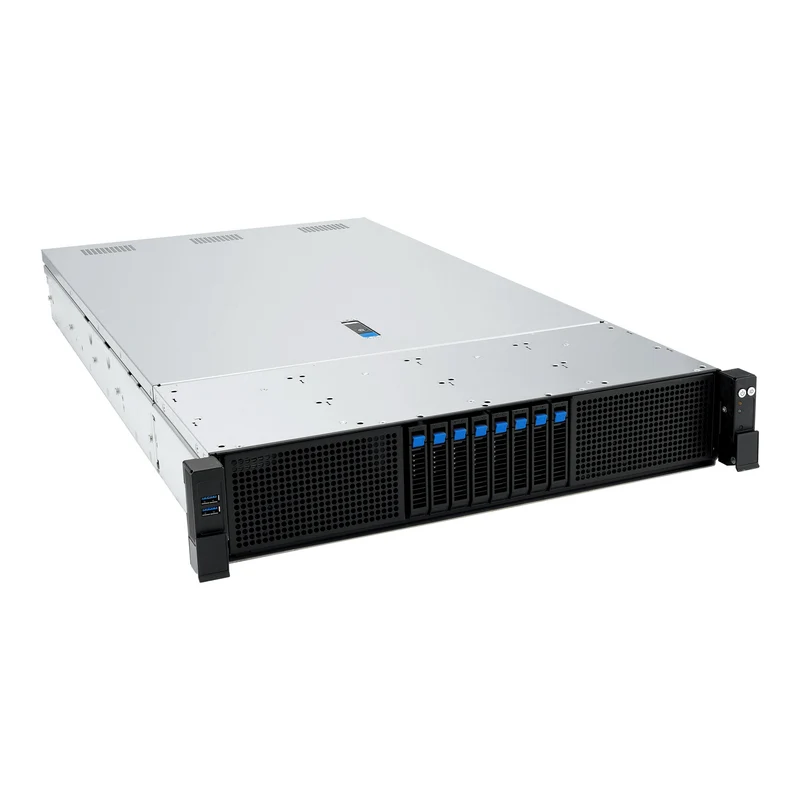

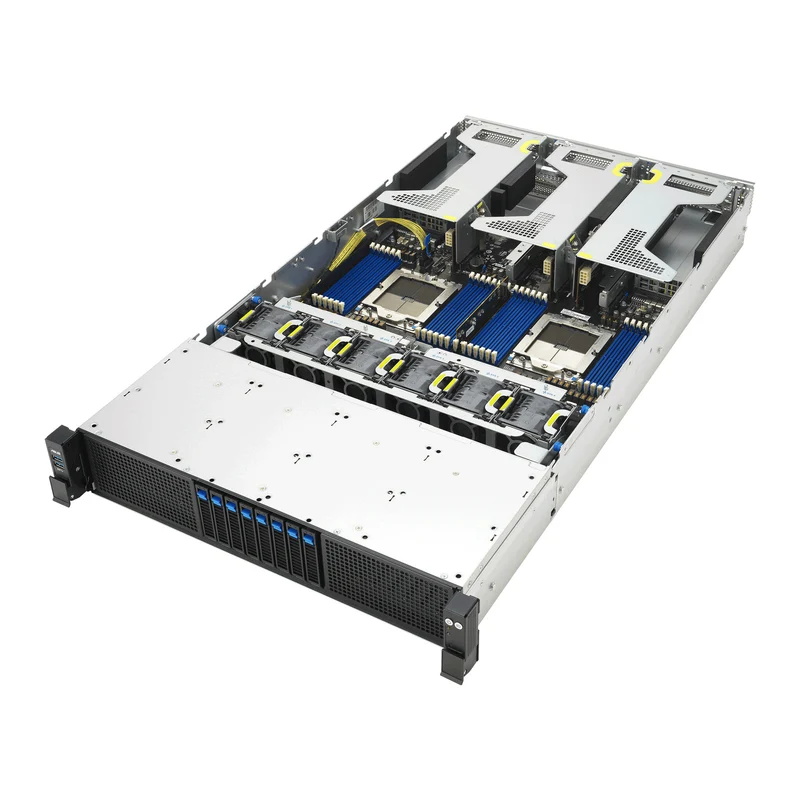

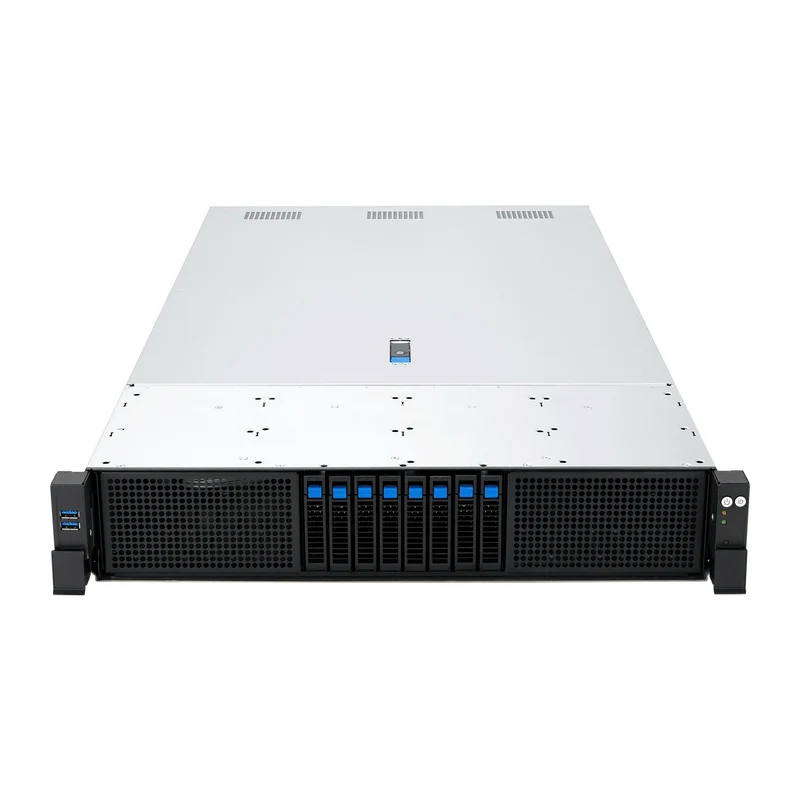

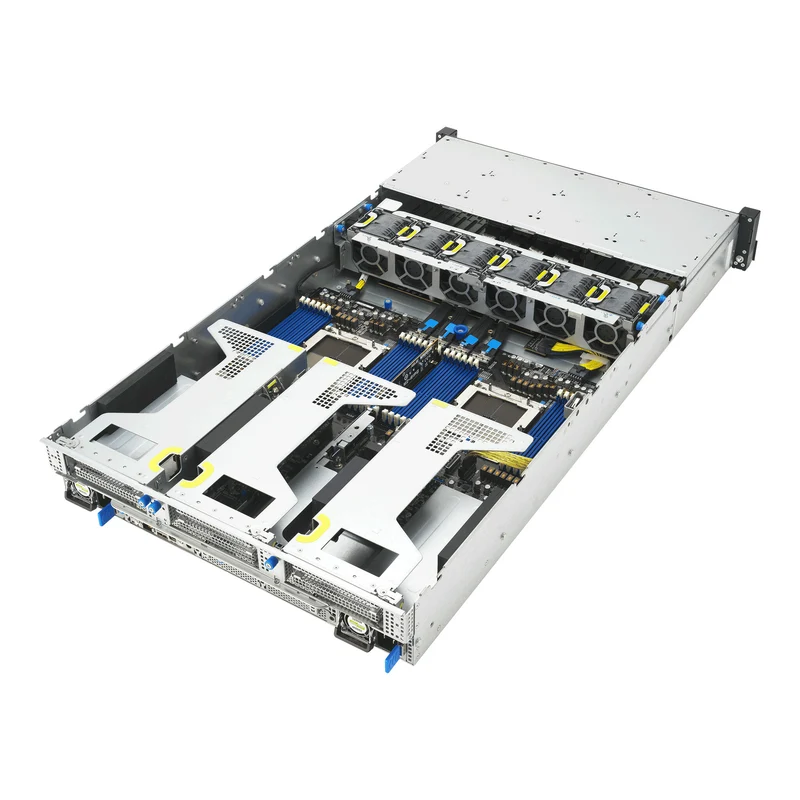

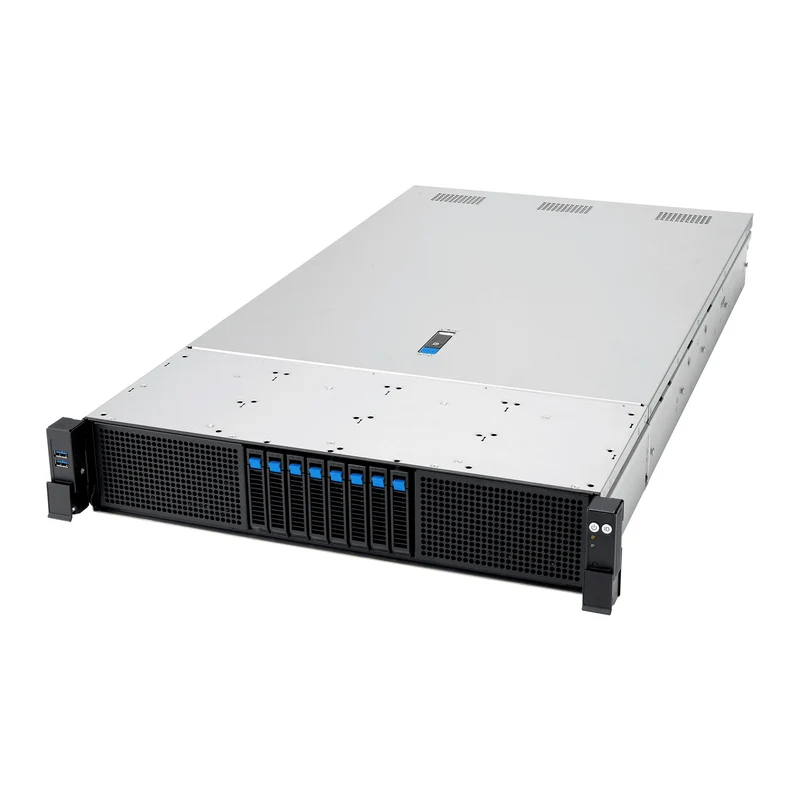

ASUS RS720A-E13-RS8U Socket SP5 Rack (2U) Black, Silver

• High-performance processing: Powered by dual AMD EPYC™ 9005 processors with up to 400W TDP per socket, delivering outstanding performance with 192 cores for demanding workloads
• Modular and scalable architecture: Built on the flexible DC-MHS architecture, providing seamless integration, optimization and scalability for modern data centers and dynamic IT environments
• Advanced cooling solution: 1U enhanced-volume air-cooling (EVAC) heatsinks for GPU with higher TDP, ensuring efficient thermal management and system stability under heavy workloads
• Tool-less, easy-maintenance design: Features tool-less access, including a top-cover handle and optimized fan bar for improved cable management and easy maintenance
• Scalable expansion capability: Supports up to 24 DDR5 RDIMM modules at 6000MHz, maximum up to 3TB. Offers versatile storage options with eight hot-swap bays and supports up to eight NVMe/SATA/SAS support PCIe 5.0 drives for evolving workload requirements
• Enhanced security: PFR FPGA as Root-of-Trust solution with TPM 2.0 for hardware security and regular firmware updates to address vulnerabilities

AMD-based rack server for HPC and AI workloads
ASUS RS720A-E13-RS8U is an efficient, versatile server powered by dual AMD EPYC™ 9005-series processors, delivering exceptional performance for demanding enterprise workloads. Built on the advanced 3nm Zen5/5c architecture, these processors offer up to 192 cores, 384 threads and clock speeds of up to 5GHz, making them ideal for AI/ML processing, data analytics and virtualization. RS720A-E13-RS8U is optimized for seamless integration in modern data centers, offering high efficiency and compatibility across diverse IT environments.

Processor
Number of processors supported	2
Processor family	AMD EPYC
Processor manufacturer	AMD
Processor socket	Socket SP5
Built-in processor	No

Memory
Supported RDIMM clock speeds	5600,6400 MHz
Maximum internal memory	3 TB
Supported DIMM module capacities	16GB, 32GB, 64GB, 128GB, 256GB
Supported memory types	DDR5-SDRAM
Number of DIMM slots	24

Storage
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Storage drive sizes supported	2.5"
Hot-swap HDD bays	Yes
Number of storage drives supported	8

Graphics
On-board graphics card memory	64 MB
On-board graphics card model	Aspeed AST2600

Network
Ethernet LAN	Yes

Ports & interfaces
Mini DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4

Expansion slots
Number of M.2 (M) slots	2
PCI Express slots version	5.0

Features
Trusted Platform Module (TPM)	Yes

Design
Number of fans	6 fan(s)
Cooling type	Active
On/off switch	Yes
LED indicators	Yes
Product colour	Black, Silver
Chassis type	Rack (2U)

Power
80 PLUS certification	80 PLUS Titanium
AC input frequency	50/60 Hz
Number of redundant power supplies supported	2
Redundant power supply (RPS) support	Yes
Power supply	2700 W

Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	20 - 90%

Weight & dimensions
Width	484.6 mm
Depth	822.2 mm
Height	87.3 mm
Weight	17.8 kg

Packaging data
Package weight	21.3 kg

• leaflet
