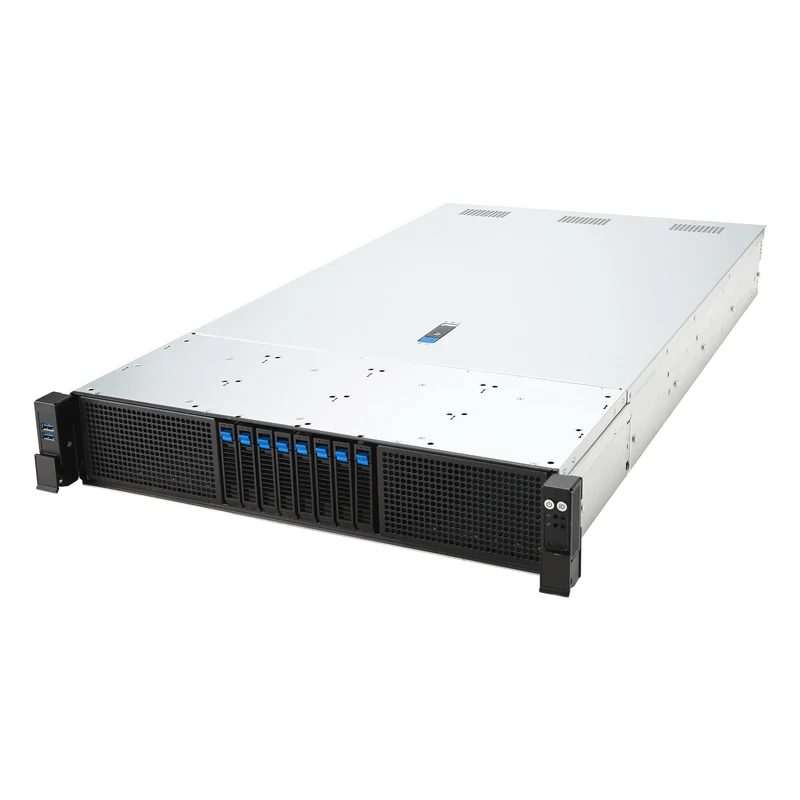

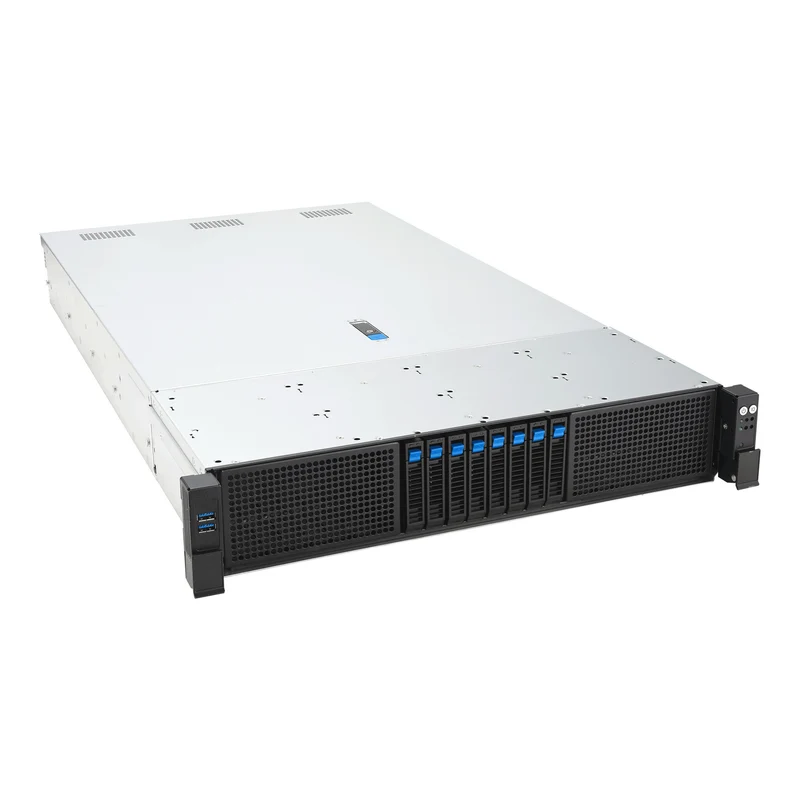

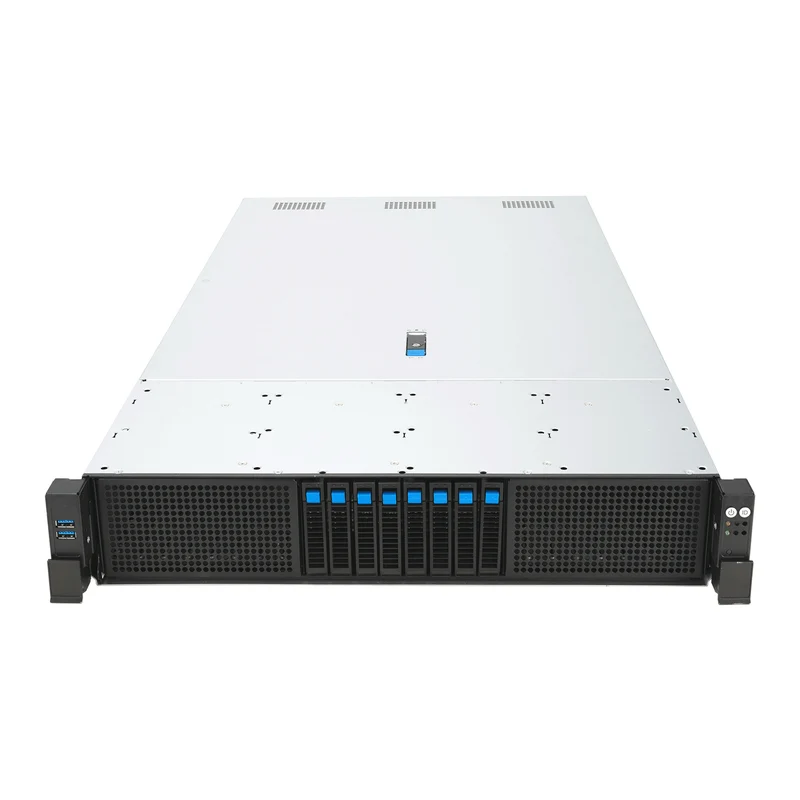

ASUS RS720-E12-RS8G Rack (2U) Black, Silver

• Extensive computing performance: Powered by Intel® Xeon® 6 Scalable processors, with 32 DDR5 RDIMM up to 6400MHz 1DPC, delivering exceptional performance and maximum efficiency across the widest range of workloads.
• Modular architecture and scalable design: Built with DC-MHS architecture, supports up to 8 NVMe drives and offers up to 10 PCIe 5.0 slots, enabling higher bandwidth requirements.
• GPU-accelerator optimization: Supports up to three dual-slot GPUs, like the NVIDIA H100 NVL, managing intensive graphical and computational tasks.
• Optimized air cooling solution: Features hot-swap fan bar design for improved maintenance and optimized airflow, combined with a two-sided PSU placement to separate heat, ensuring efficient thermal management up to TDP 350W.

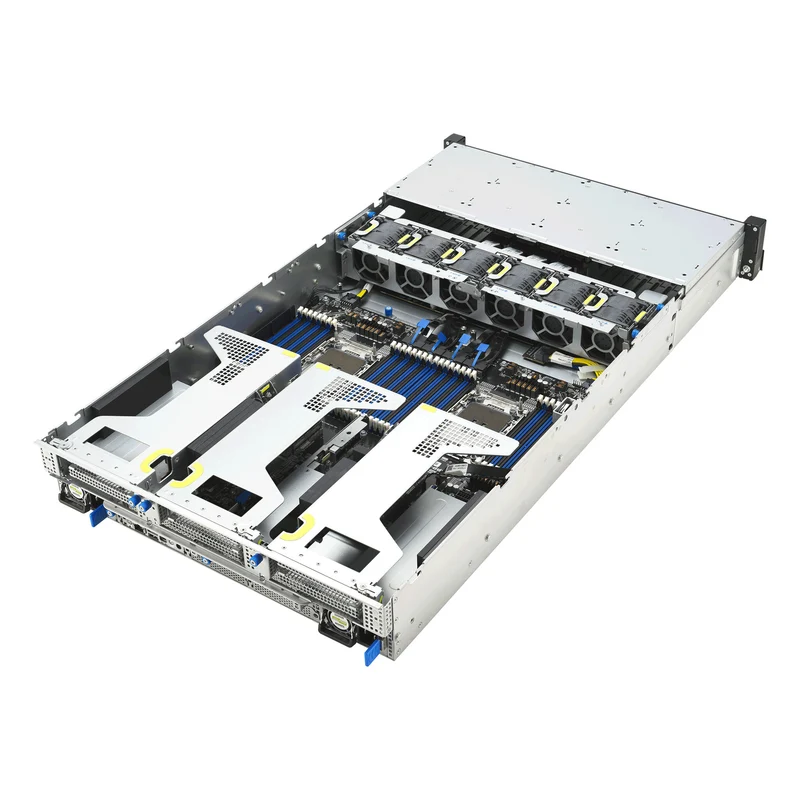

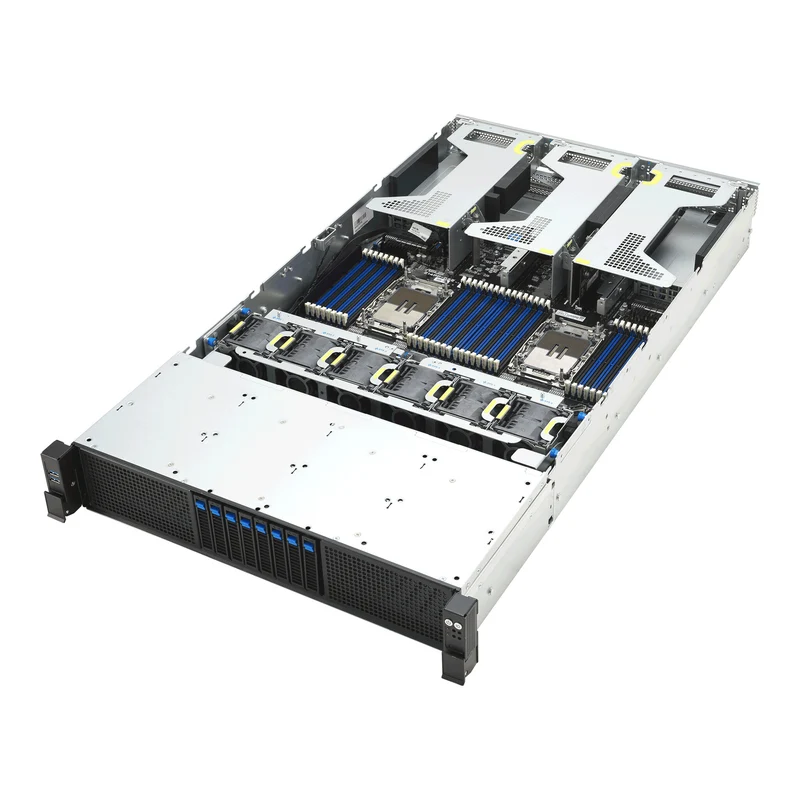

• Tool-less, easy-maintenance design: Features tool-less access, including a top-cover handle and optimized fan bar for improved cable management and easy maintenance.

Intel-based rack server for expansional workloads
ASUS RS720-E12-RS8G is a versatile and high-performance 2U server powered by dual Intel® Xeon® 6 processors, supporting up to 32 DIMMs for enhanced memory performance maximum up to 4TB and delivering exceptional efficiency across a broad range of workloads. With a modular and scalable DC-MHS architecture, RS720-E12-RS8G provide seamless integration and optimization, making them ideal for modern data centers and diverse IT environments.

Processor
Compatible processor series	Intel® Xeon®
Number of processors supported	1
Processor family	Intel® Xeon® Scalable
Processor manufacturer	Intel
Built-in processor	No

Memory
Supported RDIMM clock speeds	6400 MHz
Maximum internal memory	4 TB
Supported DIMM module capacities	16GB, 32GB, 64GB, 128GB, 256GB
Supported memory types	DDR5-SDRAM
Number of DIMM slots	32

Storage
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Storage drive sizes supported	2.5,M.2
Hot-swap HDD bays	Yes
Number of storage drives supported	8

Graphics
On-board graphics card memory	64 MB
On-board graphics card model	Aspeed AST2600

Network
Ethernet LAN	Yes

Ports & interfaces
Mini DisplayPorts quantity	1
IPMI LAN (RJ-45) port	Yes
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4

Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 slots	2
PCI Express slots version	5.0

Features
Trusted Platform Module (TPM)	Yes

Design
Number of fans	6 fan(s)
Cooling type	Active
On/off switch	Yes
LED indicators	Yes
Product colour	Black, Silver
Chassis type	Rack (2U)

Power
80 PLUS certification	80 PLUS Titanium
AC input frequency	50/60 Hz
Number of redundant power supplies supported	2
Redundant power supply (RPS) support	Yes
Power supply	3200 W

Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	20 - 90%

Weight & dimensions
Width	449 mm
Depth	830 mm
Height	88 mm
Weight	17.8 kg

Packaging data
Package weight	21.3 kg
