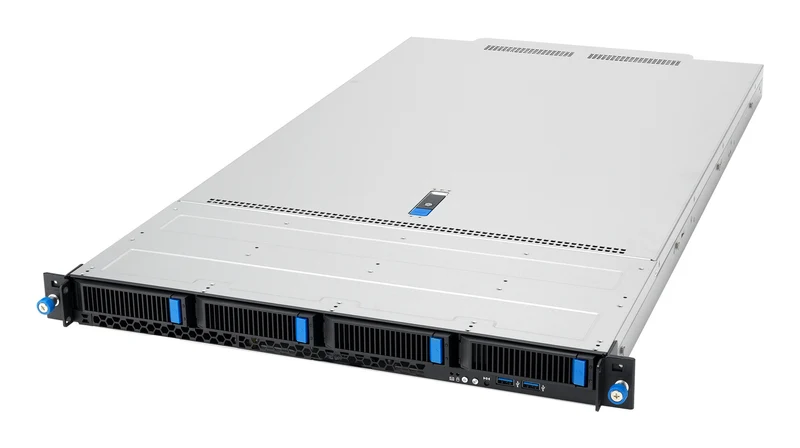

ASUS RS700A-E13-RS4U LGA 6096P Rack (1U) Black, Silver

• Performance computing for multi-tasking: Dual AMD EPYC 9005 processors with 192 Zen 5 cores, 400W TDP, and 12-channel DDR5 memory up to 6000MHz deliver exceptional performance for demanding workloads.
• Scalable storage and expansion: Modular DC-MHS architecture supports up to four front-mounted NVMe/SATA/SAS support drives and four PCIe 5.0 slots for seamless storage and system expansion.
• Flexible networking: Four PCIe 5.0 expansion slots (two OCP 3.0, two PCIe) for scalable, high-speed networking and efficient data transfer.
• Advanced memory support: Supports up to 24 DDR5 RDIMMs, running at up to 6000MHz (1DPC), ensuring high bandwidth and energy efficiency across a broad spectrum of applications.
• Tool-less, easy-maintenance design: Features tool-less access, including a top cover handle and optimized DC-SCM/OCP3.0 card for downtime decreased and easy maintenance.
• Enhanced security: PFR FPGA as Root-of-Trust solution with TPM 2.0 for hardware security and regular firmware updates to address vulnerabilities.

AMD EPYC™ 9005 dual-processor 1U server that supports up to 24 DIMM, four NVMe/SATA/SAS support storage, two PCIe® 5.0 slots and two OCP 3.0, and offers supports for a maximum TDP of up to 400W watts.

AMD-based rack server for HPC and AI workloads
ASUS RS700A-E13-RS4U is an efficient, versatile server powered by dual AMD EPYC™ 9005-series processors, delivering exceptional performance for demanding enterprise workloads. Built on the advanced 3nm Zen5/5c architecture, these processors offer up to 192 cores, 384 threads and clock speeds of up to 5GHz, making them ideal for AI/ML processing, data analytics and virtualization. RS700A-E13-RS4U is optimized for seamless integration in modern data centers, offering high efficiency and compatibility across diverse IT environments.

Processor
Number of processors supported	2
Processor family	AMD EPYC
Processor manufacturer	AMD
Processor socket	LGA 6096P
Built-in processor	No

Memory
Supported RDIMM clock speeds	6400,5600 MHz
Maximum RDIMM memory	3 TB
Maximum internal memory	3 TB
Supported DIMM module capacities	32GB, 64GB, 128GB
Supported memory types	DDR5-SDRAM
Number of DIMM slots	24

Storage
SSD form factor	M.2
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5,3.5
Number of 3.5" bays	4
Hot-swap HDD bays	Yes
Number of storage drives supported	6

Graphics
On-board graphics card memory	64 MB
On-board graphics card model	Aspeed AST2600

Ports & interfaces
Mini DisplayPorts quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4

Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	2

Design
Certification	BSMI, CE, CB, RCM, FCC(Class A), ISED
Number of fans	8 fan(s)
Cooling type	Active
LED indicators	Yes
Product colour	Black, Silver
Chassis type	Rack (1U)

Power
80 PLUS certification	80 PLUS Titanium
Input current	12 A
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Number of redundant power supplies supported	2
Redundant power supply (RPS) support	Yes
Power supply	2000 W

Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	20 - 90%

Weight & dimensions
Width	821.7 mm
Depth	483 mm
Height	43.2 mm
Weight	13.8 kg

Packaging data
Package weight	16.7 kg
