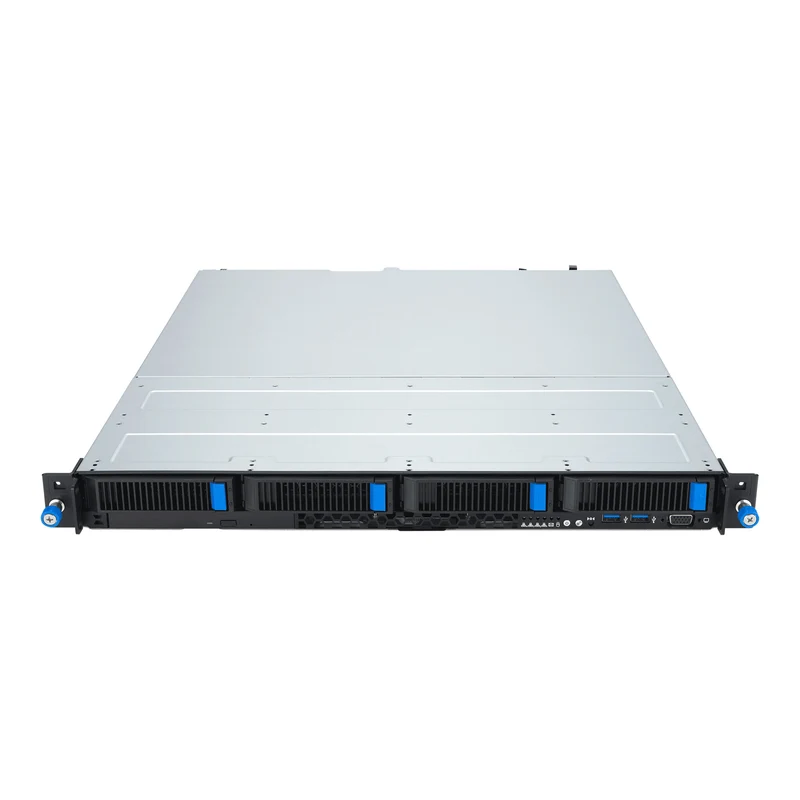

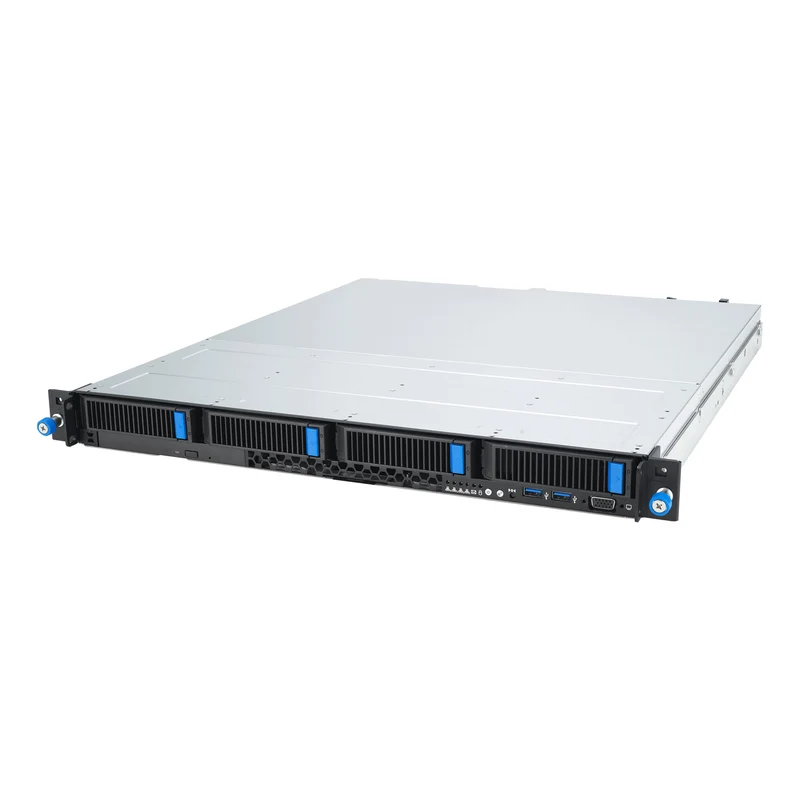

ASUS RS300-E12-RS4 Intel C262 LGA 1700 Rack (1U) Silver

• Powered by eight-core Intel Xeon E-2400-series and Intel Xeon 6300 series processor with support for up to 95 W TDP
• Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage
• Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth
• High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
• Dual Intel I210-AT gigabit Ethernet with teaming support
• Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• Chassis-intrusion for enhanced physical security

Intel Xeon E-2400 processors/Intel Xeon 6300 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.

Processor
Intel Xeon series	6300
Number of processors supported	1
Processor socket	LGA 1700
Motherboard chipset	Intel C262

Memory
Memory channels	Dual-channel
Supported RDIMM clock speeds	4400,4000,3600 MHz
Maximum internal memory	128 GB
Supported DIMM module capacities	8GB, 16GB, 32GB
Supported memory types	DDR5-SDRAM
Number of DIMM slots	4

Storage
Supported storage drive interfaces	M.2, Serial ATA III, Serial Attached SCSI (SAS)
Supported storage drive types	HDD & SSD
Storage drive sizes supported	3.5"
Number of 3.5" bays	4
Hot-swap HDD bays	Yes
Number of storage drives supported	8

Network
Ethernet LAN	Yes

Ports & interfaces
Number of SATA III connectors	8
COM ports quantity	1
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Expansion slots
PCI Express x16 (Gen 5.x) slots	1

Design
LED indicators	Power, Reset, HDD
Product colour	Silver
Chassis type	Rack (1U)

Power
80 PLUS certification	80 PLUS Platinum
Power supply	450 W

Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	20 - 90%

Weight & dimensions
Width	497 mm
Depth	439.5 mm
Height	44 mm
Weight	15.2 kg
