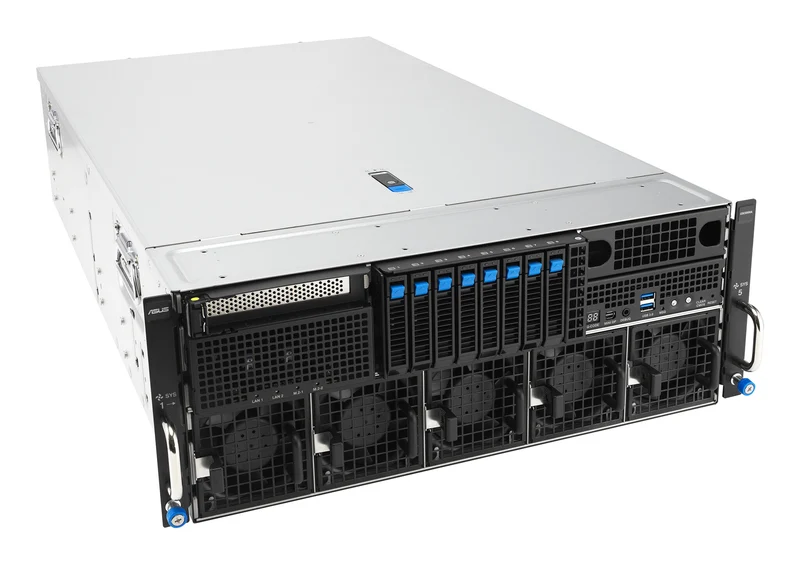

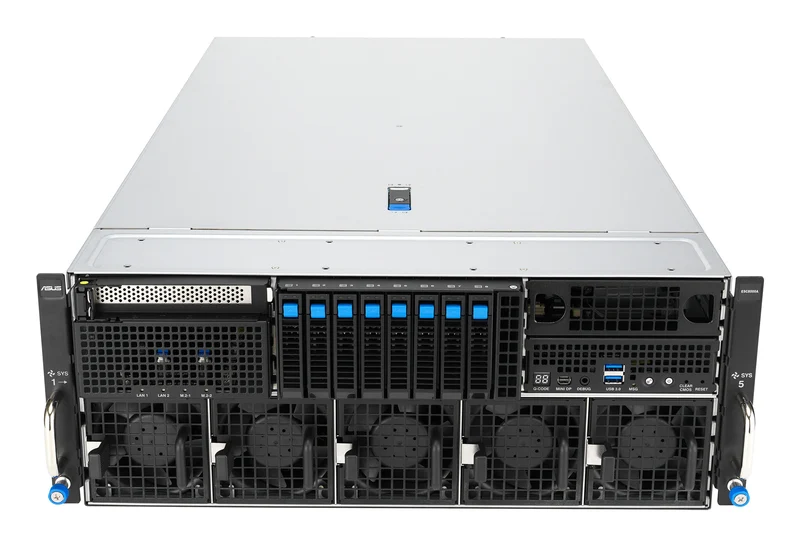

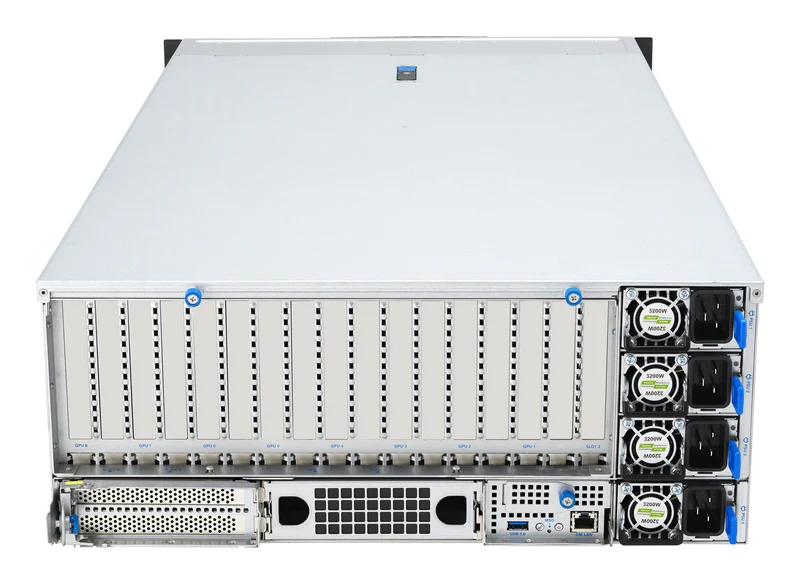

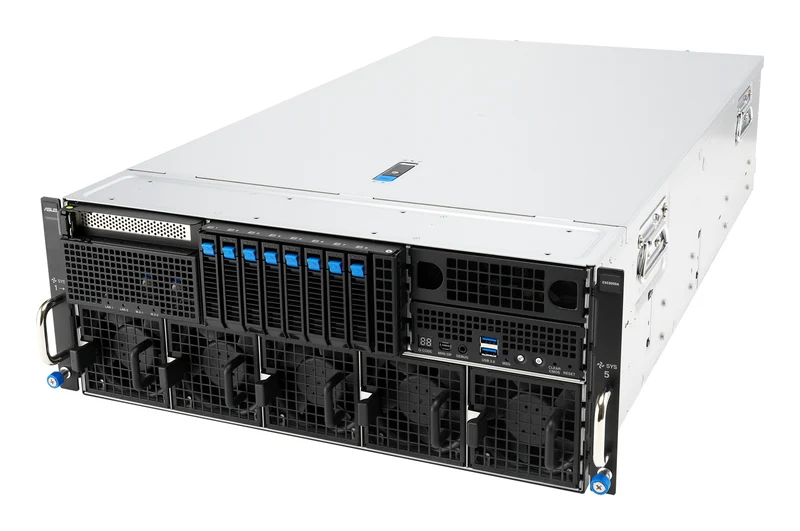

ASUS ESC8000A-E13 LGA 6096 Rack (4U) Silver

• High-performance server configuration: Equipped with AMD EPYC 9005 processors featuring 192 Zen 5c cores, 12-channel DDR5 memory up to 6400MHz and a maximum TDP of 500 watts per socket.
• Direct GPU support: Designed as a high-density 4U server capable of housing eight dual-slot NVIDIA H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, each supporting up to 600 watts.
• Optimized connectivity: Offers two PCIe 5.0 slots for high-bandwidth NICs and DPUs, connected directly to CPU to reduce latency.
• Storage flexibility: Includes options for hardware RAID function support, configurations with additional support for up to six 2.5” U.2 NVMe drives
• Efficient maintenance: Features ASUS-exclusive toolless design for streamlined maintenance and maximum efficiency.
• Advanced management: Includes ASUS Control Center IT-management software and a hardware-level Root-of-Trust solution for enhanced security and control.

AMD EPYC™ 9005 dual-processor 4U server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, up to 24 DIMM, two PCIe®5.0 slots and up to six U.2 NVMe drives.

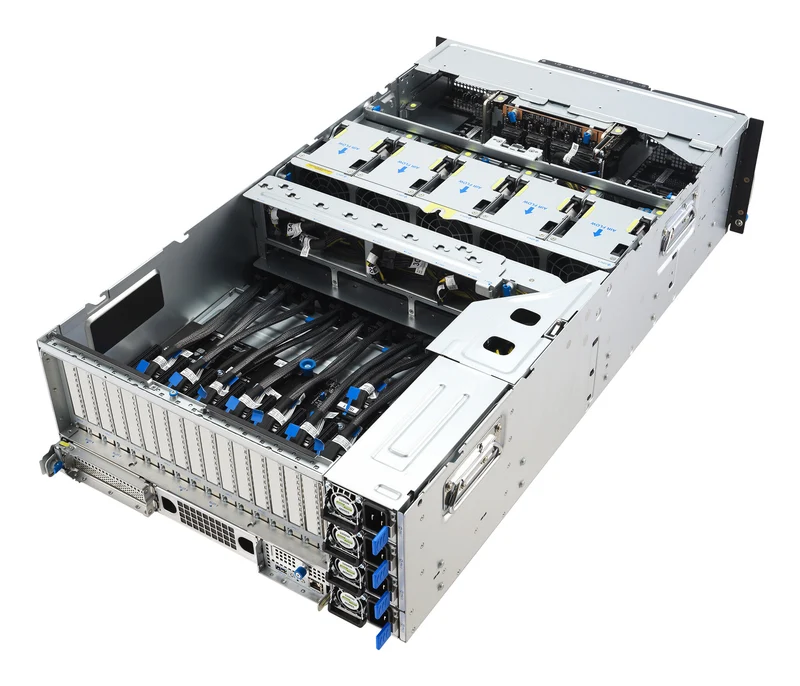

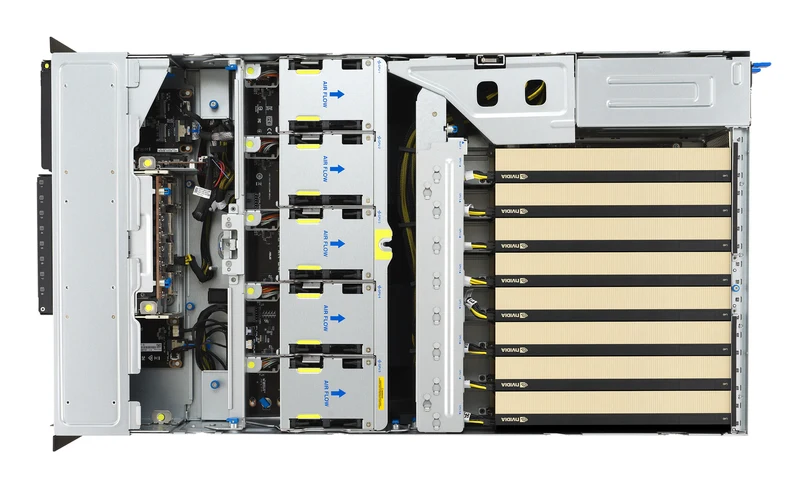

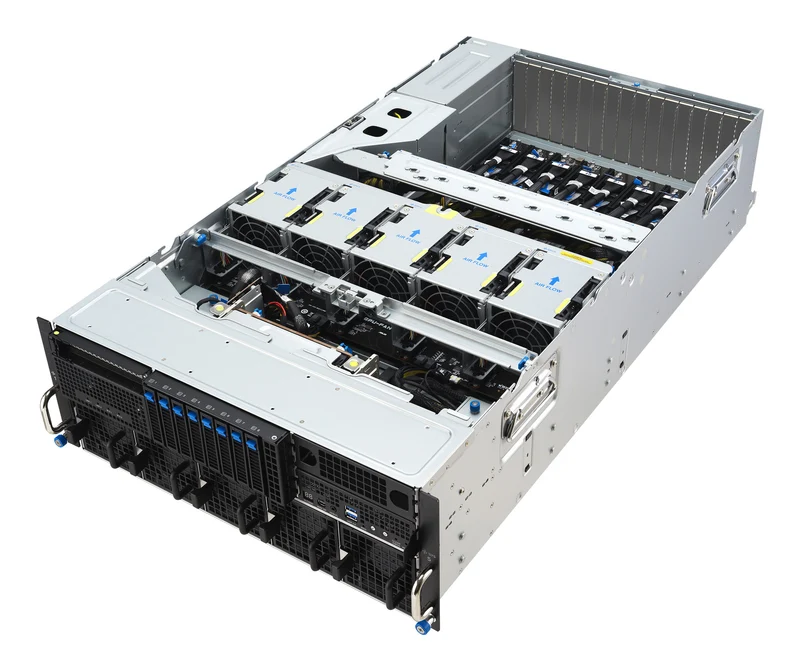

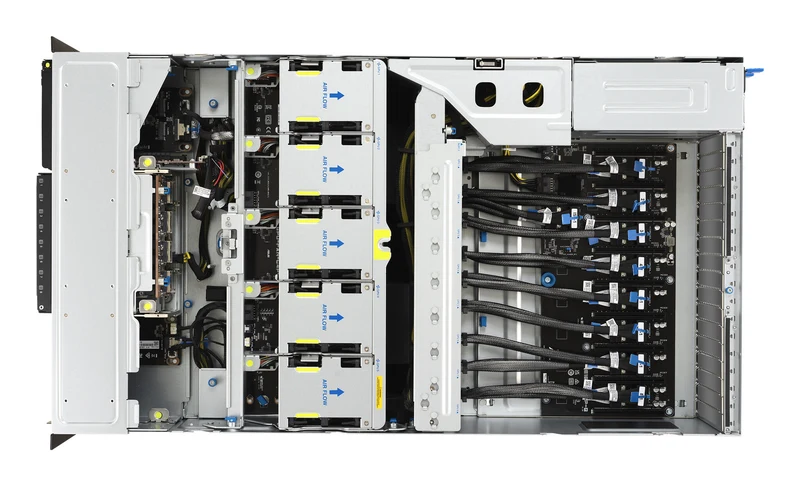

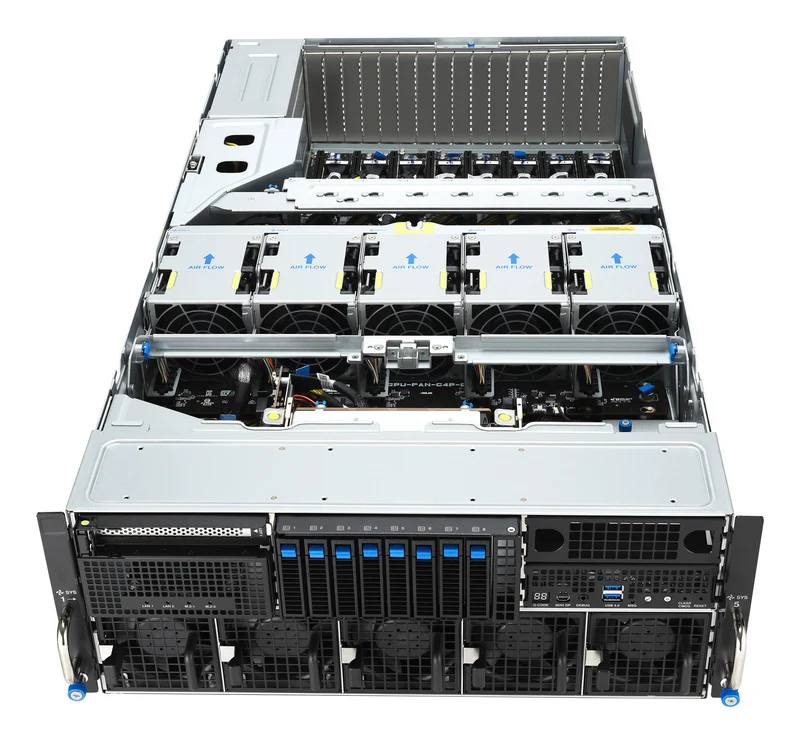

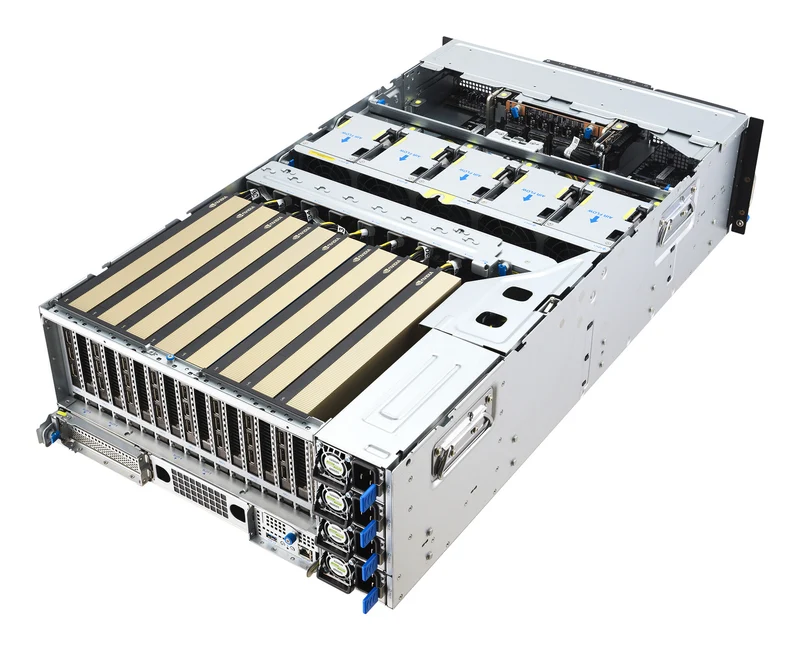

Eight dual-slot GPUs in a high-density 4U compute server
ASUS ESC8000A-E13, powered by AMD EPYC™ 9005 processors, delivers outstanding performance with top-tier GPUs, faster GPU interconnects, and a high-bandwidth fabric. This robust server directly supports up to eight dual-slot GPUs, available in both active and passive configurations, and provides flexible scalability through options like the NVIDIA® NVLink® Bridge. This setup ensures seamless scaling and performance optimization, making ESC8000A-E13 a perfect solution for handling demanding AI training and inferencing workloads.

Processor
Compatible processor series	AMD EPYC 9005
Number of processors supported	2
Processor family	AMD EPYC
Processor manufacturer	AMD
Processor socket	LGA 6096
Built-in processor	No

Memory
Supported RDIMM clock speeds	6400,5600 MHz
Maximum internal memory	3 TB
Supported DIMM module capacities	16GB, 32GB, 64GB, 128GB
Supported memory types	DDR5-SDRAM
Number of DIMM slots	24

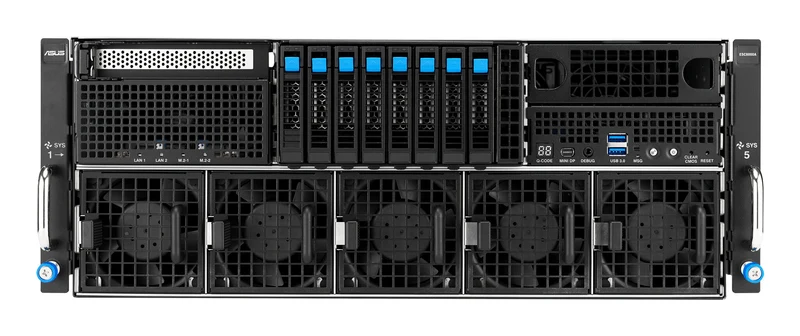

Storage
Storage drive sizes supported	2.5"
Hot-swap HDD bays	Yes
Number of storage drives supported	8

Ports & interfaces
Mini DisplayPorts quantity	1
IPMI LAN (RJ-45) port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3

Expansion slots
PCI Express x16 (Gen 5.x) slots	11

Design
Certification	BSMI, CB, CE, FCC(Class A), RCM
LED indicators	Yes
Product colour	Silver
Chassis type	Rack (4U)

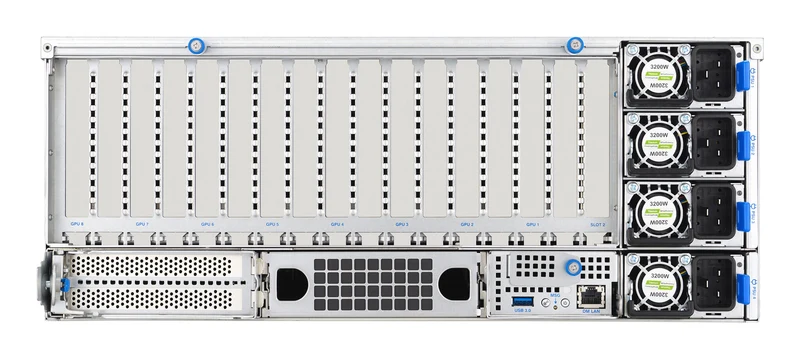

Power
80 PLUS certification	80 PLUS Titanium
AC input frequency	50/60 Hz
AC input voltage	220 - 240 V
Number of redundant power supplies supported	4
Redundant power supply (RPS) support	Yes
Power supply	3200 W

Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	20 - 90%

Weight & dimensions
Width	800 mm
Depth	439.5 mm
Height	175 mm
Weight	42 kg

Packaging data
Package weight	44.2 kg
