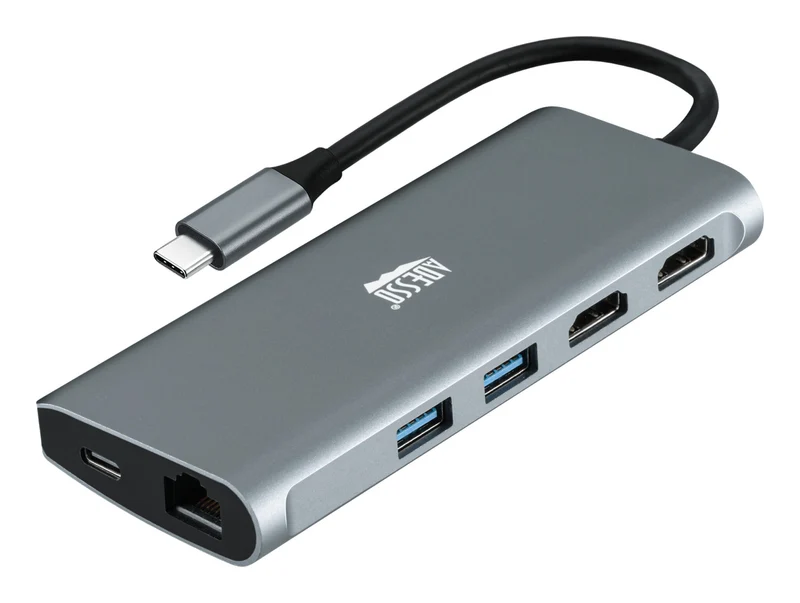

Adesso AUH-4040 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey

• Wired
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• USB Power Delivery (USB PD)
• Ethernet LAN 10,100,1000 Mbit/s
• MicroSD (TransFlash), SD
• Plug and Play

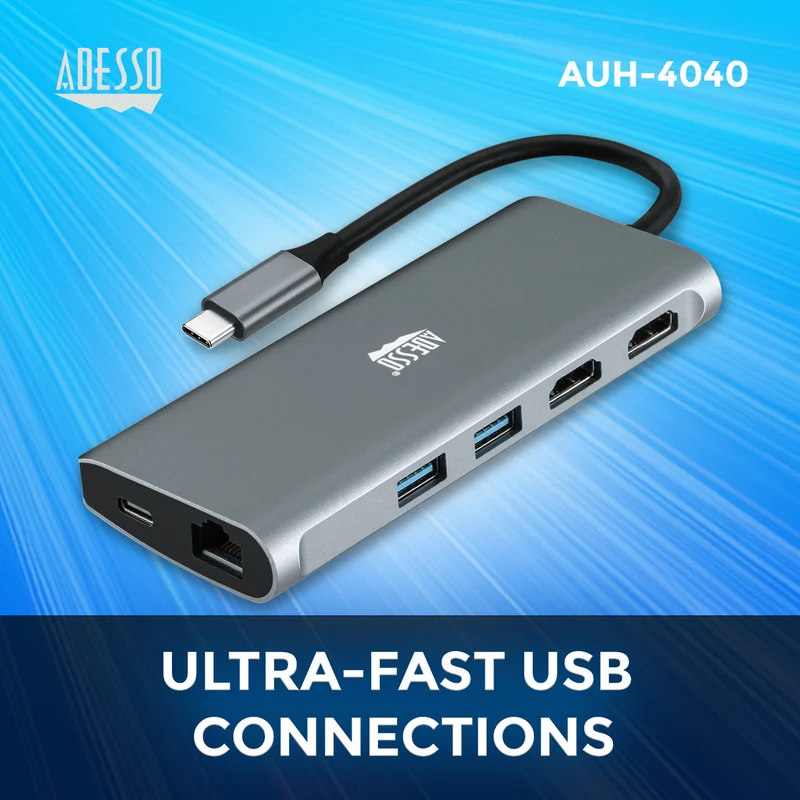

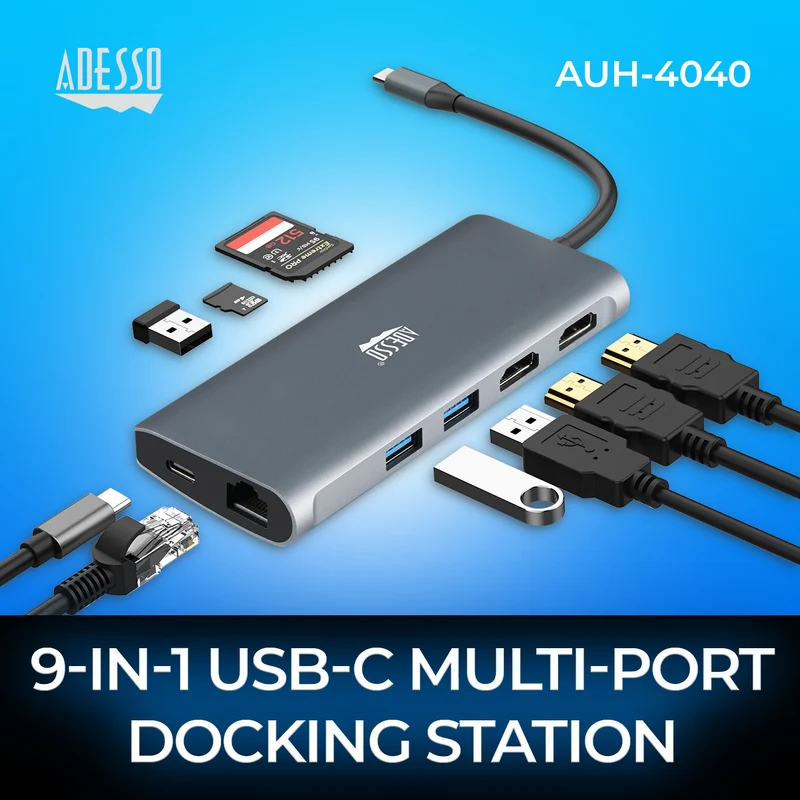

Expand your laptop’s connection port with this USB Type-C multiport docking station. It has dual HDMI ports for transmitting 8K content to your external monitor and can also charge other devices. This USB Type-C multi-port docking station has 3 USB 3.0 superspeed ports, SD and TF card reader slots, and 1 RJ45 Port.

TYPE C Connection
Compact and lightweight, with user-friendly non-slip design for easier plugging in and unplugging. Premium aluminum casing for better heat dissipation and higher data transfer efficiency. Connects snugly into the USB-C port on your device, providing better signal transfer protection.

8K HDMI Output
It supports up to 8K resolutions @ 30 Hz and dual two 4K resolutions @ 30 Hz with no transmission loss and delay. You could enjoy a cinema-like experience easily at home.

Thunderbolt 3 Compatible
Not all USB-C interfaces are compatible, ONLY works for USB-C 3.1 or Thunderbolt 3 port interfaces that support “DisplayPort Alternate Mode

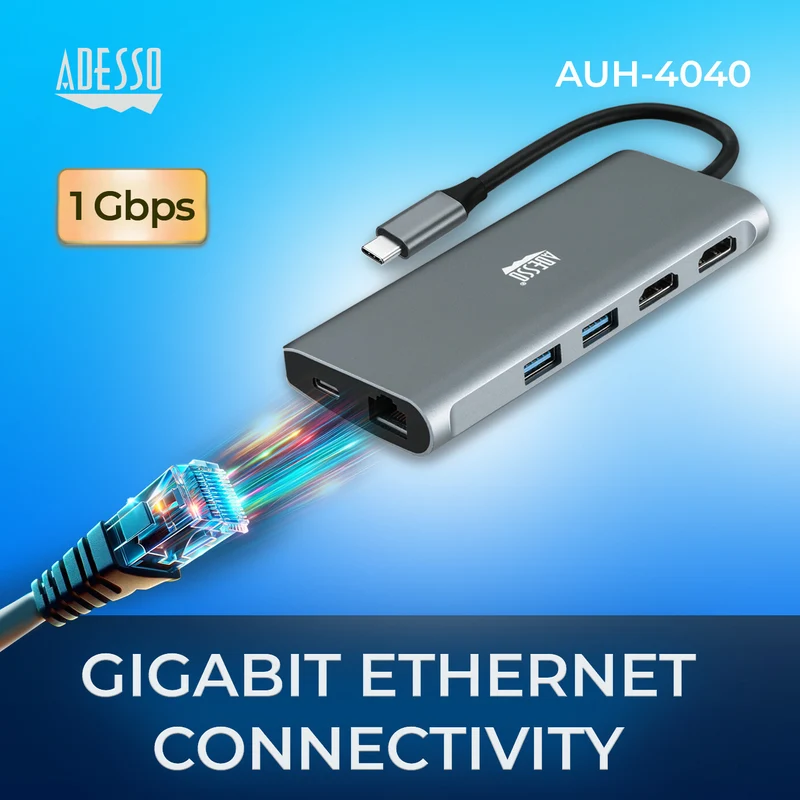

Fast and Stable Internet Connection
Equipped with an RJ-45 port, you can seamlessly connect your laptop to become hard-wired for a fast and stable connection to your internet up to 1000Mbps.

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Power Delivery revision	3.0
HDMI ports quantity	2
Microphone in	No

Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Performance
Product colour	Grey
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	5 Gbit/s
HD type	8K Ultra HD
Maximum digital resolution	7680 x 4320 pixels
Maximum refresh rate	60 Hz
Housing material	Aluminium
Plug and Play	Yes
Country of origin	Taiwan
Certification	TAA

Power
Power source type	USB
Power connector	USB Type-C
Power cable length	0.15 m

Software
Windows operating systems supported	Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11
Mac operating systems supported	Yes
Mobile operating systems supported	Android

Weight & dimensions
Width	51 mm
Depth	125 mm
Height	16 mm
Weight	95 g

Packaging data
Quantity per pack	1 pc(s)
Package width	89.9 mm
Package depth	30 mm
Package height	154.9 mm
Package weight	96.4 g

Packaging content
Quick start guide	Yes

Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS

• leaflet
• Quick Start Guide
