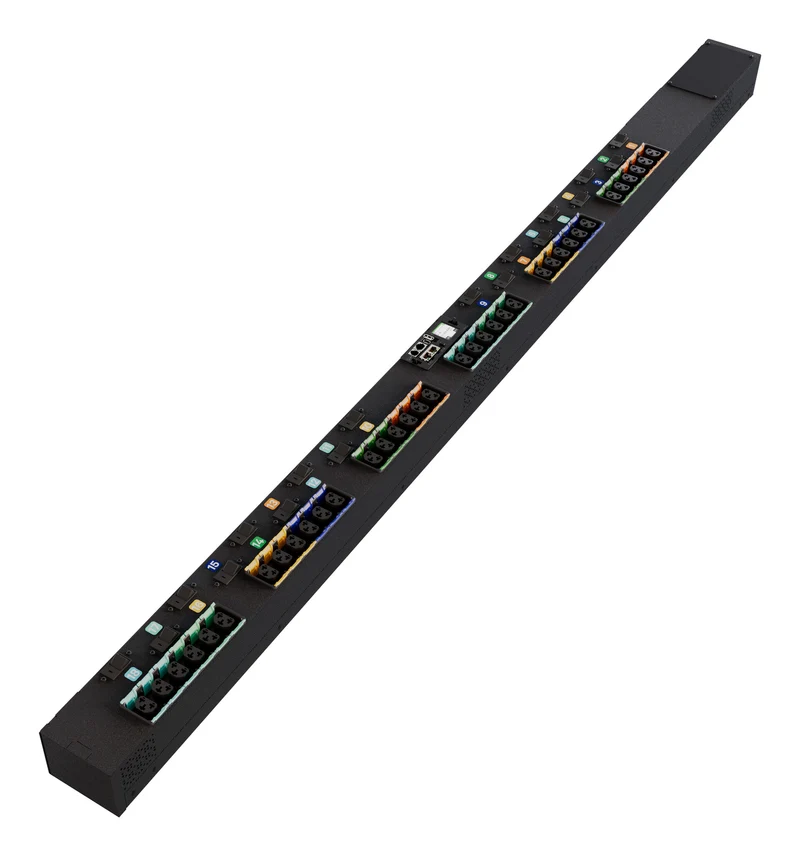

Vertiv PowerIT rack power distribution unit, 57.6kW, hardwired input plug, TAA Compliance, RoHS, China RoHS, UL/CE dual listed

• Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
• Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
• Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
• Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
• Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase

The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4UA0A1 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a hardwired input plug providing 57.6kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.

Design
Product colour	Black
Mounting	Vertical
Rack capacity	0U
Type	Three-phase
PDU types	Monitored

Ports & interfaces
USB ports quantity	1
Serial ports quantity	1
AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	36 AC outlet(s)

Management features
Management platform	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Power
Power protection features	Over current
Maximum power	57600 W
Maximum current	80 A
Nominal input voltage	240 - 415 V

Certificates
Certification	UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1
Compliance certificates	China RoHS, RoHS, Trade Agreements Act (TAA)

Weight & dimensions
Weight	8.62 kg
Height	1682.8 mm
Depth	76.2 mm
Width	96.5 mm

Packaging data
Package height	177.8 mm
Package depth	2209.8 mm
Package width	279.4 mm
Package weight	8.62 kg

General
Product family	PowerIT

Logistics data
Country of origin	United States
