Vertiv PowerIT rack power distribution unit, 14.4kW, 1P+N+E (IP44), TAA Compliance, RoHS, China RoHS, UL/CE dual listed

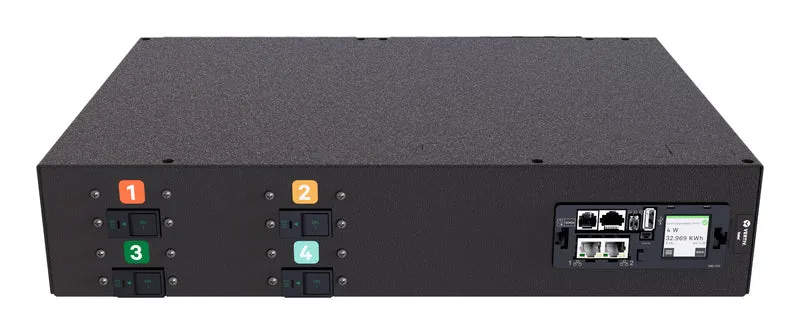

• Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
• Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
• Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
• Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
• Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase

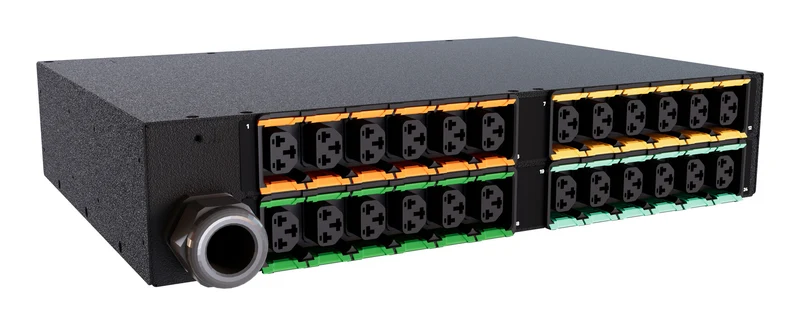

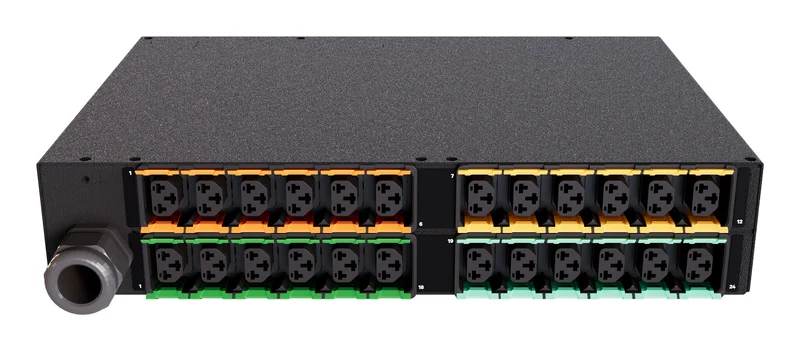

The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4U62A0 is an upgradeable, 60/63A, 240V, 2U, horizontal rPDU with input monitoring. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 1P+N+E (IP44) plug providing 14.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.

Design
Product colour	Black
Mounting	Horizontal
Rack capacity	2U
Type	Single-phase
PDU types	Monitored

Ports & interfaces
USB ports quantity	1
Serial ports quantity	1
AC outlet types	C13 coupler, C19 coupler
Power plug	Type E / Type F
AC outlets quantity	24 AC outlet(s)

Features
Cable length	3.048 m

Management features
Management platform	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Power
Power protection features	Over current
Maximum power	14400 W
Maximum current	63 A
Nominal input voltage	240 V

Certificates
Certification	UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1
Compliance certificates	China RoHS, Trade Agreements Act (TAA), RoHS

Weight & dimensions
Weight	8.62 kg
Height	88.4 mm
Depth	304.8 mm
Width	434.7 mm

Packaging data
Package height	101.6 mm
Package depth	660.4 mm
Package width	762 mm
Package weight	8.62 kg

General
Product family	PowerIT

Logistics data
Country of origin	United States
