Vendeur: Ubiquiti Networks

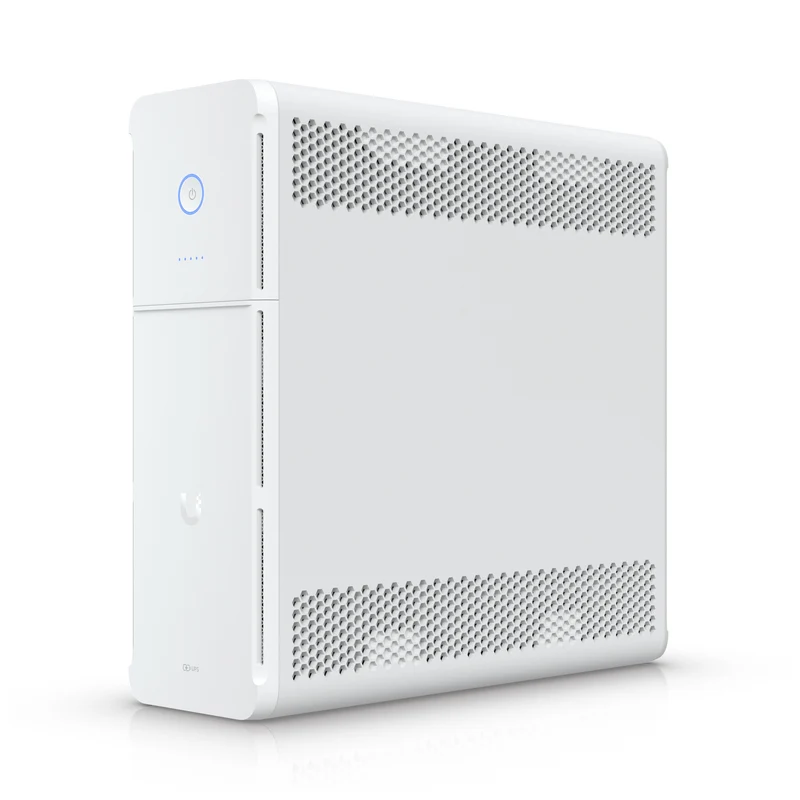

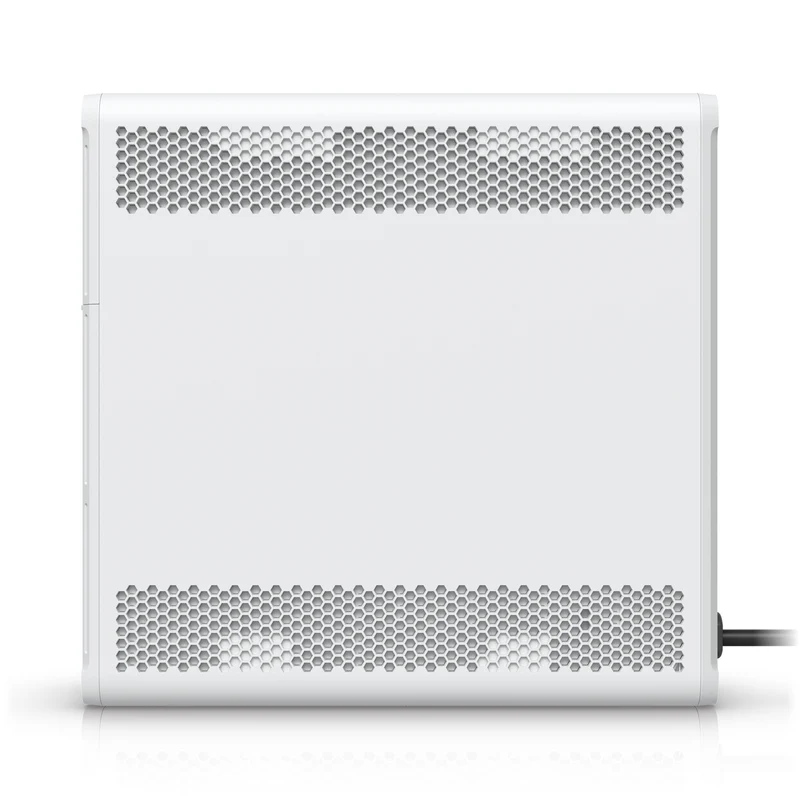

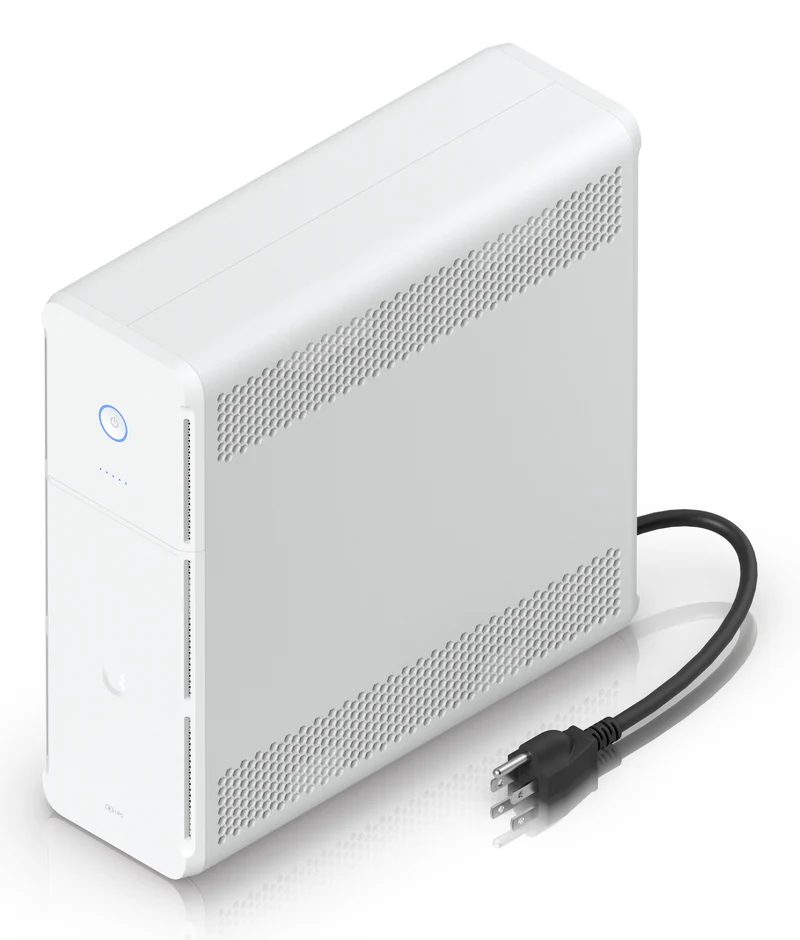

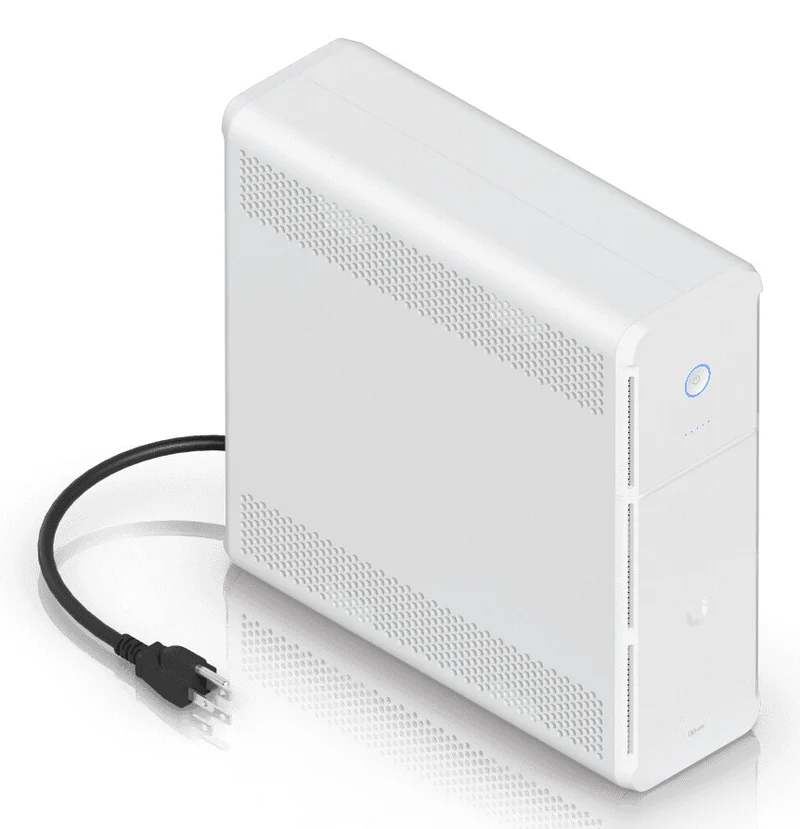

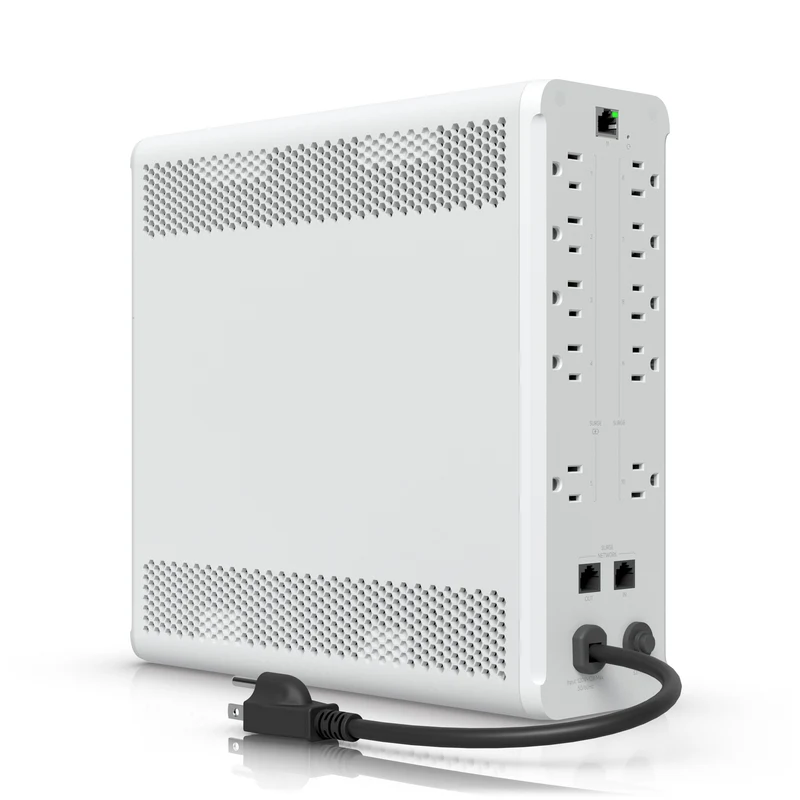

Ubiquiti UPS-Tower uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 10 AC outlet(s)

190,21 €117,17 €Promotion
Quantité

Détails du produit

  • Line-Interactive
  • 1 kVA 600 W
  • Waveform: Sine
  • 10 AC outlet(s)
  • Lead-Acid 12 V 9 Ah
  • Desktop White

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

Features
UPS topology Line-Interactive
Output power capacity 1 kVA
Output power 600 W
Waveform Sine
Input operation voltage (min) 89 V
Input operation voltage (max) 145 V
Input frequency 50/60 Hz
Output frequency 50/60 Hz
Output voltage regulation 10%
Transfer time (Line Mode to Battery Mode) 10 ms
Overload capacity (5 minute) 110%
Surge protection Yes
Power protection features Over voltage, Overload, Short circuit
Ports & interfaces
AC outlet types C13 coupler, C14 coupler
Power plug NEMA 5-15P
AC outlets quantity 10 AC outlet(s)
Ethernet LAN (RJ-45) ports 3
Battery
Battery technology Lead-Acid
Battery capacity 9 Ah
Battery voltage 12 V
Number of batteries included 1 pc(s)
Typical backup time at full load 2 min
Typical backup time at half load 7 min
Battery recharge time 8 h
Hot-swap battery Yes
Battery level indicator Yes
Design
Form factor Desktop
Product colour White
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Control type Buttons
LED indicators Status
International Protection (IP) code IP20
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Packaging content
Cables included Input power cable
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA), UL
Weight & dimensions
Width 99 mm
Depth 288 mm
Height 280.5 mm
Weight 8.17 kg
Other features
Nominal input voltage 120 V
Nominal output voltage 120 V
  • manual pdf
