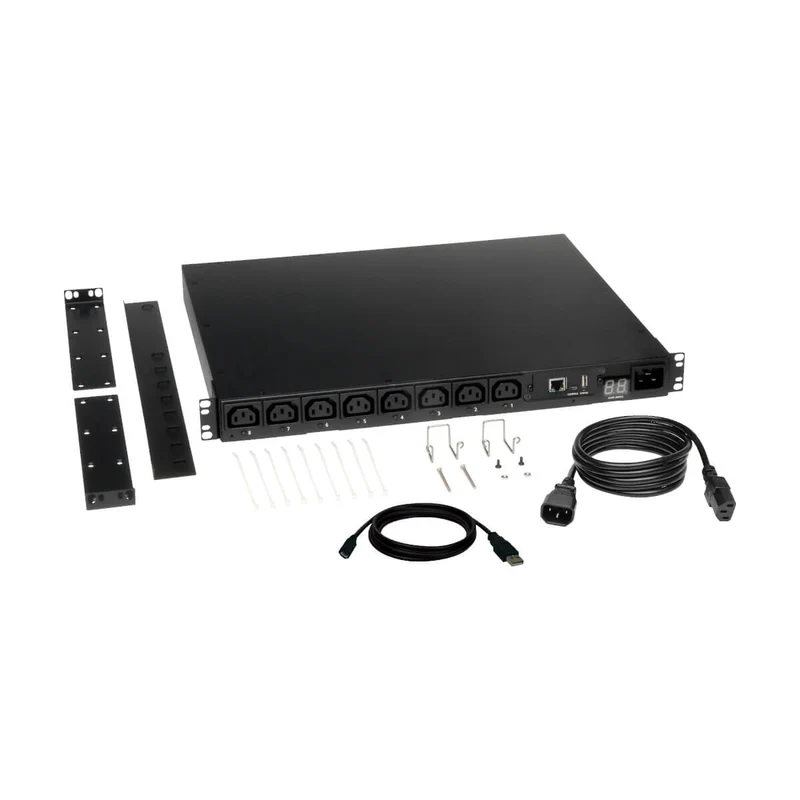

Tripp Lite PDUMH15HVNET 2.5kW Single-Phase 208/230V Switched PDU - LX Platform, 8 C13 Outlets, C14 Input 2m Cord, 1U Rack-Mount, TAA

• Switched 10/12A 208/230V PDU; 1U horizontal rackmount
• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• Visual current meter; reversible housing
• C14 inlet; 6.5ft / 2m C14 power cable included
• 8 C13 switched outlets with cord retention brackets
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• Temperature, humidity and contact-closure monitoring options
• TAA Compliant

208/230V Switched Power Distribution Unit / rack PDU (rPDU) with built-in web/network interface (12A 208V and 10A at 230V)
C14 power inlet accepts a wide variety of worldwide input cord options

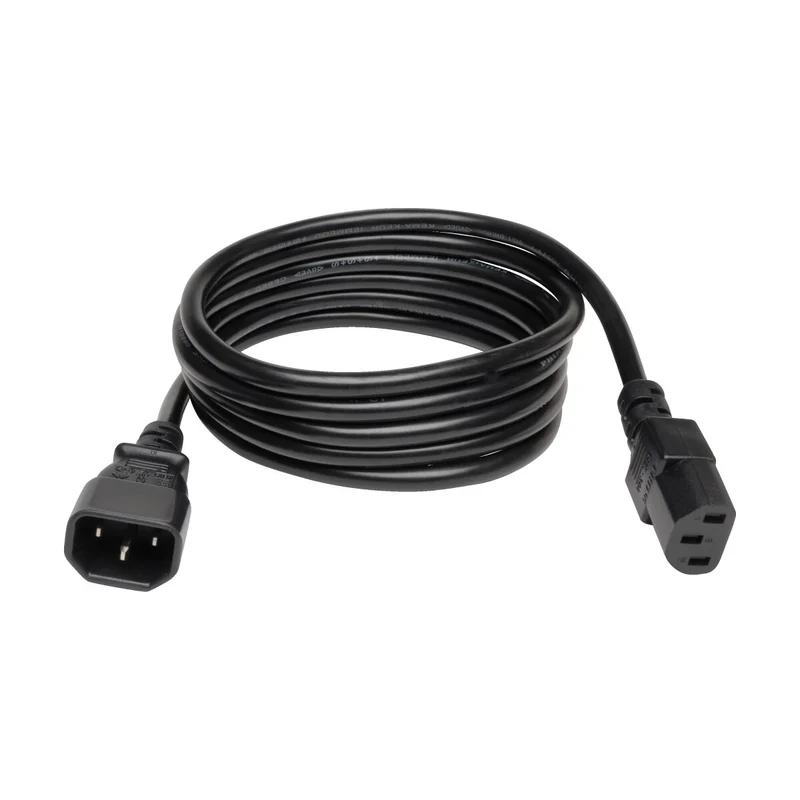

Includes 6.5 ft. / 2m C14 cable
1U horizontal rackmount form factor
8 switched C13 outlets
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
In-rack environmental reporting with optional temperature, humidity and contact-closure sensor options
10/100 Mbps auto-sensing

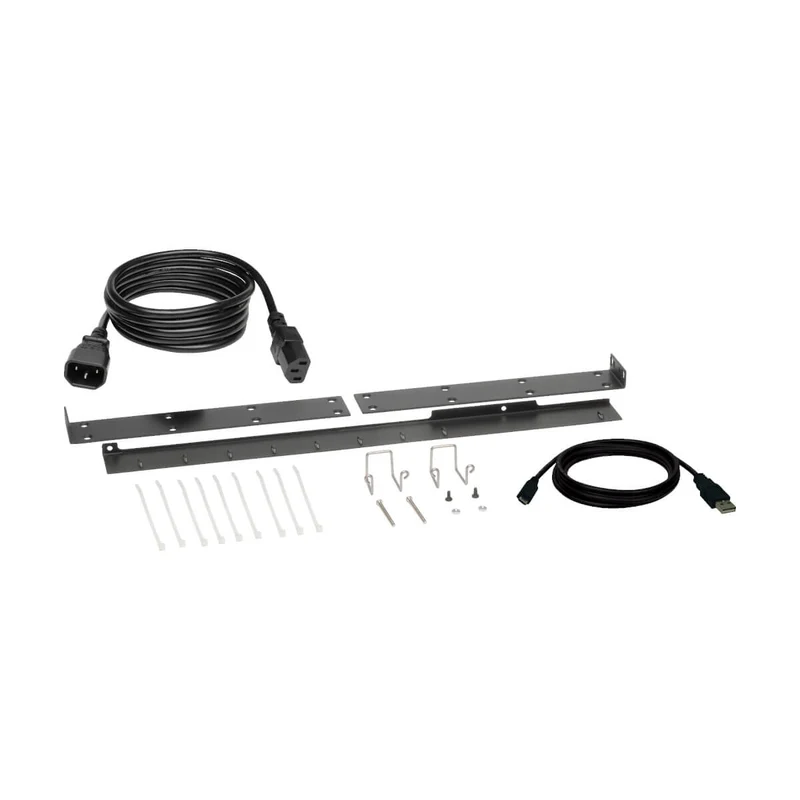

Included cord retention brackets keep vital network equipment plugged in and continuously powered

Design
PDU types	Switched
Rack capacity	1U
Mounting	Horizontal
Housing material	Metal
Product colour	Black
Display	LCD

Ports & interfaces
AC outlets quantity	8 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler

Features
LED indicators	Yes
Cable length	2 m

Power
Nominal input voltage	200-240 V
AC input frequency	50 - 60 Hz
Maximum current	15 A
Nominal output voltage	200-240 V

Certificates
Compliance certificates	RoHS
Certification	UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950)

Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 3000 m

Weight & dimensions
Width	439 mm
Depth	376 mm
Height	28.7 mm
Weight	4.04 kg

Packaging data
Package weight	5.99 kg
Package width	525.8 mm
Package depth	584.2 mm
Package height	144.8 mm

Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
