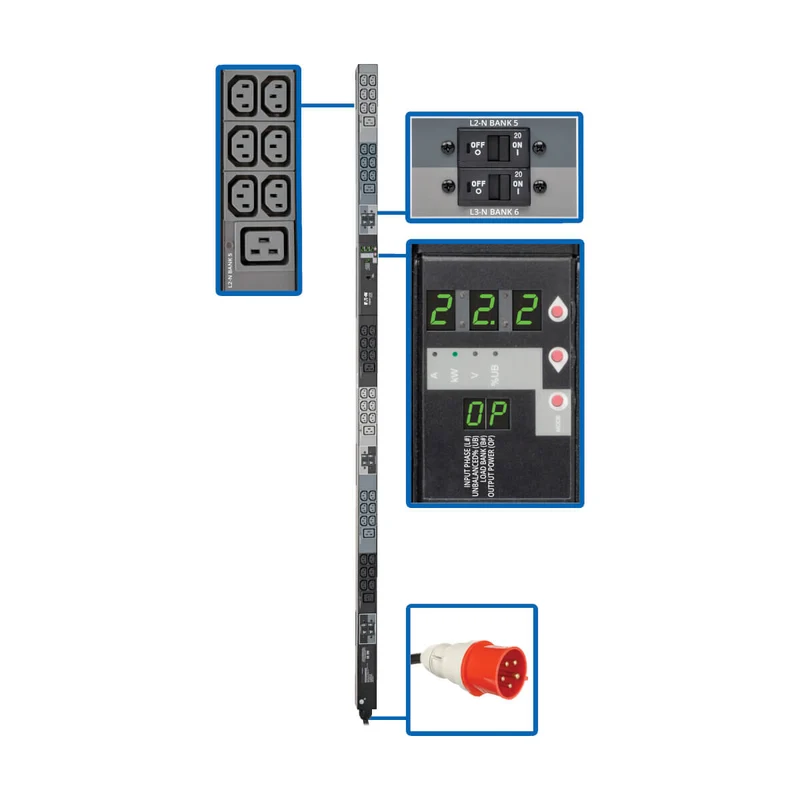

Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA

• Local metered 22.2kW 3 Phase 360-415V input 208-240V output PDU
• Visual meter reports output amps per bank, total kW and input voltage
• IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. (1.83 m) line cord
• 42 208-240V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves; Compatible with Eaton Tripp Lite power cords
• 0U Vertical Rackmount with Toolless button-mount installation
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

22.2kW 3 phase 360-415V input, 208-240V output Local Metered Power Distribution Unit / rack PDU (rPDU)

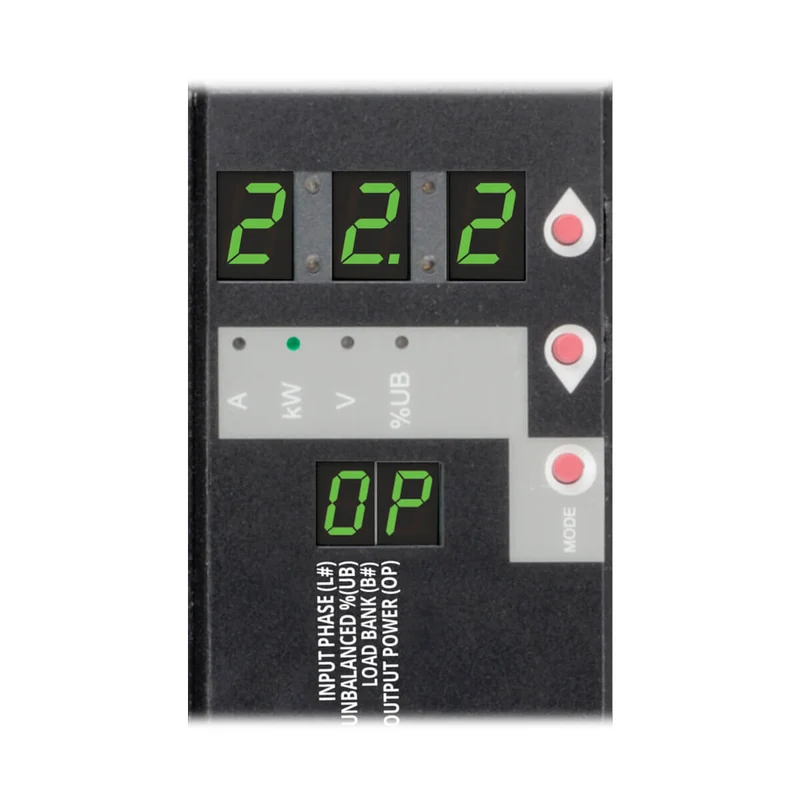

Visual display with scroll function enables selection of breakered load banks 1-6 for output current reporting in amps, total kW output and PDU input voltage
Attached IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. / 1.8m line cord
0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

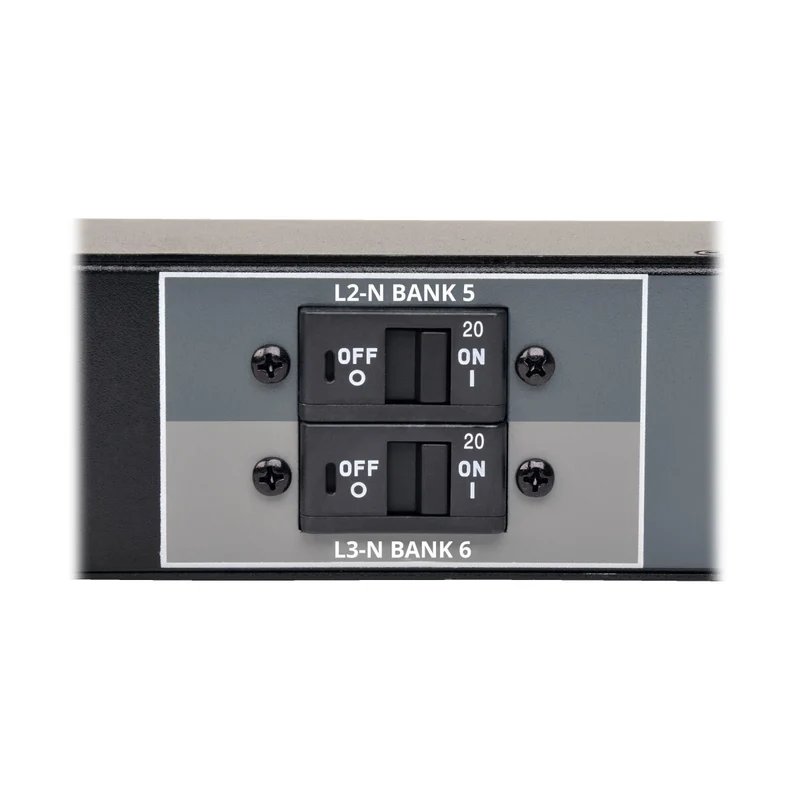

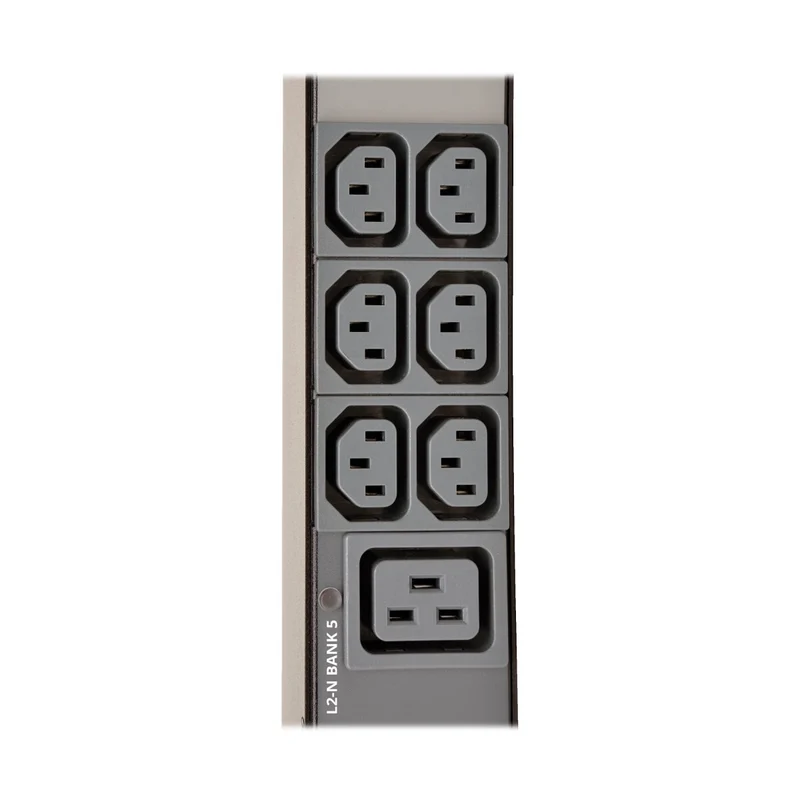

42 total 208-240V outlets (36 C13, 6 C19) arranged in 6 separately breakered single phase output load banks
Included cord retention sleeves keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Design
PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Housing material	Metal
Product colour	Black
On/off switch	Yes

Ports & interfaces
AC outlets quantity	42 AC outlet(s)
Power plug	IEC309
AC outlet types	C13 coupler, C19 coupler
Master AC outlets quantity	36

Features
LED indicators	Yes
Cable length	1.83 m

Power
Nominal input voltage	380-400 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	200-240 V
Maximum total current draw per phase	16 A
Power protection features	Overload
Maximum power	23000 W

Certificates
Compliance certificates	RoHS
Certification	Tested to CE (IEC 60950-1, EN55022, EN55024), EN Class A (Emissions), TAA Compliant

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m

Weight & dimensions
Width	55.1 mm
Depth	63.2 mm
Height	1778 mm
Weight	6.48 kg

Packaging data
Package weight	9.3 kg
Package width	150 mm
Package depth	175 mm
Package height	1945 mm

Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
