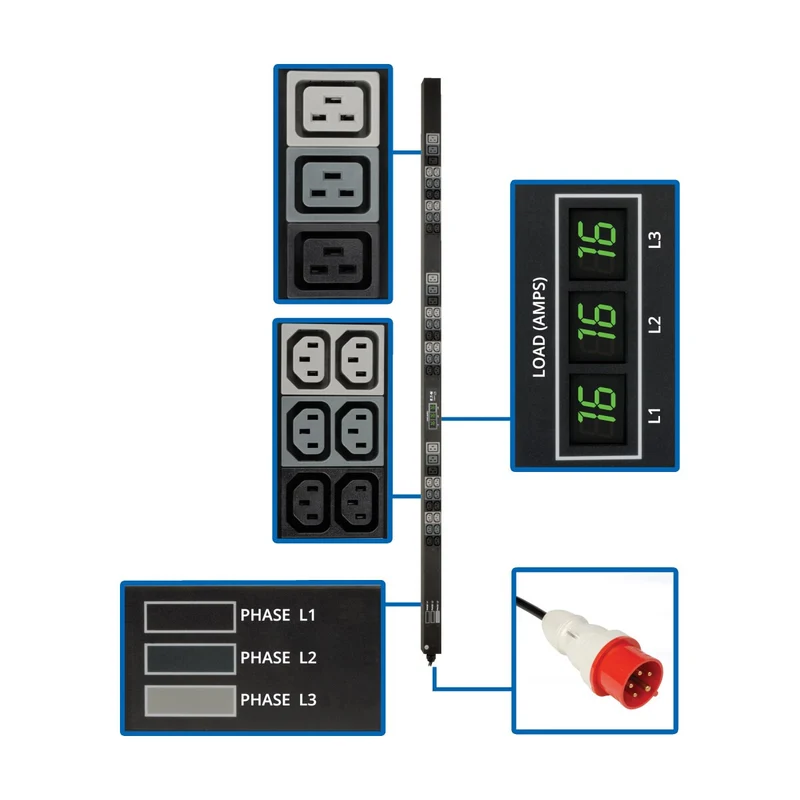

Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical

• Local metered 11.5kW 3 Phase 360-415V input / 208-240V output PDU

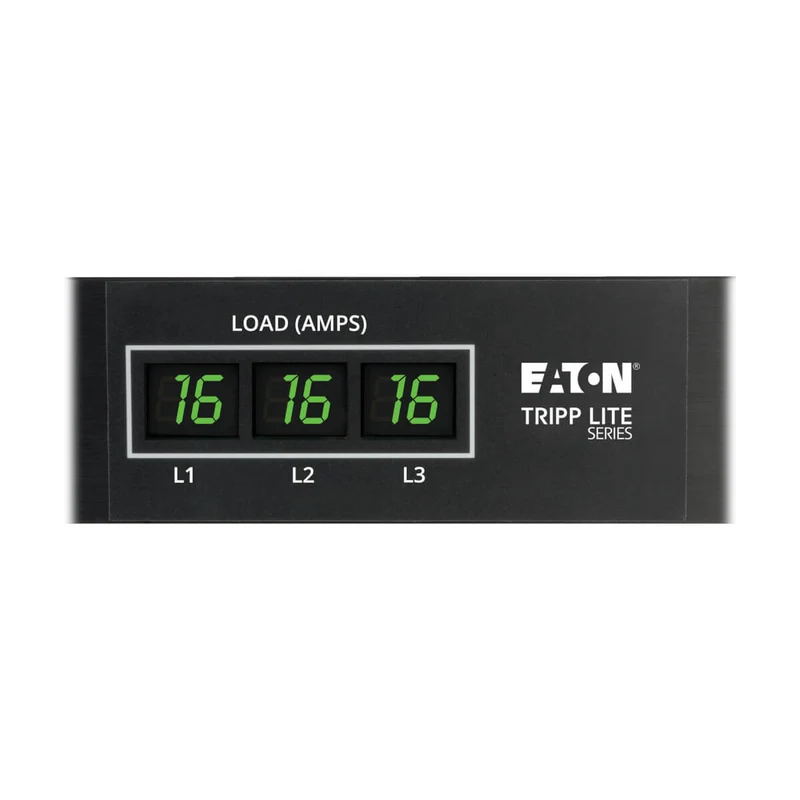

• Set of 3 digital meters reports output load level per phase in amps
• 70in / 1778mm 0U vertical format, toolless button-mount installation
• IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord
• 36 C13 and 9 C19 single phase outlets; Included cord retention brackets

11.5kW Local Metered Power Distribution Unit / rack PDU (rPDU)
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection

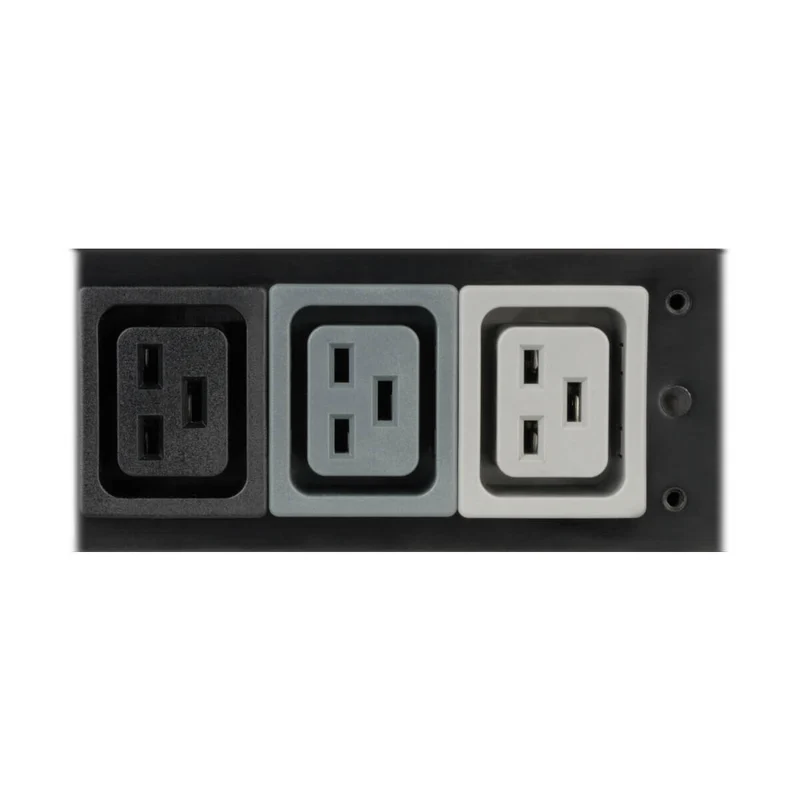

208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported
Outlets are arranged in 3 local metered 15 outlet load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered

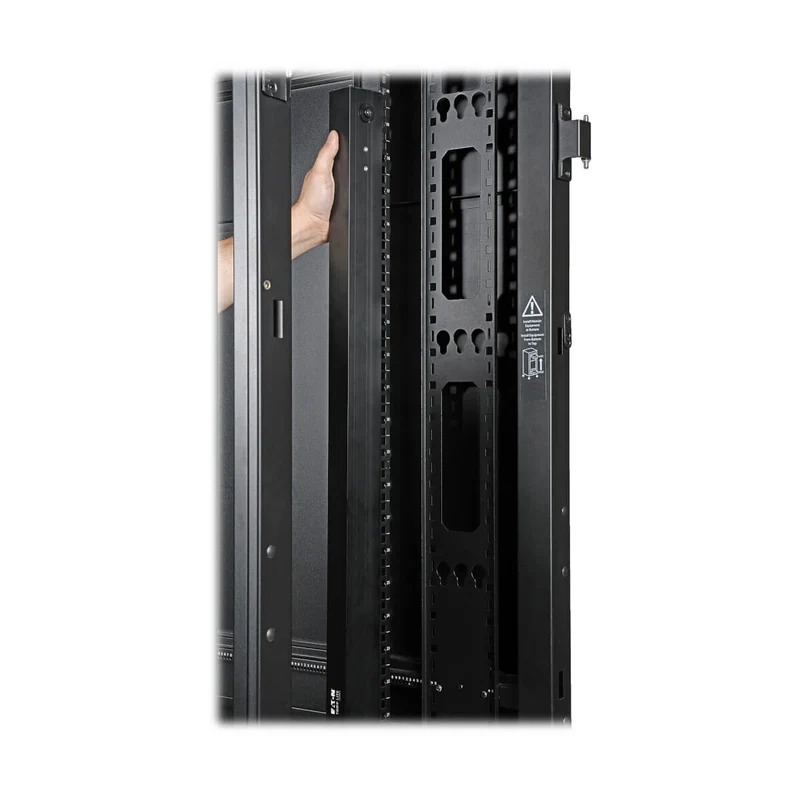

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant

Design
PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Housing material	Steel
Product colour	Black

Ports & interfaces
AC outlets quantity	45 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC-309 16A RED (3P+N+E)

Features
Cable length	1.8 m

Power
Nominal input voltage	380-415 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	220-240 V
Load capacity	11500 VA

Certificates
Compliance certificates	RoHS
Certification	UL, CSA, NOM, CE

Operational conditions
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions
Width	56 mm
Depth	49 mm
Height	1778 mm
Weight	4.08 kg

Packaging data
Package weight	6.85 kg
Package width	109 mm
Package depth	1925 mm
Package height	155 mm

Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
