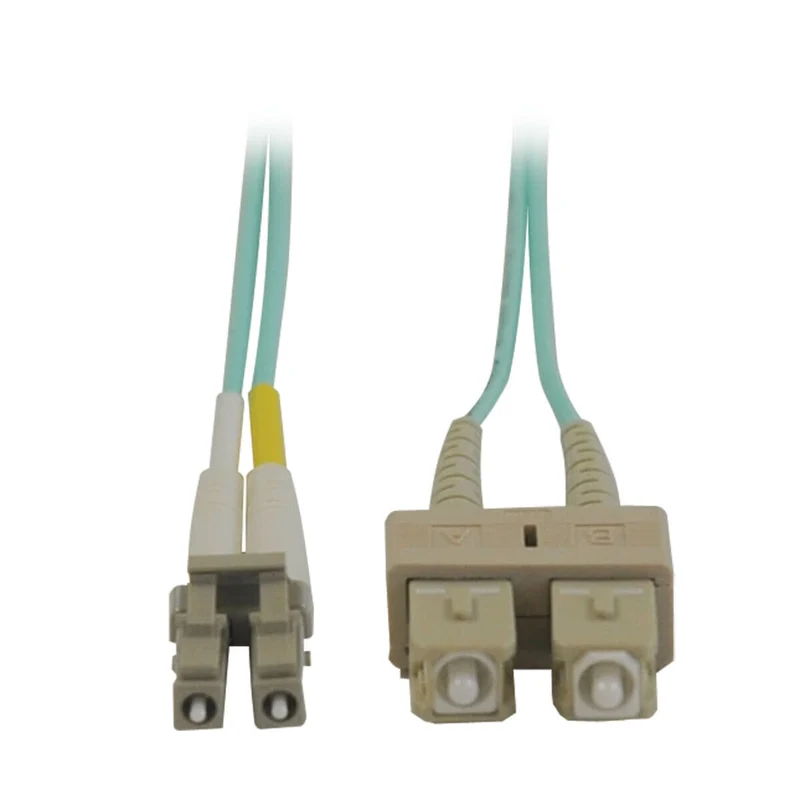

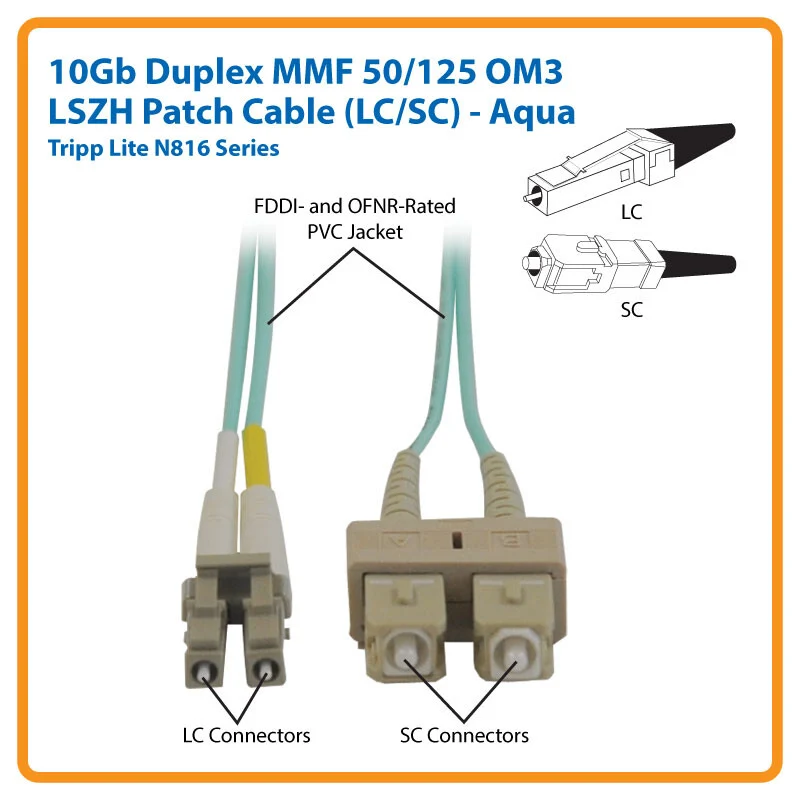

Tripp Lite N816-01M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) - Aqua, 1M (3 ft.)

• Designed for 10-Gig Ethernet applications...OM3 rated
• Backward compatible with existing 50/125 fiber
• Max 10Gb distance of 300 meters @850nm
• Low-Smoke, Zero Halogen (LSZH) Aqua jacket

1 Meter (3ft) LC/SC, OM3 Rated
10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant

Features
Jacket material	Low smoke zero halogen (LSZH)
Data transfer rate	100 Gbit/s
Fiber mode structure	Multi-mode
Cladding diameter	125 µm
Core diameter	50 µm
Product colour	Beige, Turquoise
Connector 1 gender	Male
Connector 2 gender	Male
Connector 2	2x LC
Connector 1	2x SC
Fibre optic type	OM3
Cable length	1 m

Certificates
Compliance certificates	RoHS

Weight & dimensions
Weight	10 g

Packaging data
Package weight	10 g
Package height	254 mm
Package depth	12.7 mm
Package width	177.8 mm

Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case gross weight	300 g
Master (outer) case height	63.5 mm
Master (outer) case length	254 mm
Master (outer) case width	203.2 mm
Harmonized System (HS) code	8544.70.0000
Country of origin	China
Master (outer) case GTIN (EAN/UPC)	10037332134728
