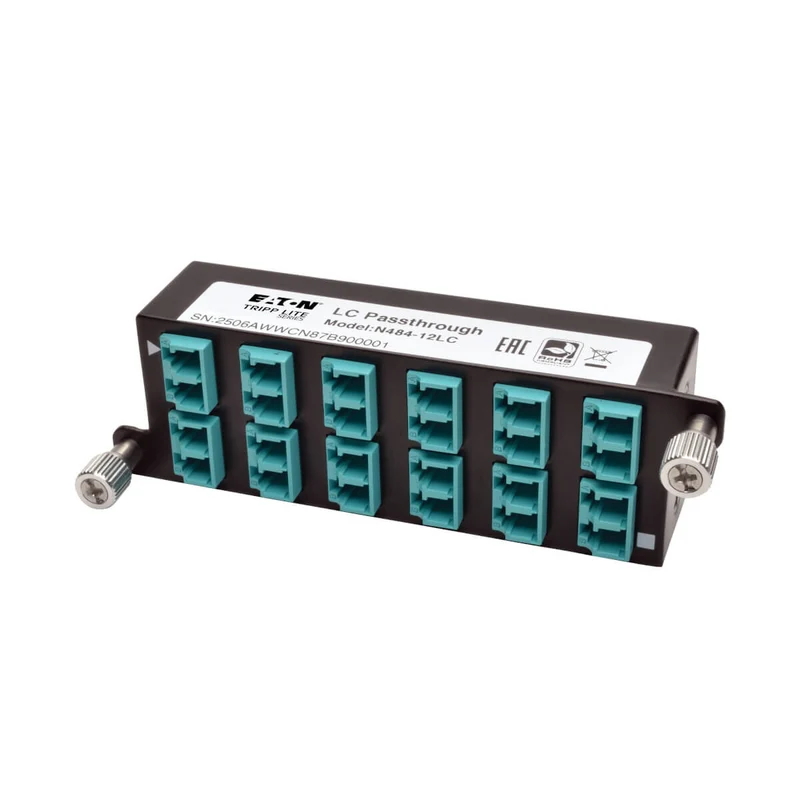

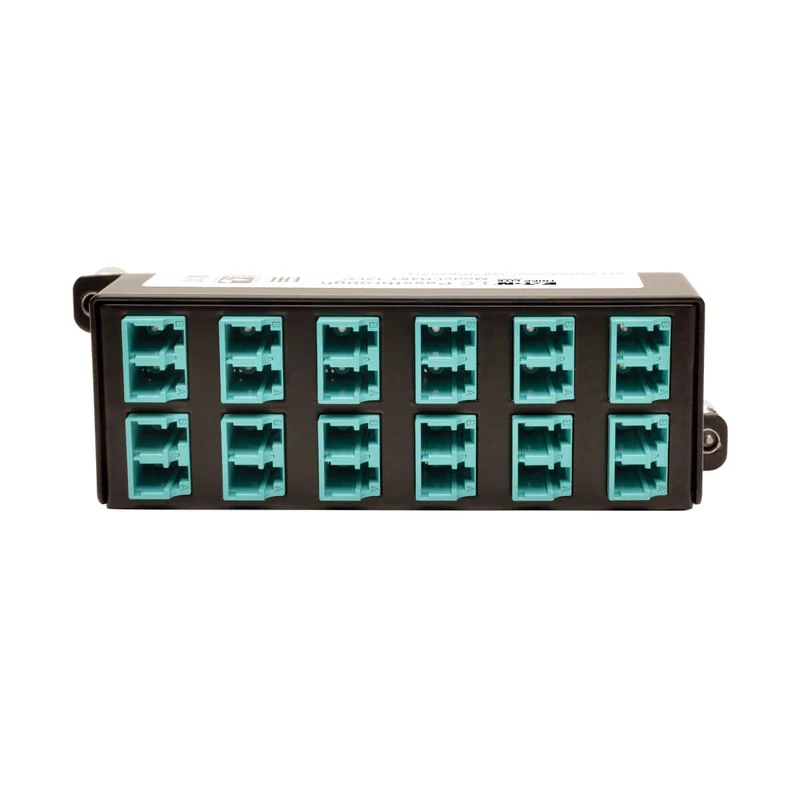

Tripp Lite N484-12LC 10GbE Pass-Through Cassette - (x12) LC Duplex

• High Density Fiber Cassette for use with the N484-00U and N484-01U chassis'
• 10GbE Pass-Through Cassette, with (x12) LC Duplex connections
• Guaranteed compatibility when used with recommended cabling
• Compatible with both singlemode and multimode fiber cables.
• Designed specifically for use with cables, such as the N820- and N821-Series cables
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

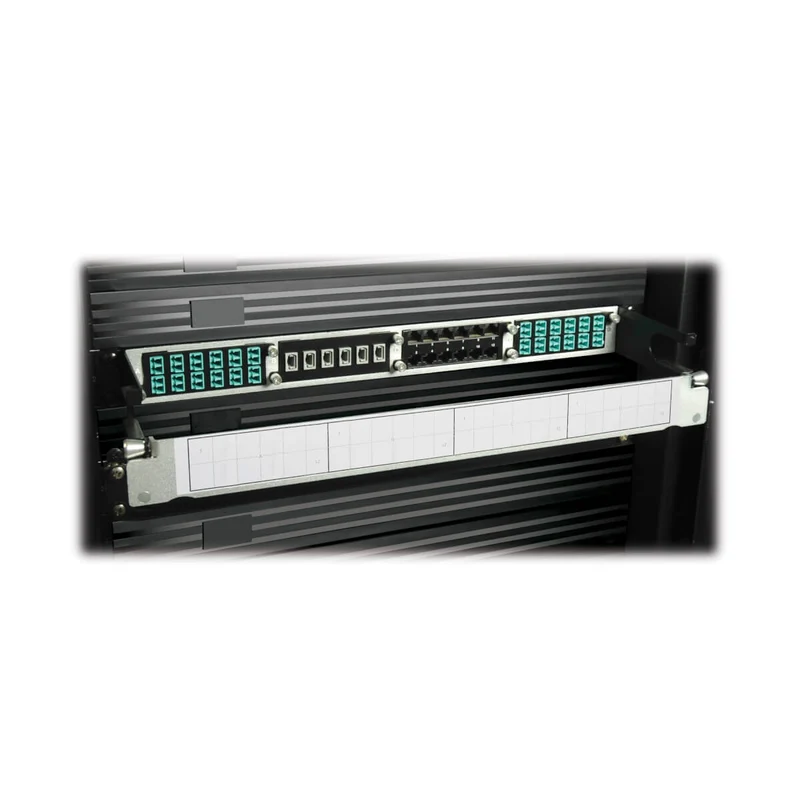

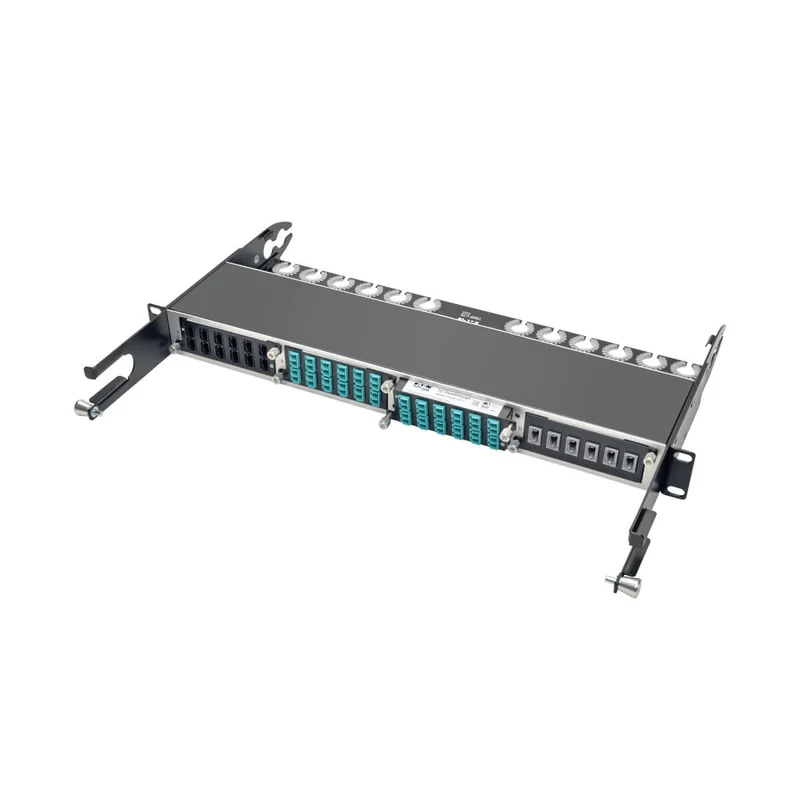

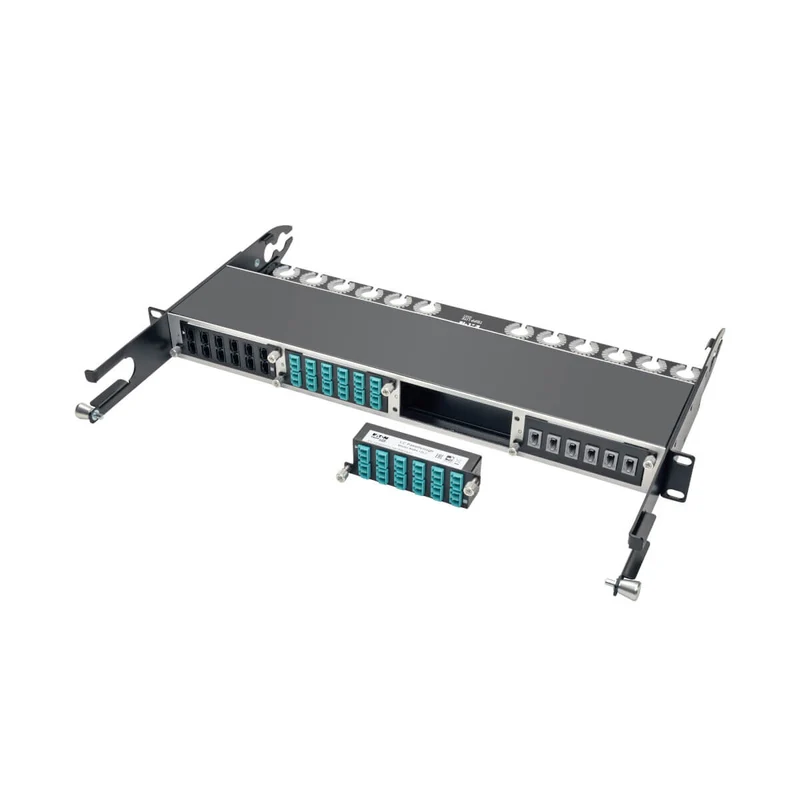

The N484-12LC is a high-density 10 Gb Pass-through Cassette with (x12) LC Duplex connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each duplex LC connection is rated for 10 GbE, with an extremely low max insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended cabling. Compatible with both singlemode and multimode fiber cables. Designed specifically for use with N820- and N821-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy-duty 1.0mm cold-rolled steel.

Network
Ethernet interface type	10 Gigabit Ethernet
Maximum data transfer rate	10000 Mbit/s
Ports quantity	12
Connector(s)	LC

Design
Product colour	Black
Material	Steel

Certificates
Compliance certificates	RoHS
Certification	REACH

Operational conditions
Operating temperature (T-T)	-20 - 50 °C

Weight & dimensions
Width	88.9 mm
Height	30.5 mm
Depth	119.4 mm
Weight	240 g

Packaging data
Package width	130 mm
Package depth	37.1 mm
Package height	59.9 mm
Package weight	250 g

Logistics data
Country of origin	China
Harmonized System (HS) code	85371098
Products per pallet	1 pc(s)
Master (outer) case width	225 mm
Master (outer) case length	125 mm
Master (outer) case height	134.9 mm
Master (outer) case gross weight	2.6 kg
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332187267
