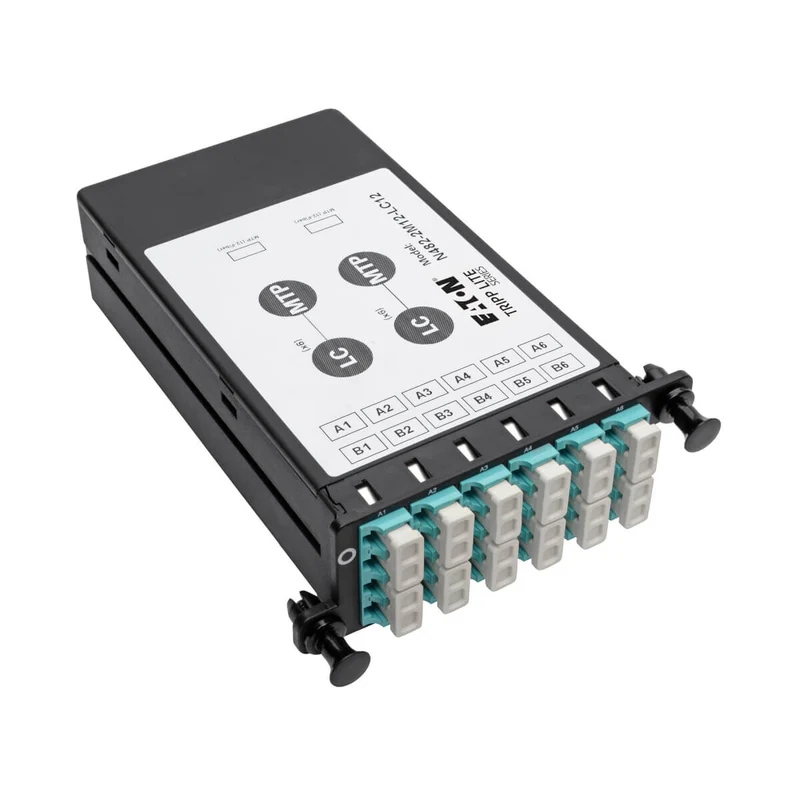

Tripp Lite N482-2M12-LC12 40Gb to 10Gb Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

• High Density Fiber Cassette for use with N482-01U and N482-02U High Density Fiber Enclosure Panels

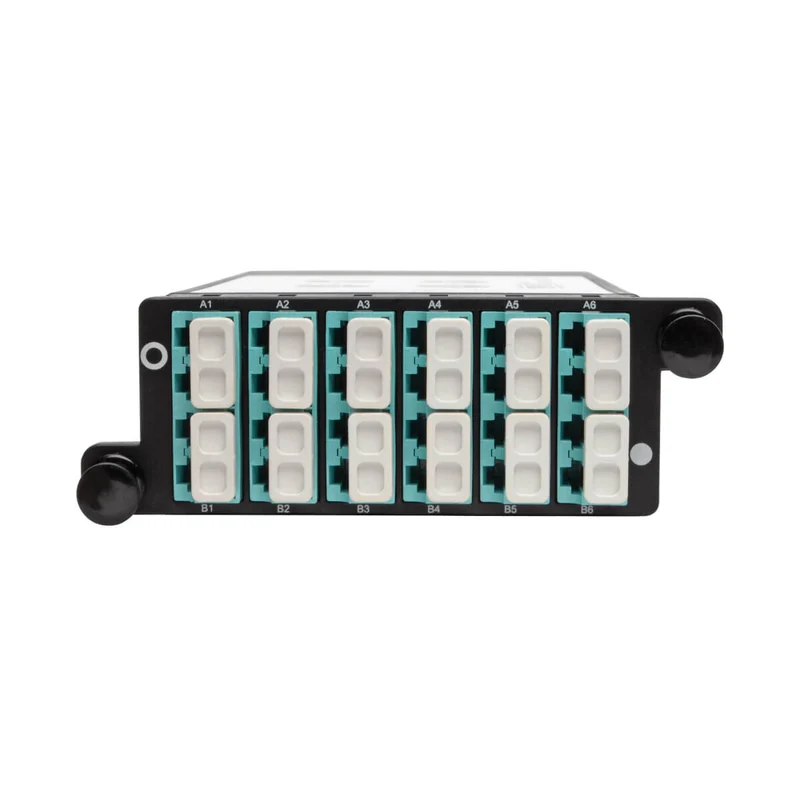

• 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to Normal 0 false false false EN-US X-NONE X-NONE MicrosoftInternetExplorer4

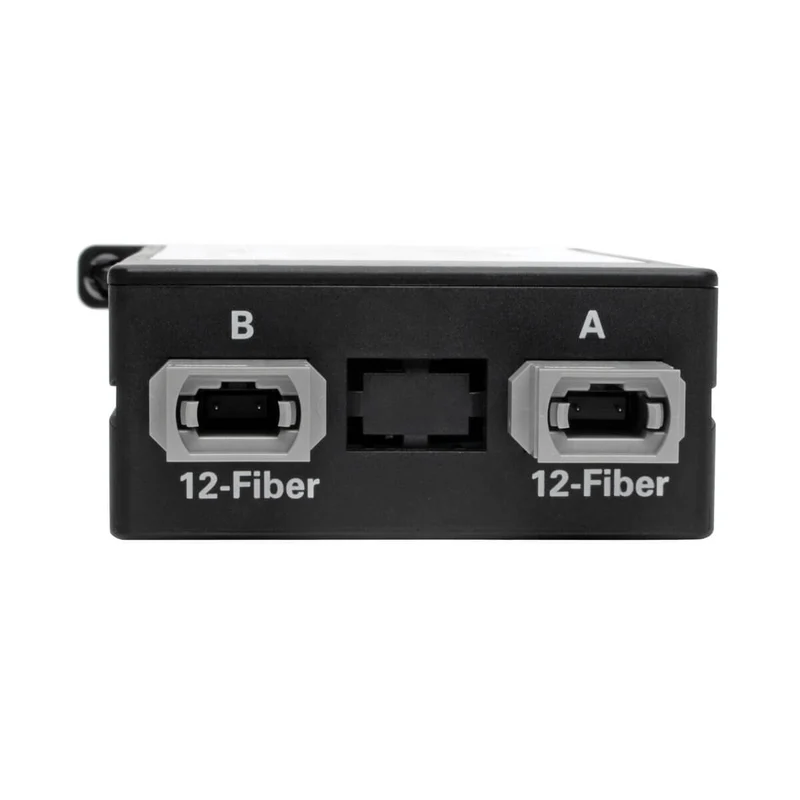

• 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
• Guaranteed compatibility when used with recommended cabling
• Cassette designed specifically for use with cables, such as the N820-, N821-, N844- and N845-Series cables
• Internal OM4 wiring
• Factory terminated connectors reduce the time and labor required of field connector terminations
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB

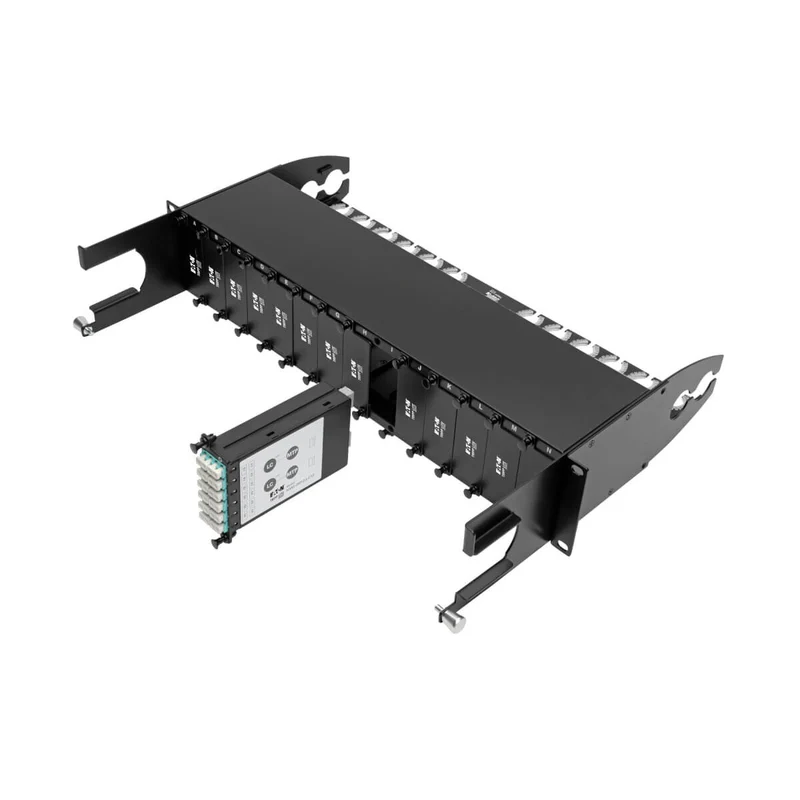

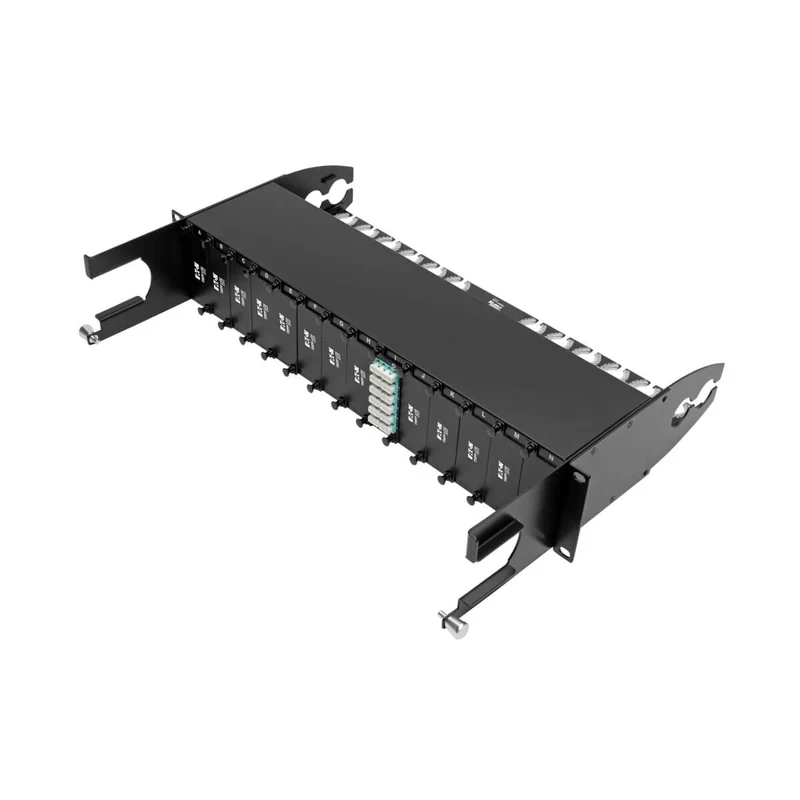

The N482-2M12-LC12 is a high-density 40 Gb to 10 Gb Breakout Cassette with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended cabling, such as the N820-, N821-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10Gbe) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.

Network
Networking standards	IEEE 802.3ae
Ethernet interface type	10 Gigabit Ethernet, 40 Gigabit Ethernet
Maximum data transfer rate	40000 Mbit/s
Ports quantity	12
Connector(s)	LC

Design
Product colour	Black
Material	Steel

Certificates
Compliance certificates	RoHS

Weight & dimensions
Width	88.9 mm
Height	30.5 mm
Depth	119.4 mm
Weight	250 g

Packaging data
Package width	200.7 mm
Package depth	119.4 mm
Package height	50.8 mm
Package weight	330 g

Logistics data
Country of origin	China
Harmonized System (HS) code	85371098
Products per pallet	1 pc(s)
Master (outer) case width	391.2 mm
Master (outer) case length	325.1 mm
Master (outer) case height	325.1 mm
Master (outer) case gross weight	9.3 kg
Products per master (outer) case	27 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332184549
