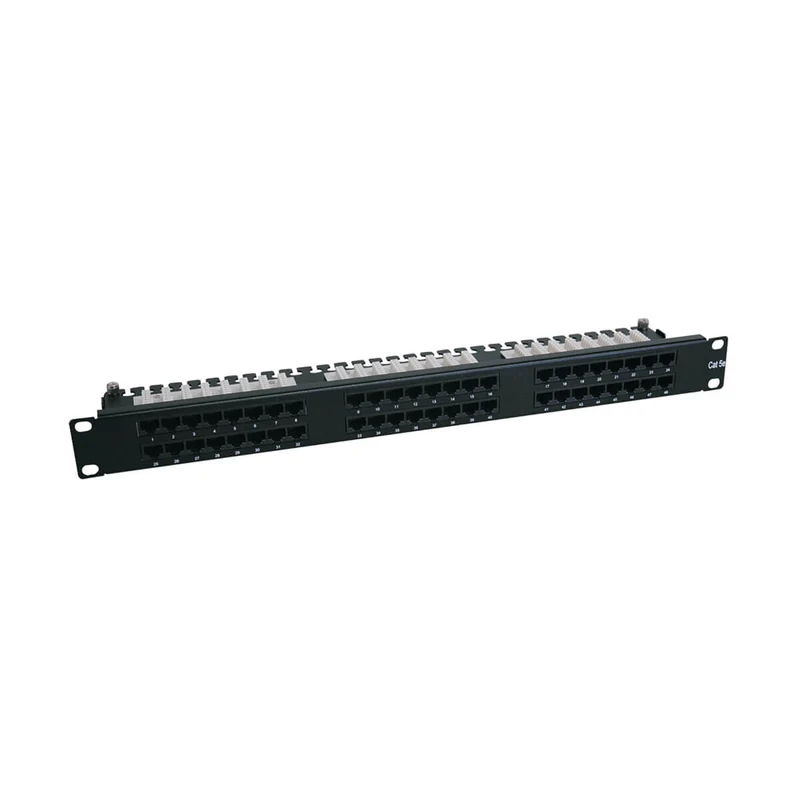

Tripp Lite N252-048-1U 48-Port 1U Rack-Mount Cat6/Cat5 High Density 110 Patch Panel, 568B, RJ45 Ethernet, TAA

• Space saving CAT6 Rated 48-port 1U 110 type Patch panel

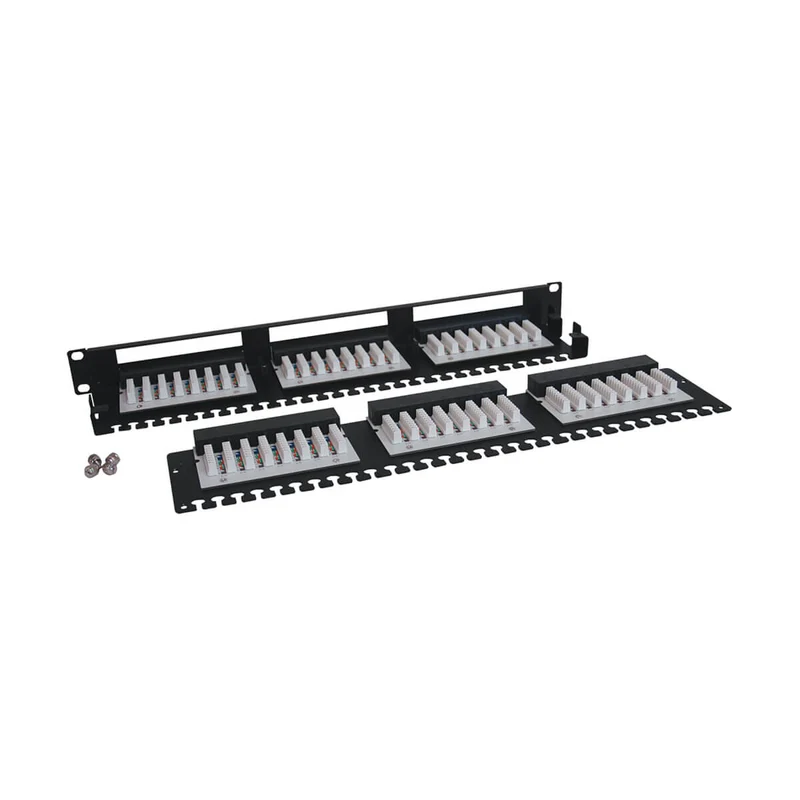

• Removable "upper-deck" for easy punch down termination
• Built-in wire management loom
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

This 1U 48-port Cat6 high-density patch panel frees up valuable rack real estate by condensing a typical 2U 48-port patch panel into 1U of space. The unique design allows for easy punch-down termination. Simply unscrew four slotted thumbscrews to remove the "upper deck" punch-down array. Punch down the "lower-deck" cables first, then replace the upper deck, and punch down upper array. Integrated wire loom keeps cabling tidy and easy to route. Heavy-duty 14GA cold-rolled steel construction. 110 connectors are color-coded for either 568A or 568B wiring.

UTP Cat6 22-24 AWG solid cable

Network
Ports quantity	48
Connector(s)	RJ-45
Cable types supported	Cat6, Cat6a, Cat6e

Design
Product colour	Black
Mounting	Rack mounting
Rack capacity	1U

Certificates
Certification	TAA, GSA

Weight & dimensions
Width	482.6 mm
Height	43.7 mm
Depth	84.1 mm
Weight	1.45 kg

Packaging data
Package width	495.3 mm
Package depth	94 mm
Package height	50.8 mm
Package weight	1.8 kg

Logistics data
Country of origin	Taiwan
Harmonized System (HS) code	85371098
Master (outer) case width	530.9 mm
Master (outer) case length	304.8 mm
Master (outer) case height	270 mm
Master (outer) case gross weight	19 kg
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332151732
