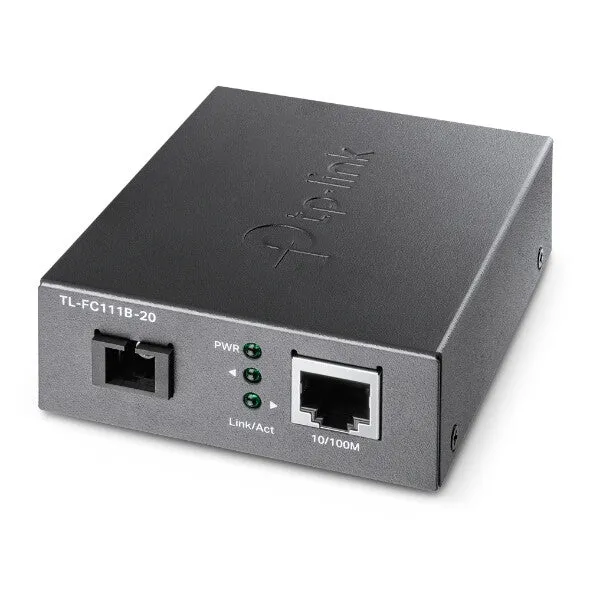

TP-Link Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

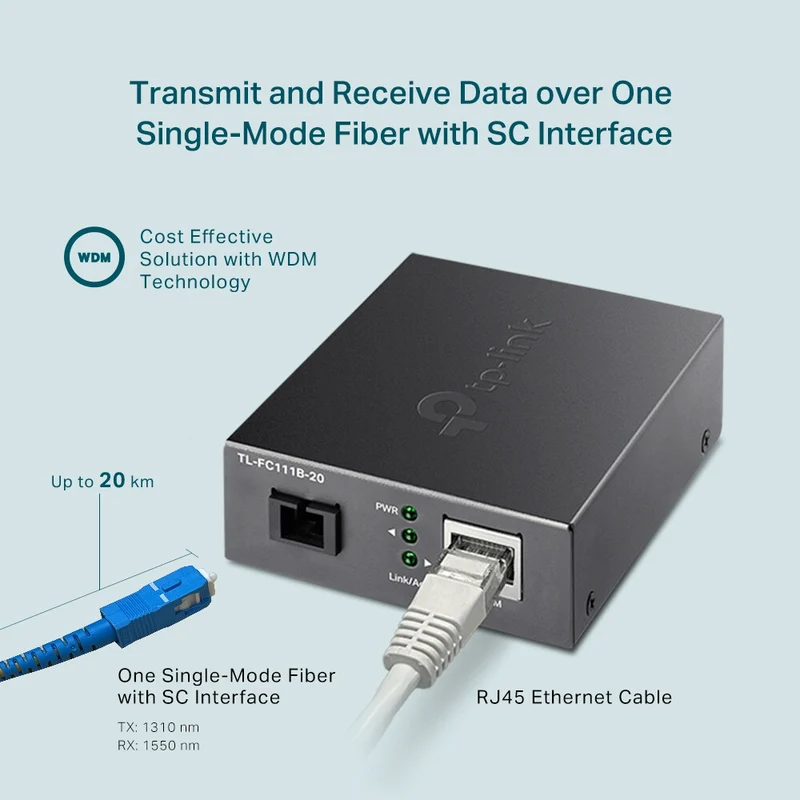

• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20km

What This Product Does

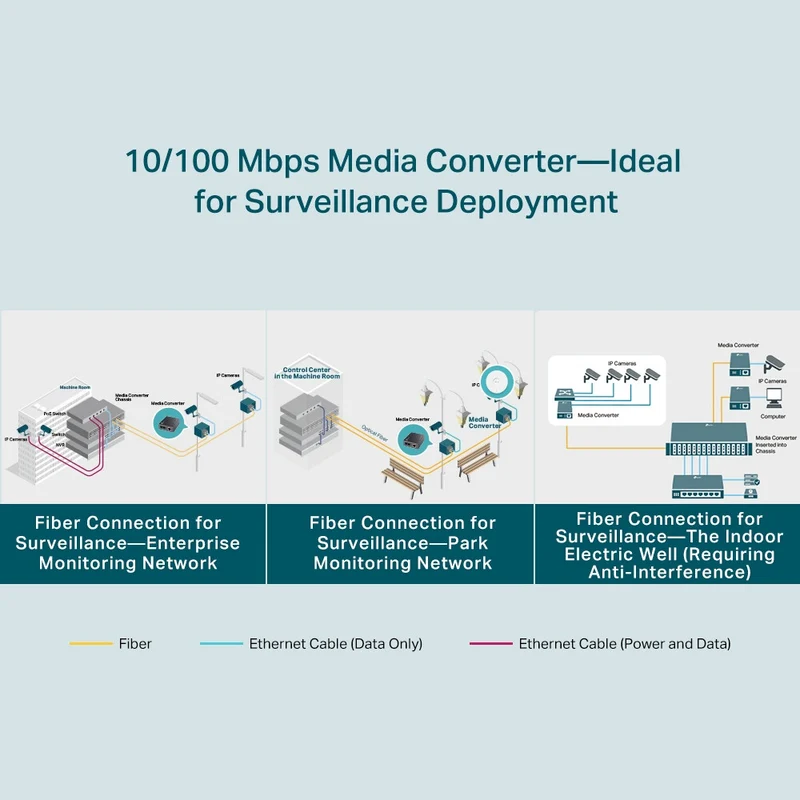

TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

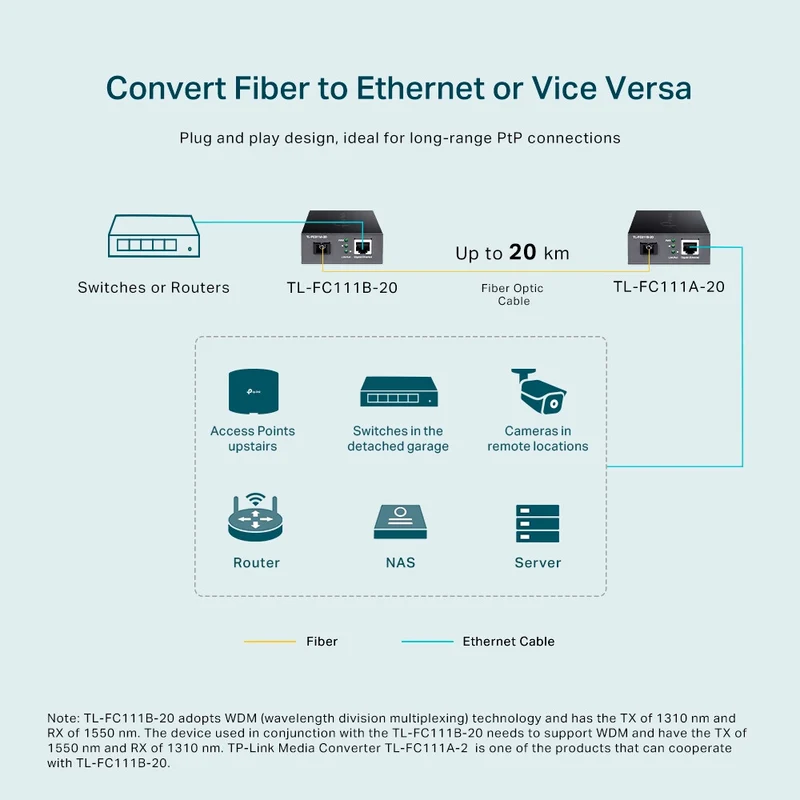

TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Network
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3i, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Fiber ethernet cabling technology	100BASE-FX
Data transfer rate	100 Mbit/s
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Duplex system	Full, Half
Cable types supported	Cat3, Cat4, Cat5, Cat5e

Performance
Maximum transfer distance	20000 m
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	9/125 µm

Features
Internal	No
Product colour	Black

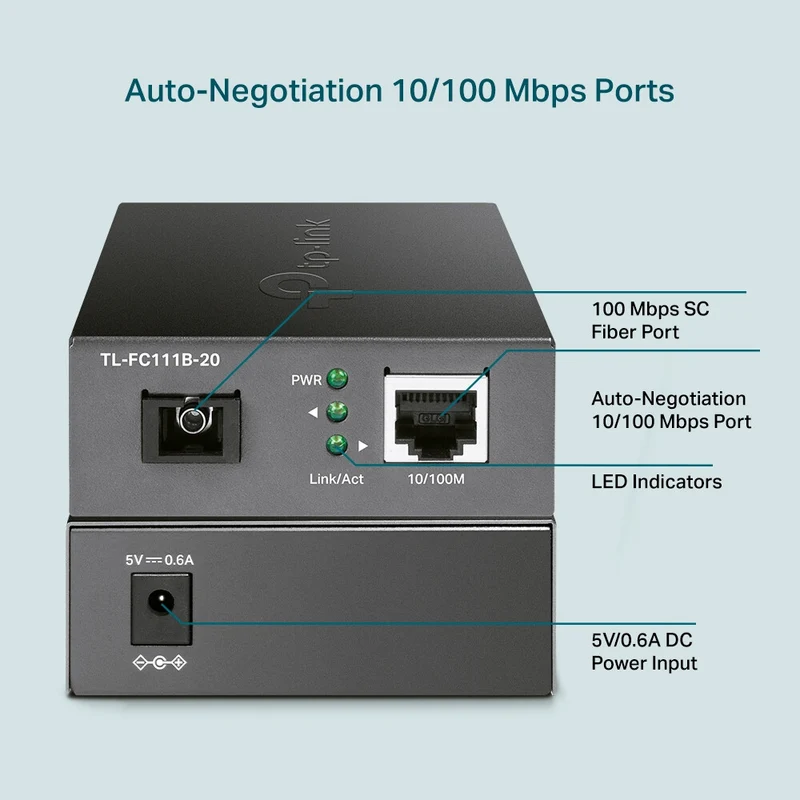

LED indicators	Activity, Link, Power

Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC

Power
Output voltage	5 V
Output current	0.6 A
External power adapter	Yes

Weight & dimensions

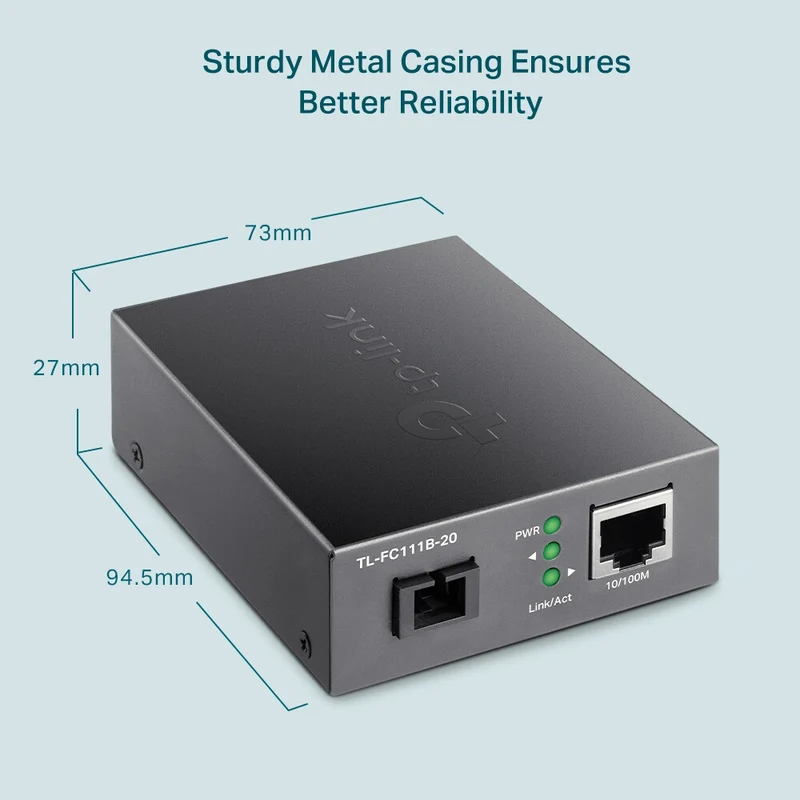

Width	94.5 mm
Depth	73 mm
Height	27 mm

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Packaging data
Package width	165 mm
Package depth	204 mm
Package height	65 mm
Package weight	360 g

General
Product family	Omada

Certificates
Compliance certificates	RoHS
Certification	FCC, CE

Logistics data
Harmonized System (HS) code	85176990
