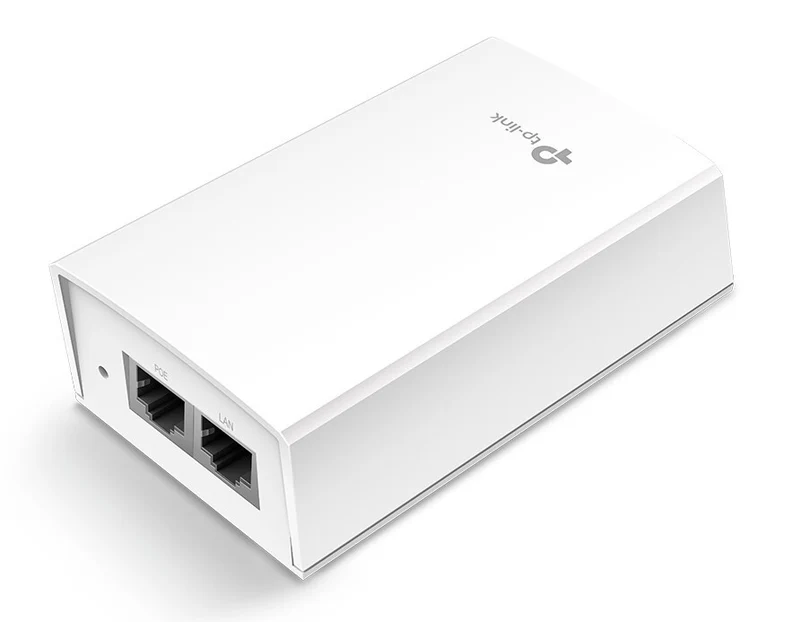

TP-Link 48V Passive PoE Adapter

• Gigabit network ports
• 48VDC passive PoE injector
• Auto-detect and auto-supply the necessary power required
• Convenient wall-mount kit
• Plug-and-Play, requires no configuration

Passive PoE Adapter
Powers TP-Link products that
support 48V passive PoE

Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.

Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6

Features
Product colour	White
Wall mountable	Yes
Plug and Play	Yes
Maximum operating distance	100 m
LED indicators	Power

Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1

Power
Power over Ethernet (PoE) voltage	48 V
Output power	24 W

Certificates
Compliance certificates	RoHS
Certification	FCC, CE, RoHS

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width	110 mm
Depth	57 mm
Height	38.8 mm

Packaging content
Wall mounting kit	Yes
Number of products included	1 pc(s)
Power cord included	Yes

Packaging data
Package width	65 mm
Package depth	198 mm
Package height	65 mm
Package weight	370 g

Logistics data
Harmonized System (HS) code	85044095
