SY Electronics SY-MUHD-88 matrix switcher AV matrix switcher Built-in display

• 8 HDMI Inputs
• 8 HDMI Outputs
• True matrix: any input to any or multiple outputs
• Analogue & Digital de-embedded audio outputs
• RS232 Contol
• Front Panel Control
• Infrared Control
• 1U rackmount chassis
• EDID Management
• HDMI 1.4
• HDCP 2.2 compliant
• Data rate 10.2Gbps

This 8-by-8 HDMI true matrix allows any source (Blu-Ray player, Android box, satellite receiver, game system, etc.) to be shown on any of the eight displays simultaneously, equalising and amplifying the HDMI outputs to ensure the HDMI signal can be transmitted through a long cable (up to 15m) without loss of quality. This can be achieved irrespective of whether the source is HDCP compliant or not.

A cost effective distribution switching platform
Robust build quality combined with a superior power supply.
Full EDID management facility
Ensure accuracy and superior refresh rates with full EDID controls.
Complete control
Operate all functions via IR, RS232 and LAN.
Audio De-embedder
Use Phoenix connectors to de-embed analogue audio or use HDMI output to de-embed digital audio to AV receivers.
Combine with SY’s extenders
Extend transmission range up to 100m.

Features
Product type	AV matrix switcher
Data transfer rate	10.2 Gbit/s
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	2.2
EDID management	Yes

Design
Housing colour	Black
Rack mounting	Yes
Rack capacity	1U
Certification	CE

Display
Built-in display	Yes

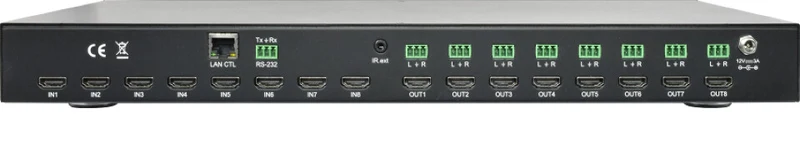

Ports & interfaces
HDMI input ports quantity	8
HDMI output ports quantity	8
HDMI version	1.4
Ethernet LAN (RJ-45) ports	1
RS-232 ports	1
Remote (IR) output	1
DC-in jack	Yes

Power
Output voltage	12 V
