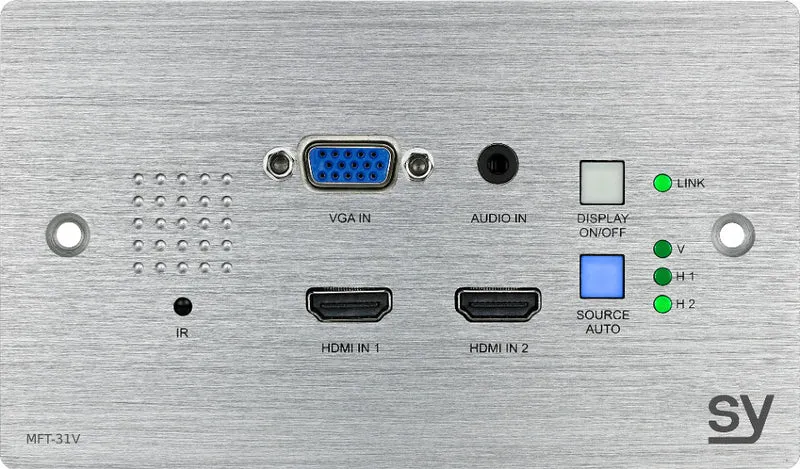

SY Electronics MFT-31V AV transmitter Stainless steel

• HDMI inputs (2)
• 1x VGA and L+R Audio
• 4K Scaling on VGA input
• HDBaseT output
• 40m @ 4K30 or 70m @ 1080p
• HDCP control
• RS232 control and pass-through
• Built in IR Eye (Pass-through)
• Auto/Manual input selection
• Auto/Manual Display On/Off control

MFT-31V is a feature packed Muti-format wall-mounted HDBaseT Transmitter with a USB-C and 2x HDMI inputs. The HDMI or USB-C Slimport video signals can be selected (Auto/Manual) and extended to 70m @ 1080P or 40m @ 4K30 using a single cat6 cable. Full control of HDCP up to 2.2, along with a choice of extensive built in EDID or the display EDID.

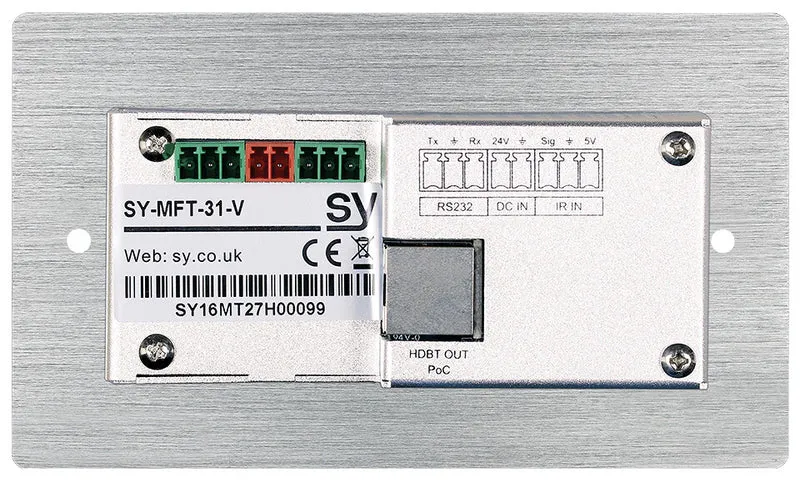

The pass-through RS232 port is also used for setup as well as control/monitoring of the unit. Both a remote and a built-in IR sensor are provided for extra flexibility.
The VGA input has a 4K Up-Scaler facility ensuring optimum display compatibility.

PoC (Power over Cable) facility ensures installation flexibility, as only a single PSU is required to power both the transmitter and receiver units. The Slim70-R is an optimal HDBaseT Receiver choice. The MFT-31C is available in Brushed aluminium and white finish, designed to fit into a Standard UK double gang back box. Also available as the MFT-31C, (USB-C & HDMI inputs).

Many customers use this solution as a standard fit into podiums and multiple meeting rooms within a large venue complex, further offering an easy to use and consistent way of connecting users' devices to in-room displays with minimal effort. Fit and Forget. MFT31 units are the perfect choice for use in classrooms, meeting rooms or board rooms where a laptop, mobile or similar devices require accessible connection.

Features
Type	AV transmitter
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	70 m
Maximum refresh rate	60 Hz
Extended display identification data (EDID)	Yes
RS-232 pass-through	Yes
IR pass-through	Yes
Wall mountable	Yes
3D	Yes
Consumer Electronics Control (CEC) support	Yes
Bandwidth	10.2 Gbit/s
HDCP version	1.4/2.2
HDCP	Yes
Material	Aluminium
LED indicators	Yes
Supported video modes	480p, 720p, 1080p, 2160p
Product colour	Stainless steel

Ports & interfaces
Connectivity technology	Wired
HDBaseT port	Yes
VGA (D-Sub) input ports	1
HDMI version	1.4
HDMI in	2
3.5 mm (1/8-inch) in	Yes
Serial interface type	RS-232
Audio input	3.5mm

Power
Operating voltage	24 V
Power consumption (max)	5 W

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-10 - 40 °C

Weight & dimensions
Width	146 mm
Depth	43 mm
Height	86 mm
Weight	235 g

Packaging data
Quantity per pack	1 pc(s)

Packaging content
AC adapter included	Yes
Manual	Yes
