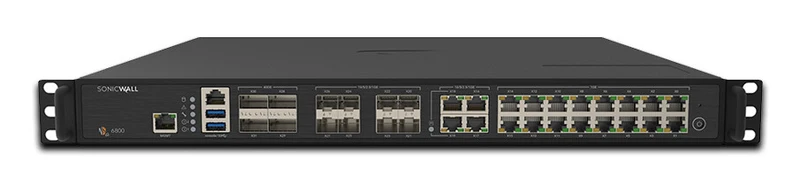

SonicWall NSa 6800 Secure Upgrade Plus - Advanced Edition 3YR (Includes 1YR CSE) hardware firewall 1U 55 Gbit/s

• 1U
• Wired
• Total storage capacity: 512 GB
• 201.7 W

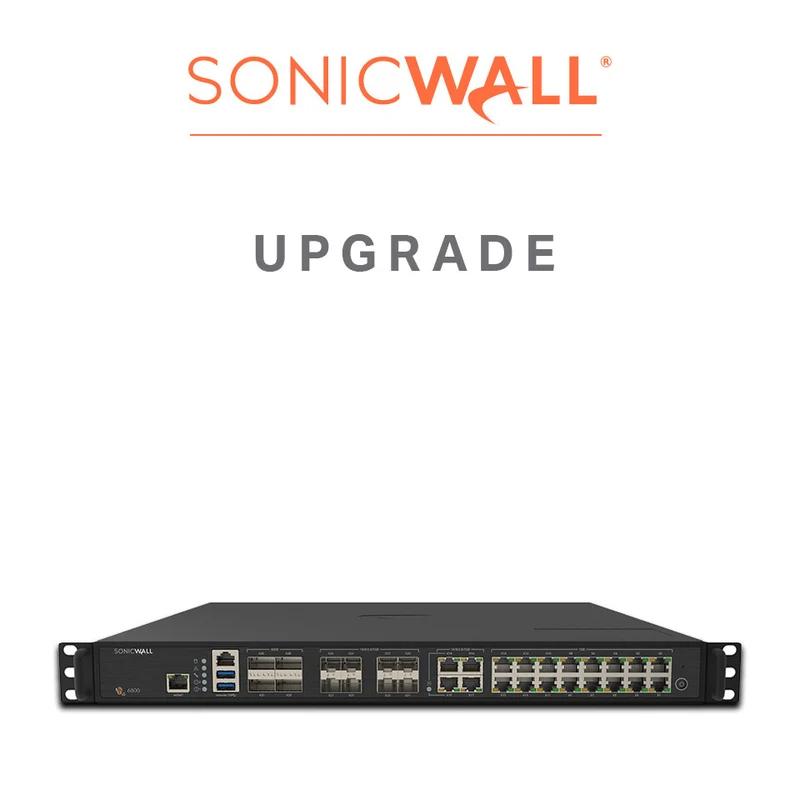

SonicWall NSa 6800 Secure Upgrade Plus - Advanced Edition 3YR (Includes 1YR CSE)

Only for Upgrades: NSa 6800 Hardware with Advanced Protection Security Suite includes 1 year Advanced Protection Security Suite (APSS, Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering,Cloud Management & 7-Day Alerting , 7-day Advanced Reporting & Analytics, 24x7 Support with firmware updates, Cloud Secure Edge For 1 year SIA - Basic (50 user) and 1 year SPA - Advanced (15 user).

The SonicWall Network Security Appliance (NSa) 6800 next-generation firewall (NGFW) offers medium to large sized enterprises industry-leading performance at the lowest total cost of ownership in its class.


The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.

Gen 8 NSa Series, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, the firewall solutions support network and hardware redundancy with high availability and dual power adapters including one for redundancy.

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterprise level workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency. The NSa Series supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliances provide a single-pane-of-glass interface to manage both switches and access points.

Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 8 NSa Series offers access to SonicWall’s advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Capture Advanced Threat Protection (ATP) cloud-based sandboxing, patented Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) - for all traffic including TLS 1.3 - offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats.

Data transmission
Firewall throughput	55 Gbit/s
IPSec VPN throughput	27 Gbit/s
IPS/IDS throughput	40000 Mbit/s
SSL inspection throughput	4200 Mbit/s
Maximum firewall connections per second	280000

Performance
TLS interception	1500000 MB/s

Network
VPN tunnels quantity	6000
Quality of Service (QoS) support	Yes
Number of VLANs	512

Security
Security algorithms	128-bit AES, 256-bit AES, 192-bit AES, SHA-1, MD5

Protocols
Management protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3

Ports & interfaces
Connectivity technology	Wired
10G Ethernet (copper) ports quantity	4
Gigabit (fiber) ports quantity	16
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of console ports	1
Installed SFP+ modules quantity	8
QSFP module slots quantity	4

Storage
Total storage capacity	512 GB

Design
Rack mounting	Yes
Form factor	1U

Power
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Input current	461.32 A
Power consumption (max)	201.7 W
Power supply	450 W

Certificates
Certification	FCC Class A, ICES Class A, CE (EMC, LVD, RoHS),UL, cUL, Mexico DGN Notice by UL, ANATEL,WEEE, REACH, SCIP, RCM, MIC Terminal, VCCIClass A, KCC/MSIP, BSMI, MTCTE/TEC, CB

Weight & dimensions
Width	430 mm
Depth	460 mm
Height	45 mm
Weight	7.4 kg

Logistics data
Quantity per pack	1 pc(s)
