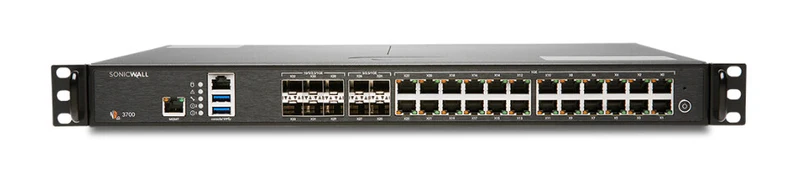

SonicWall NSa 3700 Secure Upgrade Advanced Edition 3 year (includes 1 year CSE) hardware firewall 1U 5.5 Gbit/s

• 1U Firewall throughput: 5500 Mbit/s
• 123.78 BTU/h
• 50 user(s)
• Wired Ethernet LAN data rates: 1000 Mbit/s
• Total storage capacity: 128 GB
• 36.3 W

SonicWall NSa 3700 Secure Upgrade Advanced Edition 3 year (includes 1 year CSE)

SonicWall NSa 3700 hardware with 3 year Advanced Protection Service Suite (APSS) and 1 year CSE. APSS includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 Support with firmware updates and cloud management with 7-day alerting, advanced reporting & analytics, CSE for 1 year SIA - Basic (25 User) and 1 year SPA - Advanced (8 Users)

Data transmission
Firewall throughput	5.5 Gbit/s
IPSec VPN throughput	2.2 Gbit/s
IPS/IDS throughput	3800 Mbit/s
Threat protection throughput	3500 Mbit/s
SSL inspection throughput	4200 Mbit/s
Maximum connections (DPI)	750000
Maximum connections (SPI)	2000000
Maximum firewall connections per second	22000
VoIP	Yes

Performance
TLS interception	850 MB/s
Heat dissipation	123.78 BTU/h
Compatible operating systems	SonicOS 7.0.1

Network
Concurrent SSL/VPN connections (maximum)	500
Number of users	50 user(s)
VPN tunnels quantity	3000
Local user database	1000
Quality of Service (QoS) support	Yes
Number of VLANs	256
Number of LAN Access Points (max)	512

Security
Security algorithms	128-bit AES, DES, 3DES, 192-bit AES, 256-bit AES, MD5, SHA-1

Protocols
Management protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Routing protocols	BGP, RIP, OSPF

Ports & interfaces
Connectivity technology	Wired
10G Ethernet (copper) ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	24
Ethernet LAN data rates	1000 Mbit/s
Number of console ports	1
SFP+ module slots quantity	10

Storage
Total storage capacity	128 GB

Design
Rack mounting	Yes
Form factor	1U
Number of fans	2 fan(s)
Built-in fan	Yes

Power
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (max)	36.3 W
Power supply	90 W

Certificates
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS, C-TICK, VCCI, KCC, cUL, UL, CB, WEEE, REACH, BSMI
Certification	FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width	430 mm
Depth	325 mm
Height	45 mm
Weight	4.6 kg

Other features
Firewall throughput	5500 Mbit/s
