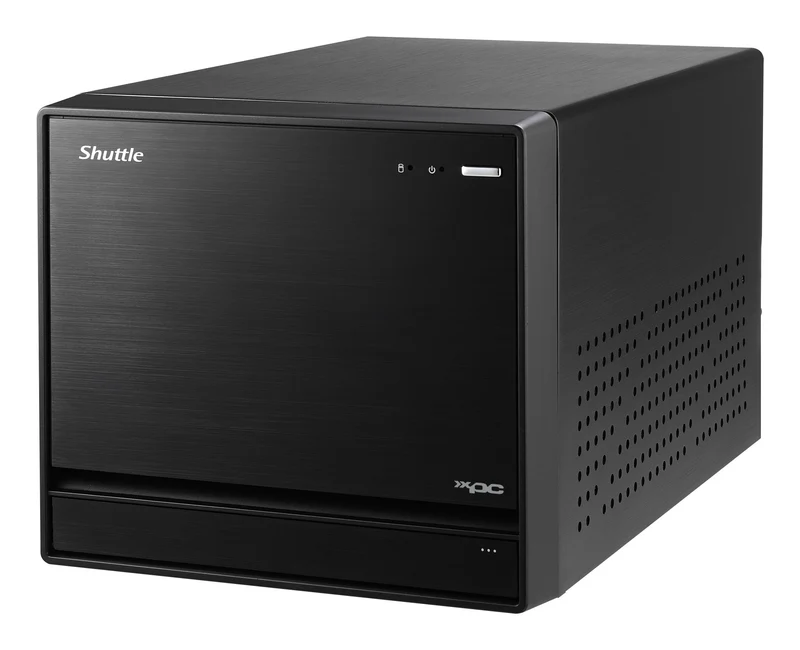

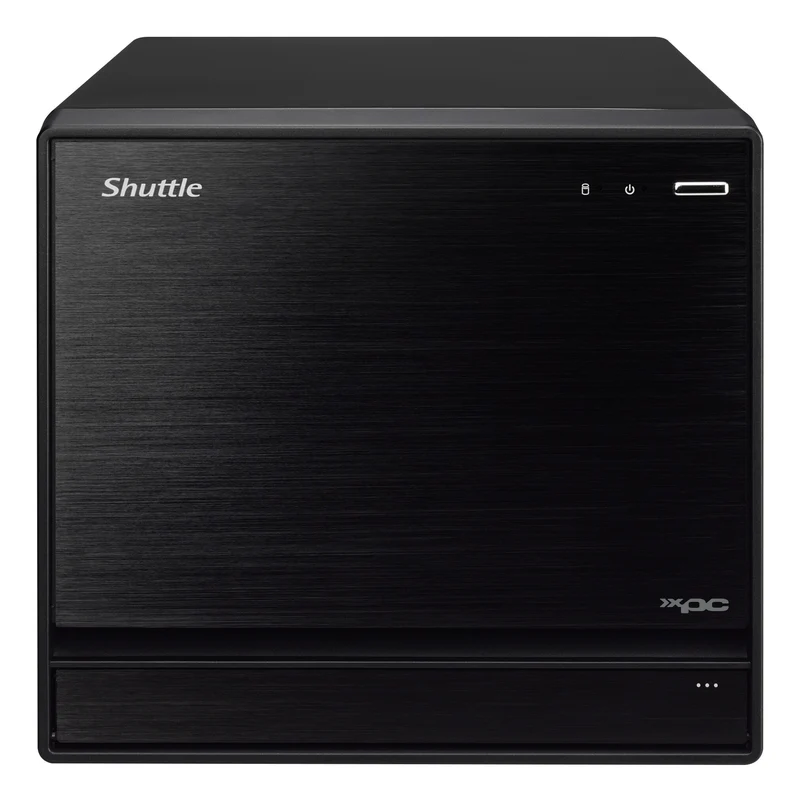

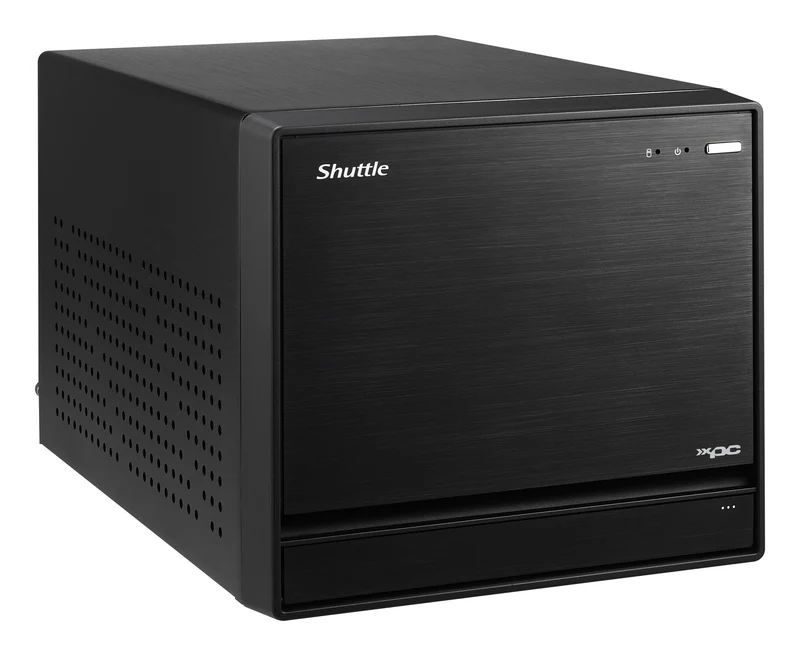

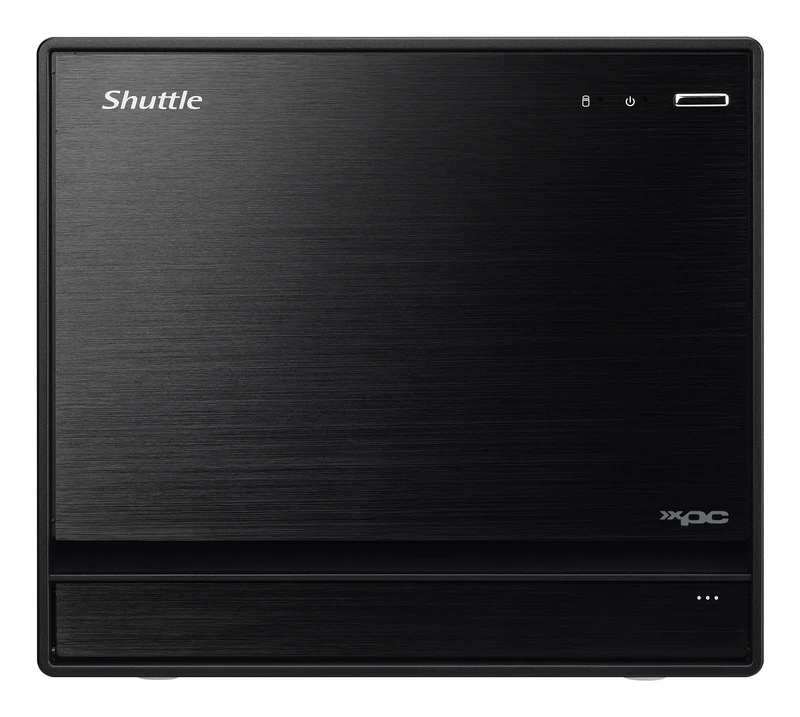

Shuttle XPC cube Barebone SH570R8 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x LAN,1x HDMI, 2x DP, 4x 3.5" HDD bays

• 13L sized PC Black
• Intel
• 4 DIMM Maximum internal memory: 128 GB DDR4-SDRAM
• HDD & SSD 2.5,3.5,M.2
• On-board graphics card Intel® UHD Graphics
• Ethernet LAN Wi-Fi

The Shuttle XPC cube Barebone SH570R8 is able to accommodate up to four 3.5 inch hard drives for enormous storage capacity - ideal for both home and commercial applications. However, this barebones platform is way more than just about storage - the SH570R8 has enough grunt under its aluminium bonnet to be a high-end gaming PC or a workstation for intensive graphics or even video applications. Its black-brushed aluminium case shows how discreet and stylish a powerful PC can look.

Processor
Built-in processor	No
Processor manufacturer	Intel

Memory
Memory slots type	DIMM
Number of memory slots	4
Memory voltage	1.2 V
Memory channels	Dual-channel
Maximum internal memory	128 GB
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory types	DDR4-SDRAM

Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,3.5,M.2
SSD form factor	M.2
Storage drive interface	PCI Express, Serial ATA III

Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics

Audio
Built-in speaker(s)	No

Network
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Bluetooth	Yes

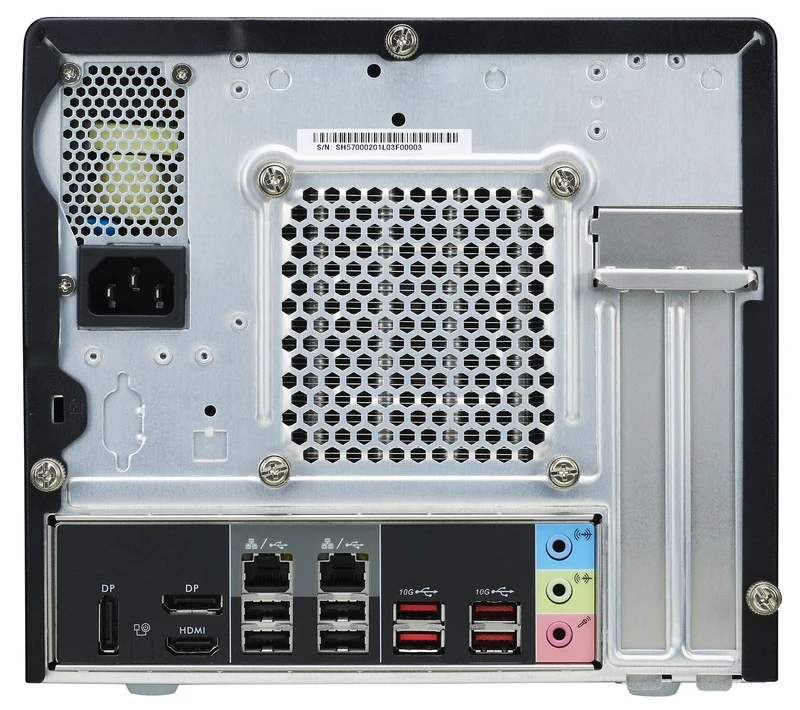

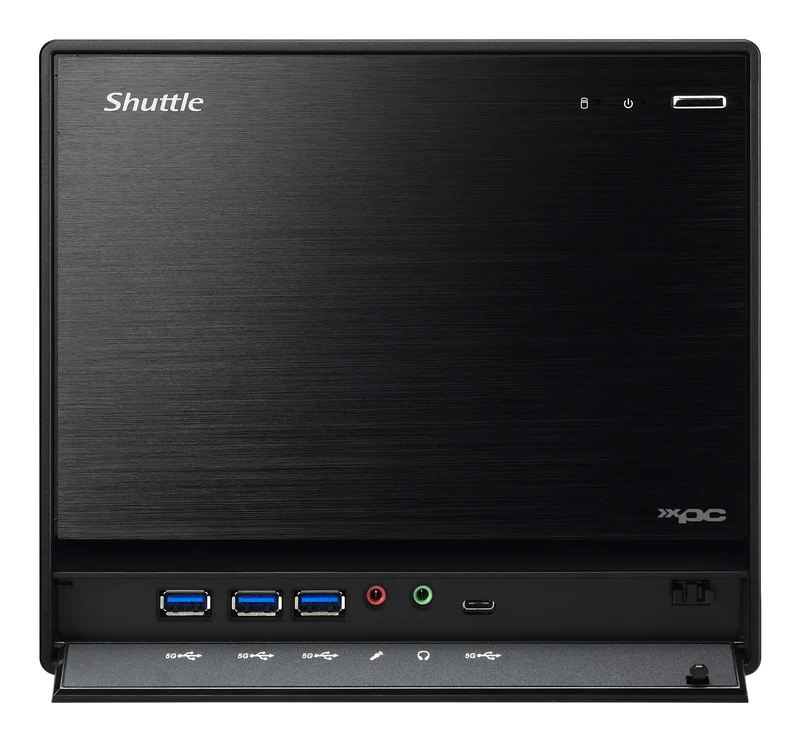

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	1
DisplayPort version	1.4
Microphone in	Yes
Ethernet LAN (RJ-45) ports	2

Design
Chassis type	13L sized PC
Product colour	Black
Cooling type	Active
On/off switch	Yes
Housing material	Aluminium
Cable lock slot	Yes
Cable lock slot type	Kensington
Product type	PC barebone

Performance
Motherboard form factor	ATX
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
BIOS type	AMI
BIOS memory size	16 Mbit
Audio chip	Realtek ALC897

Logistics data
Harmonized System (HS) code	84713000

Software
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Operating system installed	No

Power
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Number of power supply units	1
Power supply	500 W

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Width	215 mm
Depth	332 mm
Height	190 mm
Weight	3.5 kg
Package weight	4.5 kg

Packaging content
Power cord included	Yes
Quick start guide	Yes

Other features
Country of origin	China
