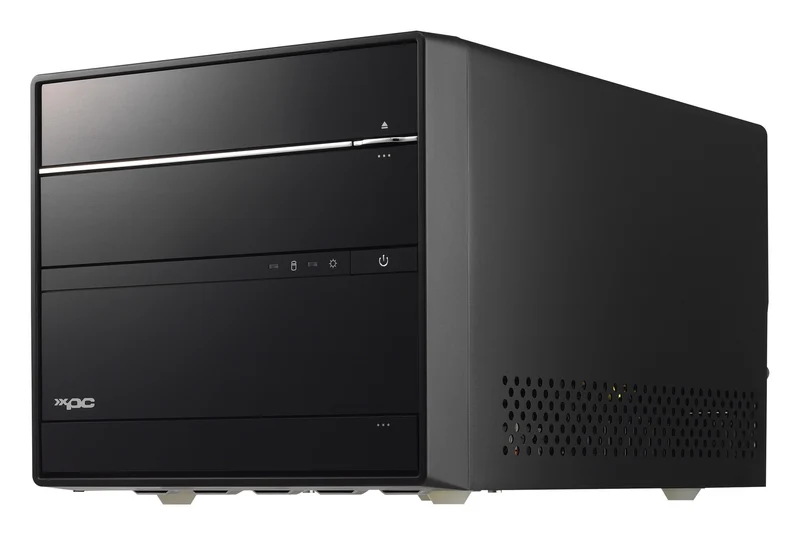

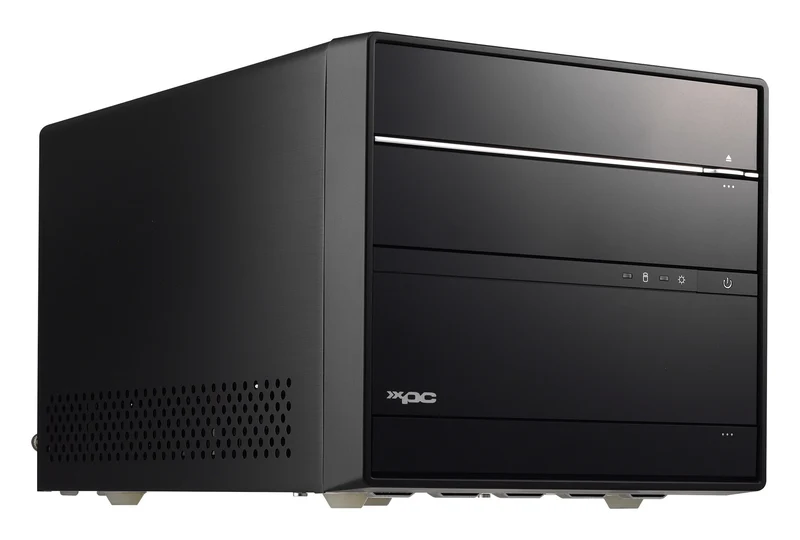

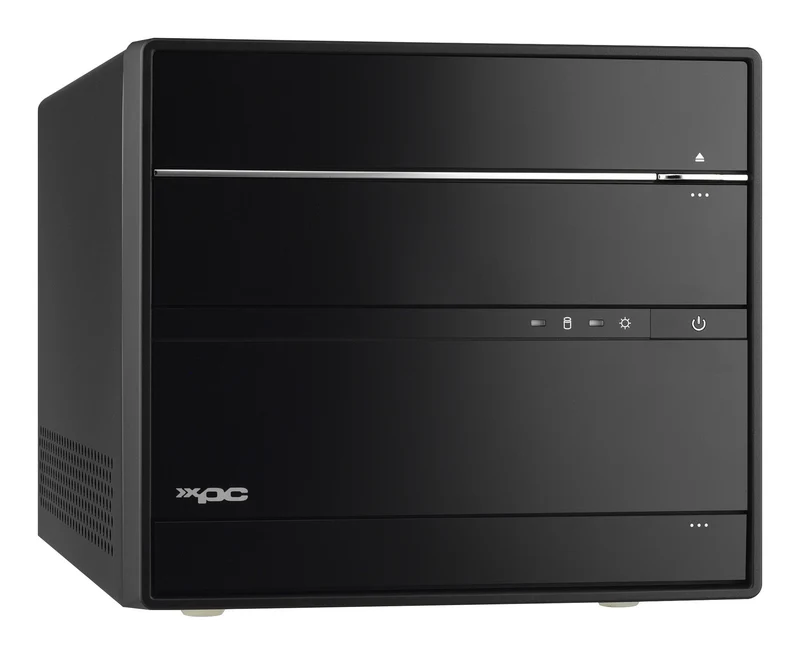

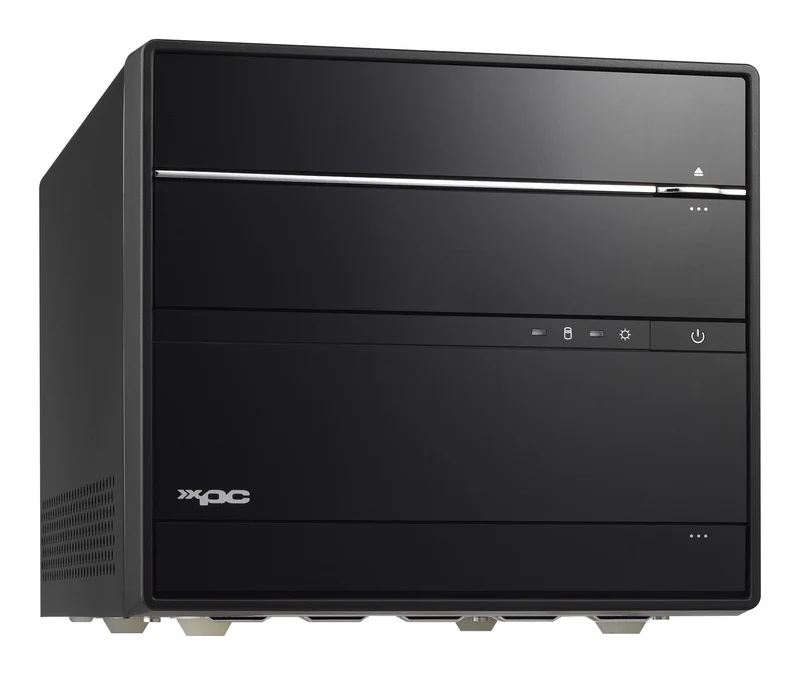

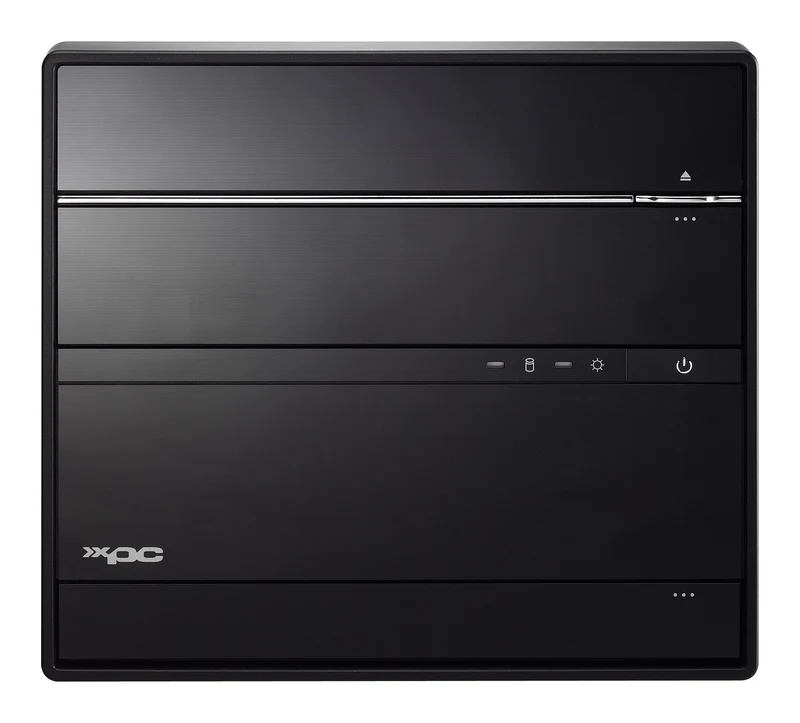

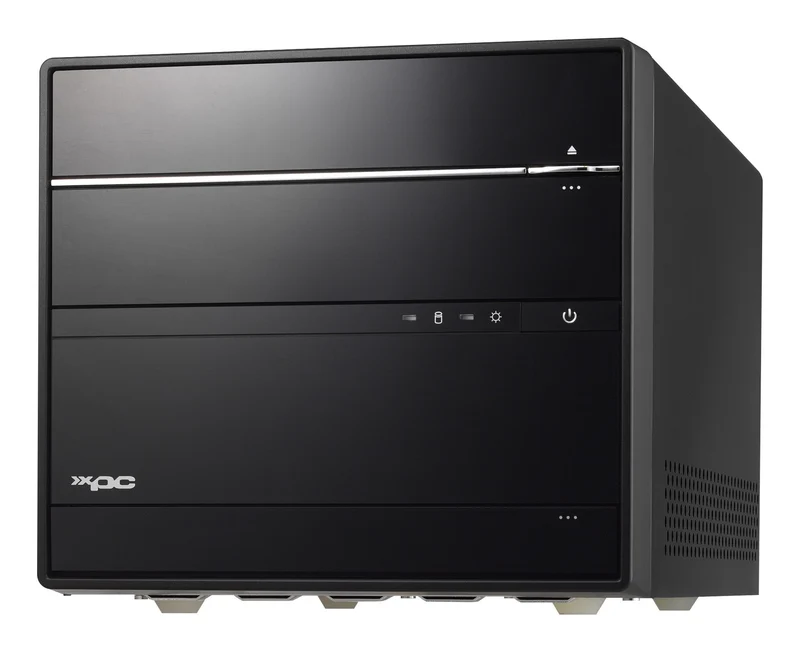

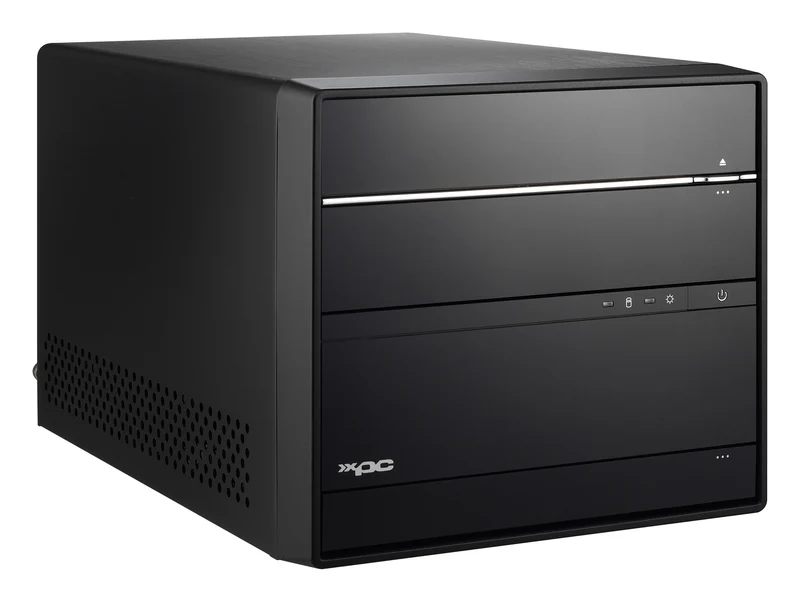

Shuttle XPC cube Barebone SH570R6 Plus - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 500W PSU

• Mini-PC (socket 1200)
• 5.25" bay for an optical drive
• Dual LAN, 1x HDMI 2.0 , 2x DP 1.4b
• 500 Watt power supply

Supports 10th/11th generation Intel Core processors and up to three UHD displays

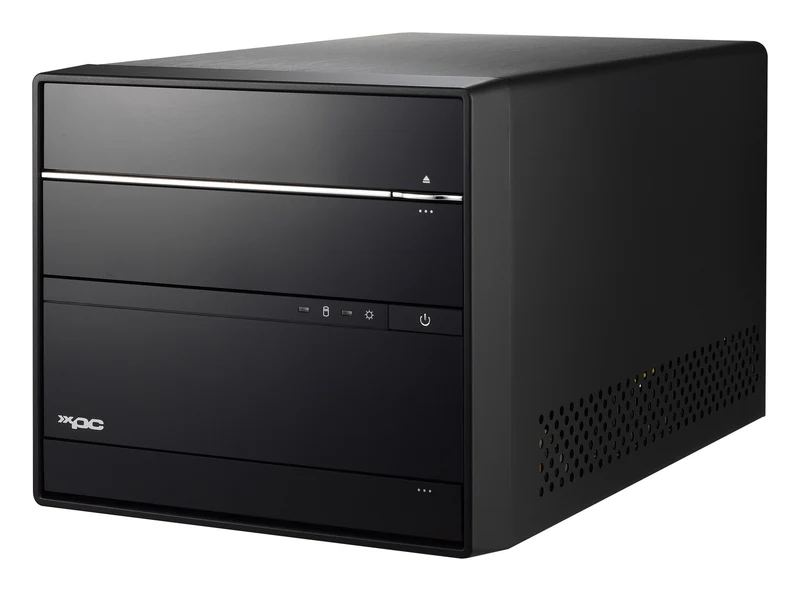

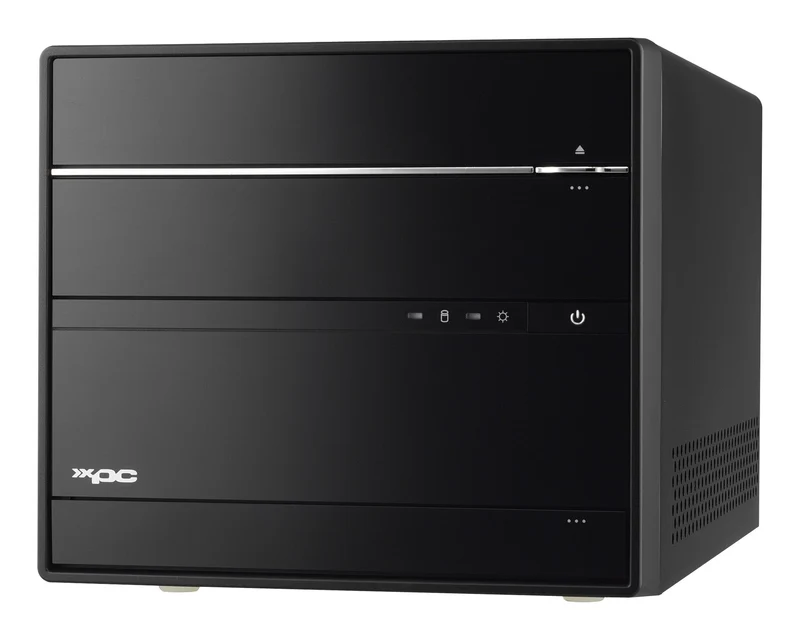

The Shuttle XPC Barebone SH570R6 Plus shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.

Processor
Built-in processor	No
Thermal Design Power (TDP)	125 W

Memory
Memory slots type	DIMM
Number of memory slots	4
Memory voltage	1.2 V
Memory channels	Dual-channel
Maximum internal memory	128 GB
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory types	DDR4-SDRAM

Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,3.5,M.2

Graphics
On-board graphics card	Yes

Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT, Intel® I219-LM

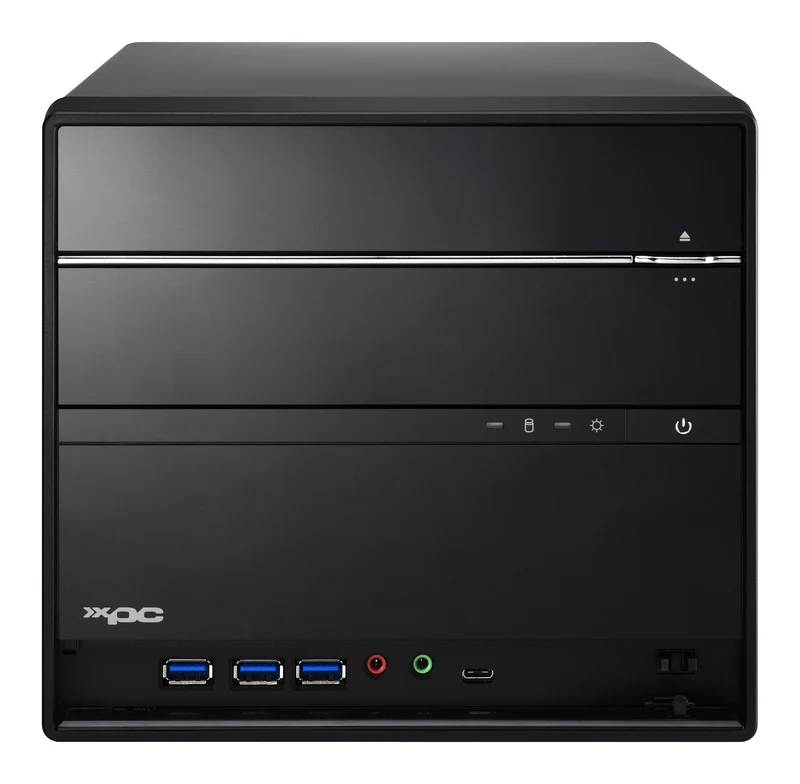

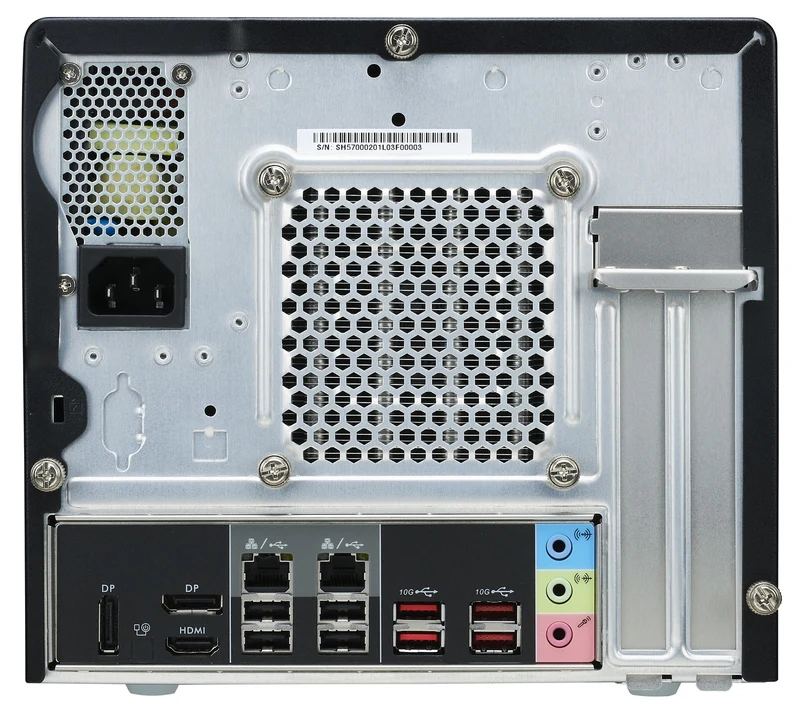

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	2
DisplayPort version	1.4
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2

Expansion slots
PCI Express slots version	4.0
PCI Express x4 slots	1
PCI Express x16 slots	1

Design
Chassis type	Cube
Product colour	Black
Cooling type	Active
LED indicators	Yes
Housing material	Aluminium
Cable lock slot	Yes
Cable lock slot type	Kensington
Product type	PC barebone

Performance
Motherboard chipset	Intel H570
Processor socket	LGA 1200 (Socket H5)
Number of processors supported	1
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Audio output channels	5.1 channels
Audio chip	Realtek ALC897

Logistics data
Harmonized System (HS) code	84713000

Software
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes

Power
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Number of power supply units	1
Power supply	500 W

Weight & dimensions
Width	215 mm
Depth	332 mm
Height	190 mm
Weight	3.5 kg
Package weight	4.5 kg

Packaging content
Power cord included	Yes
Quick start guide	Yes
Drivers included	Yes
