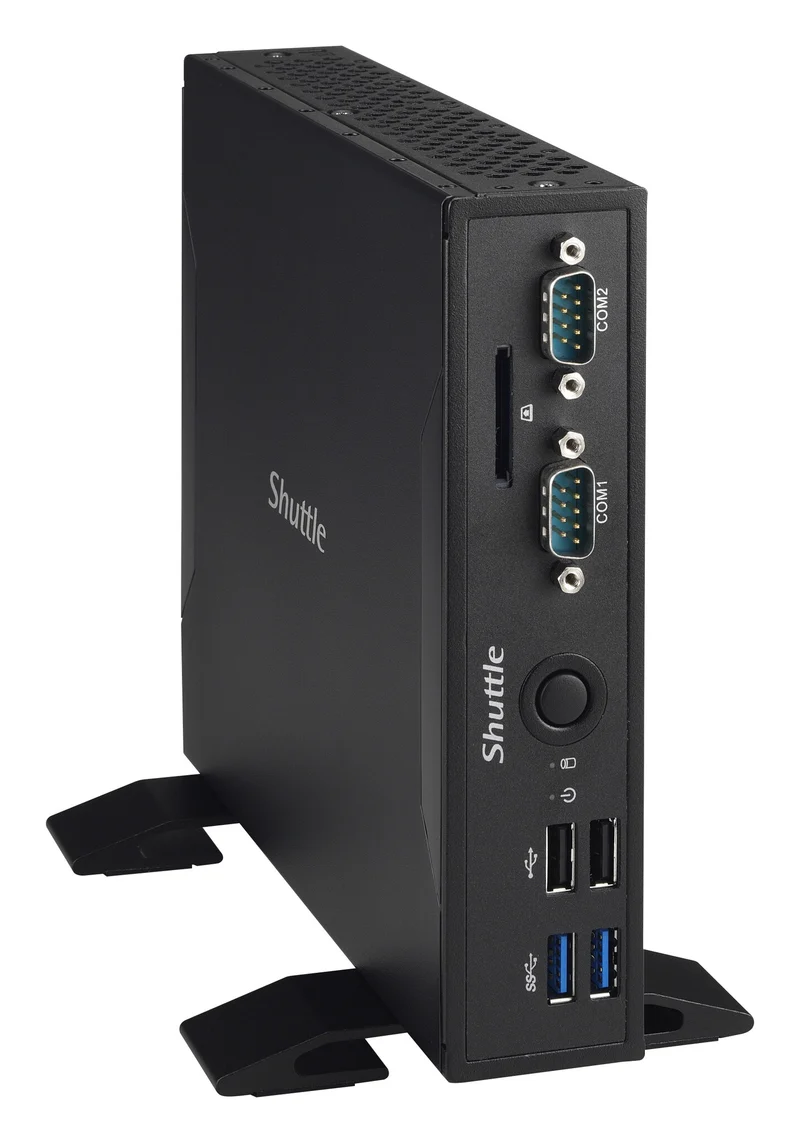

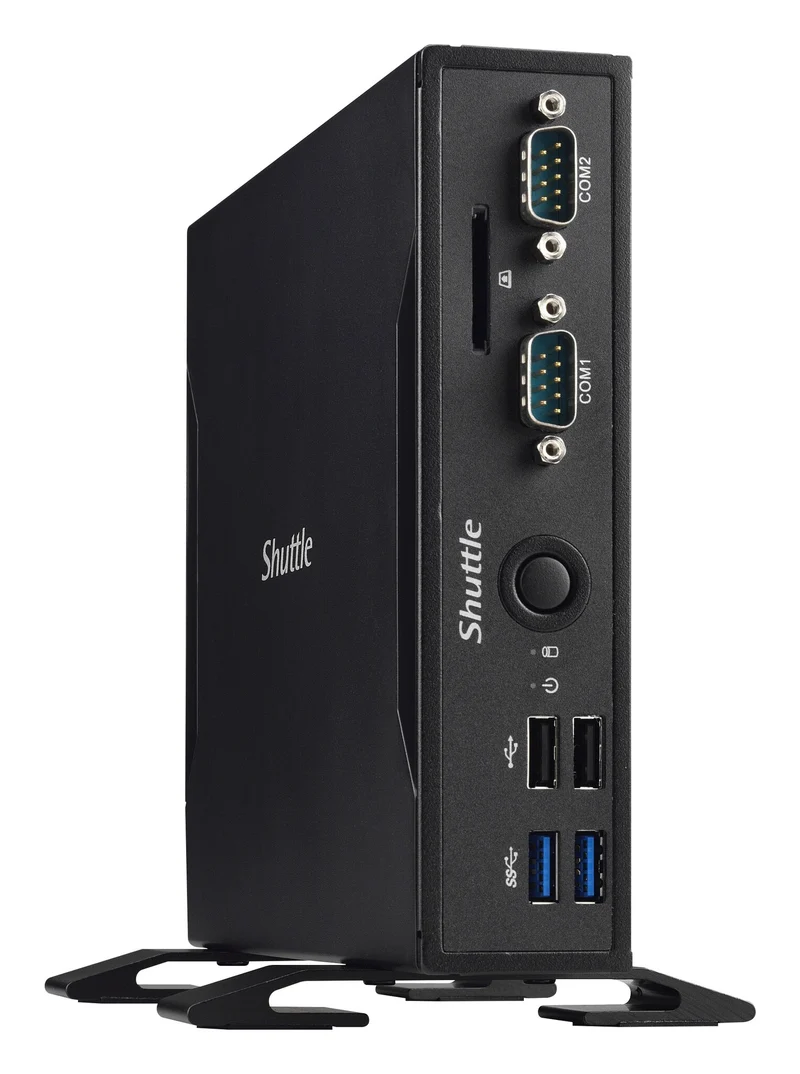

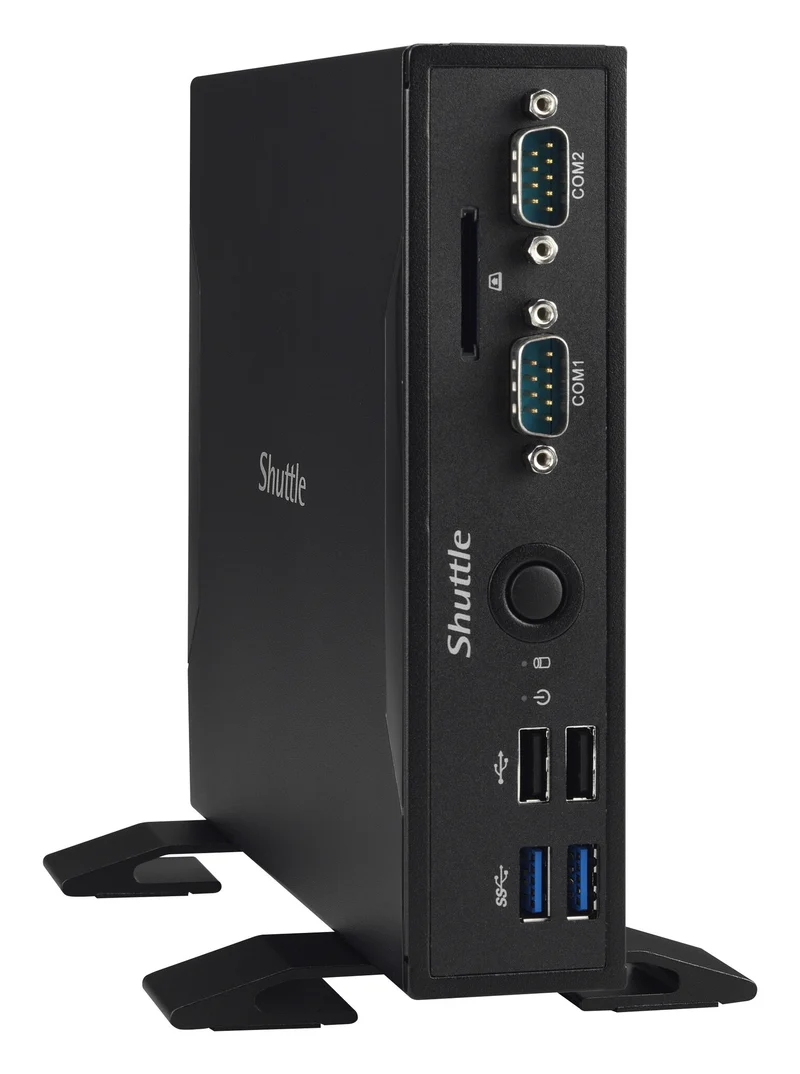

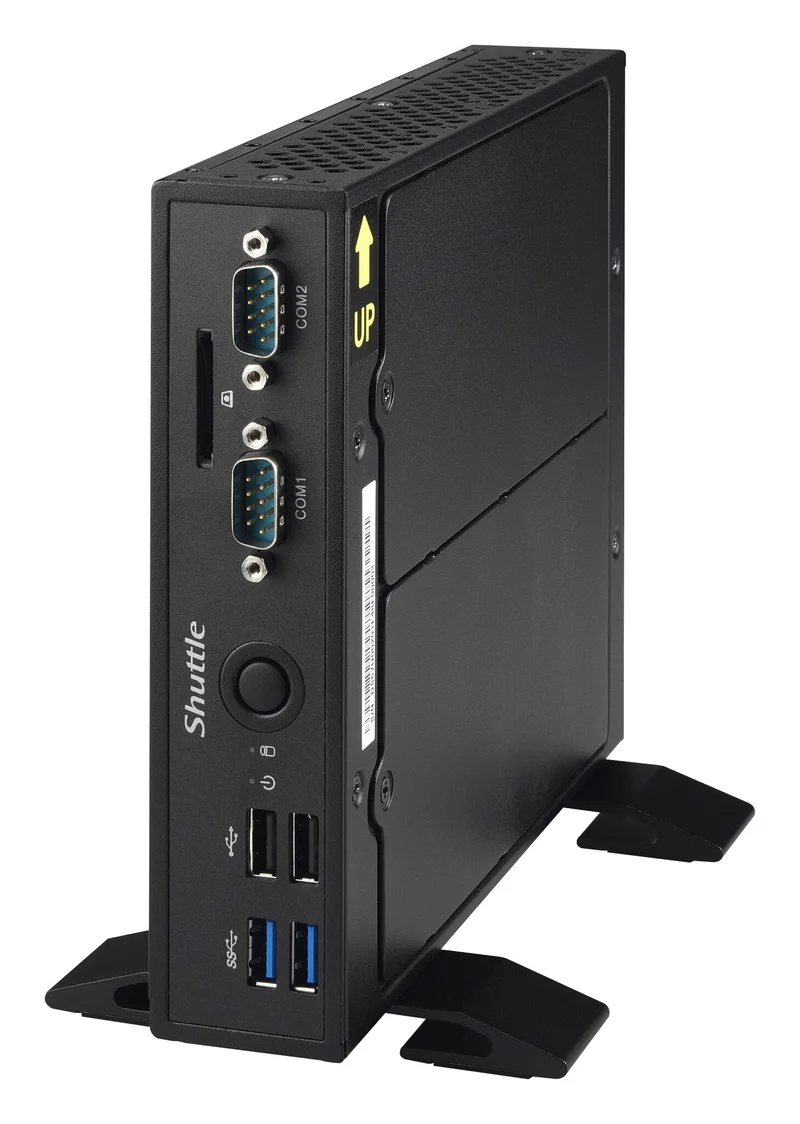

Shuttle XPС slim DS77U

• Fanless 1.3L-PC with Intel Celeron 3865U CPU supports 24/7 operating
• Triple Monitoring, Dual LAN, Dual COM, VESA

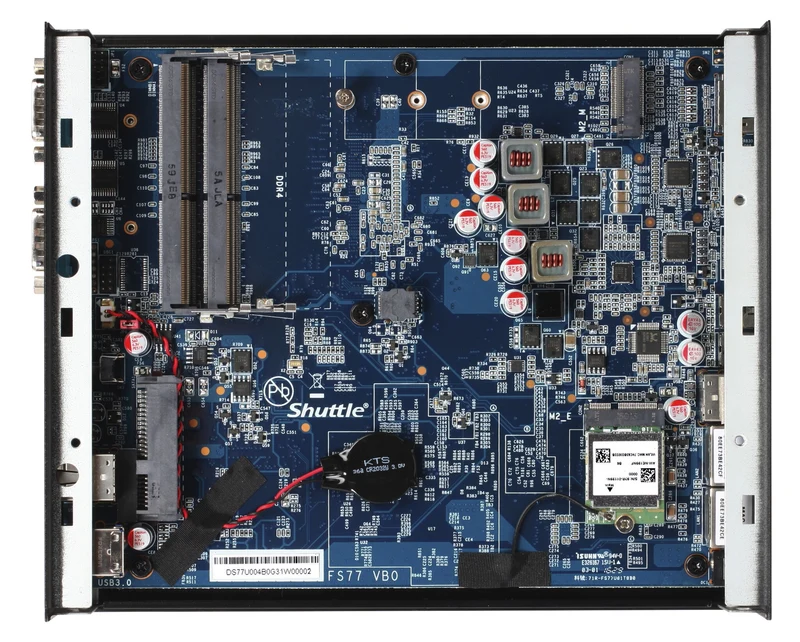

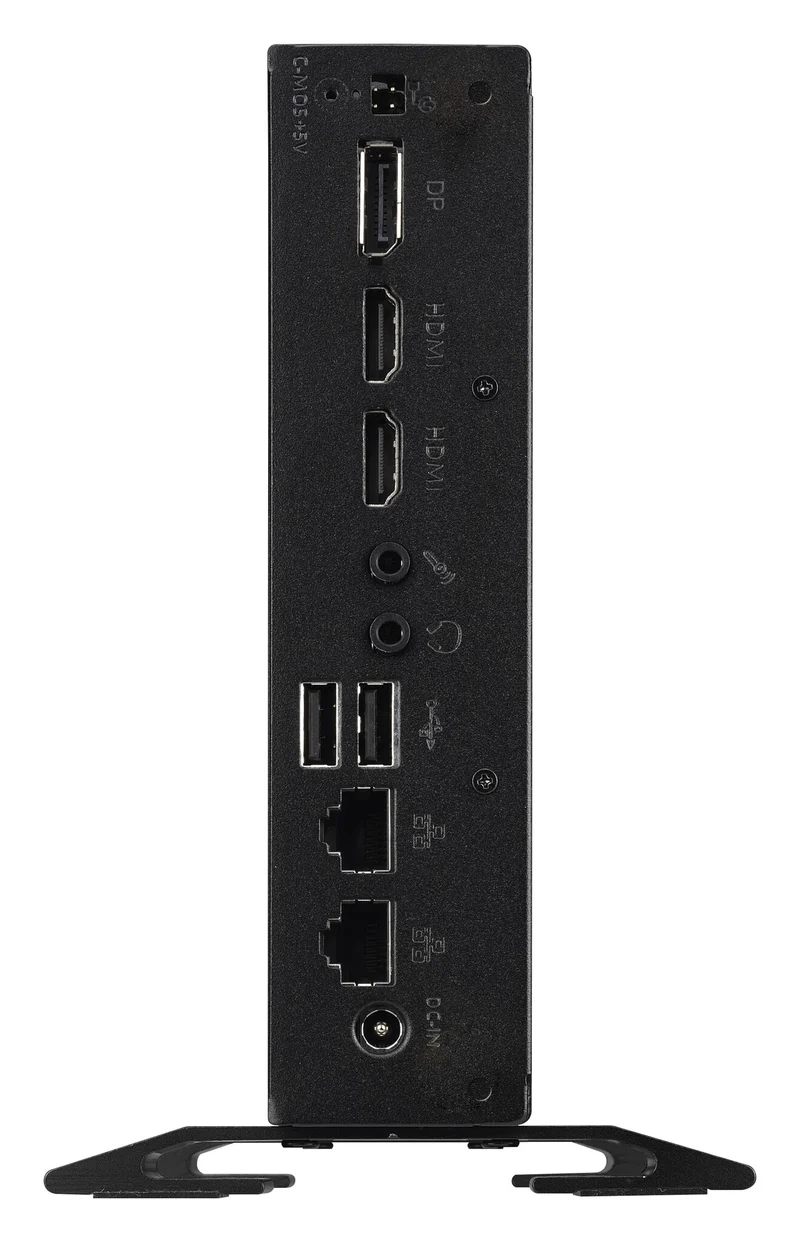

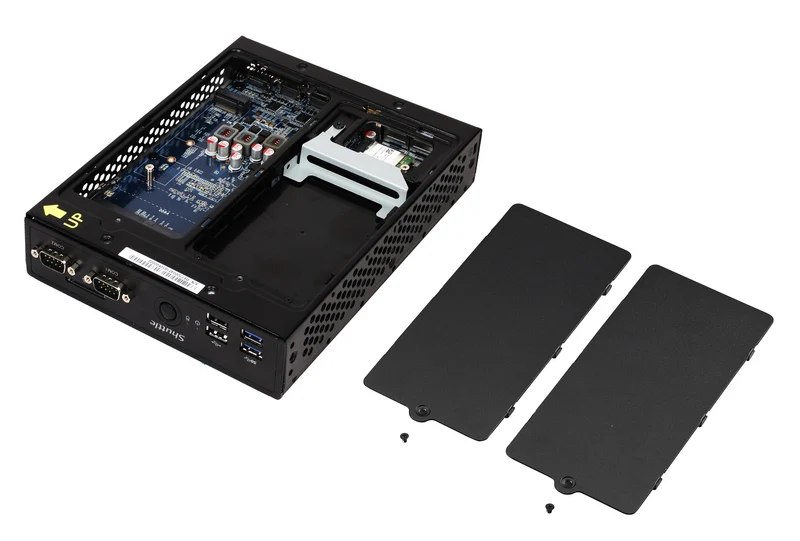

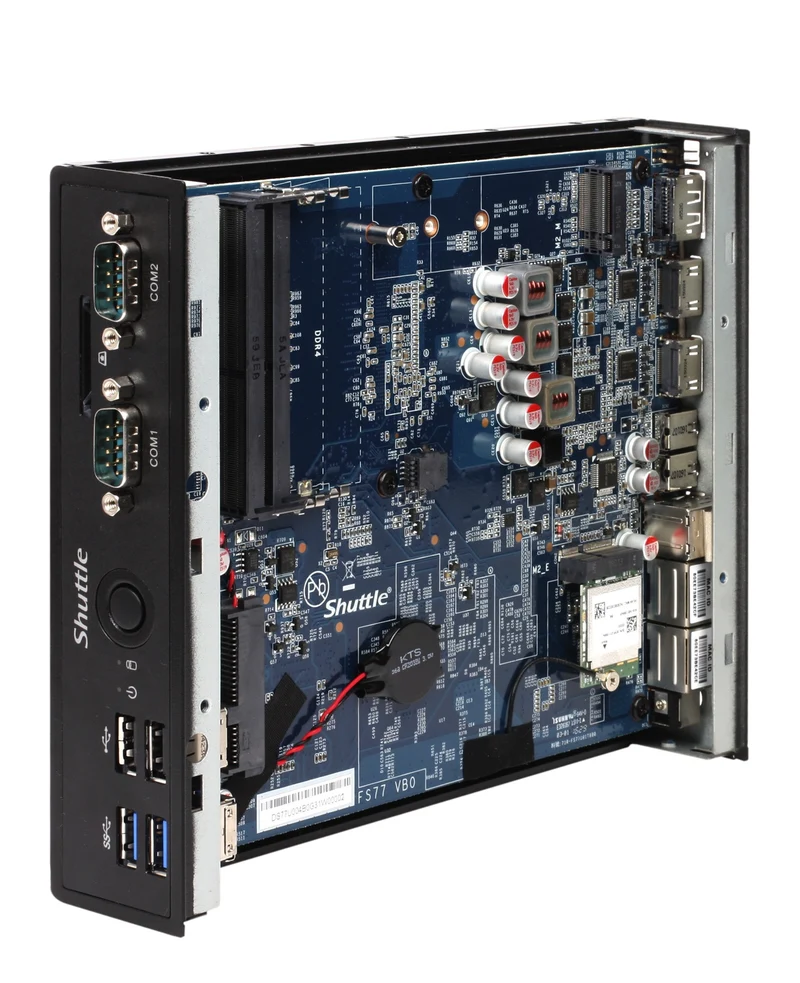

The DS77U is a fanless slim PC with a robust 1.3 litre metal chassis and exceptional connectivity: 2x HDMI, DisplayPort, Dual Intel LAN, USB 3.0/2.0, serial ports, audio, card reader and integrated W-LAN. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, a 2.5" drive and an M.2-2280 SSD card. The built-in Dual Core Intel "Kaby-Lake-U" processor with integrated graphics provides ample performance for playback of 4K content. Thanks to its re-designed passive cooling architecture, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS77U is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Cloud Computing, Office PC and Multimedia.

High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.

HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.

Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.

Dual network connection
In this model two gigabit network controllers ensure maximum data transmission rates via load balancing and maximum availability via the failover function.

The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.

Pre-assembled cabling saves time
The most important power and data cables are already routed and just have to inserted into the relevant components. This saves valuable time when setting up the system.

Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.

Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.

You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.

Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.

Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.

Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.

Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.

Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.

Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.

Processor
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	3865U
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor lithography	14 nm
Thermal Design Power (TDP)	15 W
Processor codename	Kaby Lake
CPU configuration (max)	1

Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory voltage	1.2 V
Memory channels	Dual-channel
Maximum internal memory	16 GB
Supported memory clock speeds	2133 MHz
Supported memory types	DDR4-SDRAM
ECC	No

Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	M.2, Serial ATA III
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® HD Graphics 610

Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
LAN controller	Intel® I211, Intel® I219

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	2
HDMI version	1.4b
DisplayPorts quantity	1
Microphone in	Yes
Headphone outputs	1
Serial ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Expansion slots
PCI Express slots version	2.0
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1

Design
Chassis type	1.3L sized PC
Product colour	Black
Cooling type	Passive
LED indicators	HDD, Power
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Product type	Mini PC barebone
Safety	ETL, CB, BSMI

Performance
Motherboard chipset	Intel SoC
Processor socket	BGA 1356
Number of processors supported	1
Optical drive type	No
Audio system	HD

Processor special features
Intel® Smart Response Technology	Yes
Intel Clear Video Technology	Yes
Intel® OS Guard	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel® Secure Key	Yes
Intel TSX-NI	No
Thermal Monitoring Technologies	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Quick Sync Video Technology	Yes
Enhanced Intel SpeedStep Technology	Yes
Idle States	Yes
Intel 64	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Virtualization Technology (VT-x)	Yes
Execute Disable Bit	Yes
Intel Trusted Execution Technology	No
Intel Flex Memory Access	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Embedded options available	No

General
Product family	XPС slim

Logistics data
Harmonized System (HS) code	84733080

Sustainability
Sustainability certificates	ENERGY STAR

Software
Compatible operating systems	Windows 10 64-bit, Linux 64-bit
Operating system installed	No

Certificates
Certification	FCC, CE, BSMI, C-Tick, RoHS, ErP

Power
Power supply type	External AC adapter
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
Number of power supply units	1
Power supply	65 W

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Width	165 mm
Depth	200 mm
Height	39.5 mm
Weight	1.43 kg
Package weight	2.13 kg

Packaging content
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Display included	No

Other features
Country of origin	China
