Shuttle PSE01 Gigabit LAN with PoE Output for EN01 Edge PCs

• Wired
• Ethernet
• 1000 Mbit/s
• Internal Component for: PC

The PSE01 enables the EN01 to supply another network device with power via PoE
The Shuttle accessory PSE01 is a daughterboard for the EN01 series which provides a second Gigabit network port with Power-over-Ethernet (PoE) function. This makes the EN01 act as Power Sourcing Equipment (PSE) that carries both data and operating voltage to a connected network device, such as an IP camera.

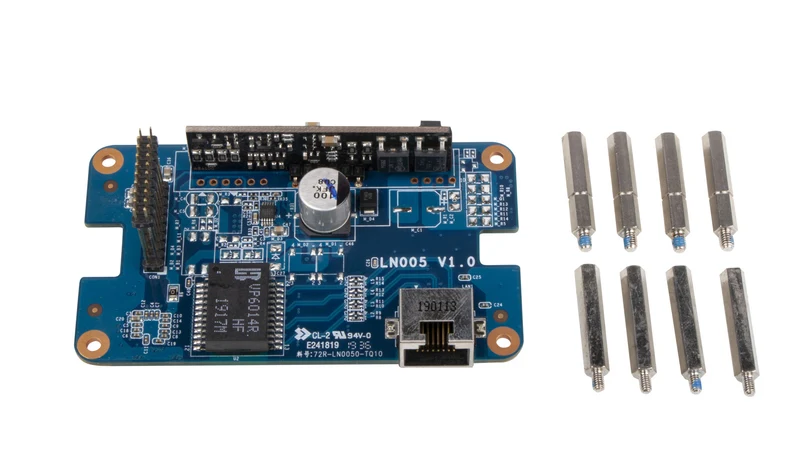

Contents:
- PoE daughterboard with RJ45 network connector
- 8× standoff (4 of these have a marking)
- Adhesive membrane
- Quick guide

Technical data:
- LAN controller: Realtek RTL8119I supports 1 Gbit/s
- PoE output wattage at the LAN port: 48 Vdc, max. 0.5 A
- Supports 802.3AT & 802.3AF PoE standards

Recommended power adapter for EN01:
≥ 40 W, if the accessory PSE01 is not used
≥ 65 W, if the accessory PSE01 is installed

Compatibility:
Compatible with the following Shuttle products:
Edge EN01J3, EN01J4, EN01E, EN01B

Ports & interfaces
Connectivity technology	Wired
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1

Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN	Yes

Design
Internal	Yes
Component for	PC
Product colour	Black, Blue
Country of origin	China
Compatible products	Shuttle Edge EN01J3, EN01J4, EN01E, EN01B

Logistics data
Harmonized System (HS) code	85176990
