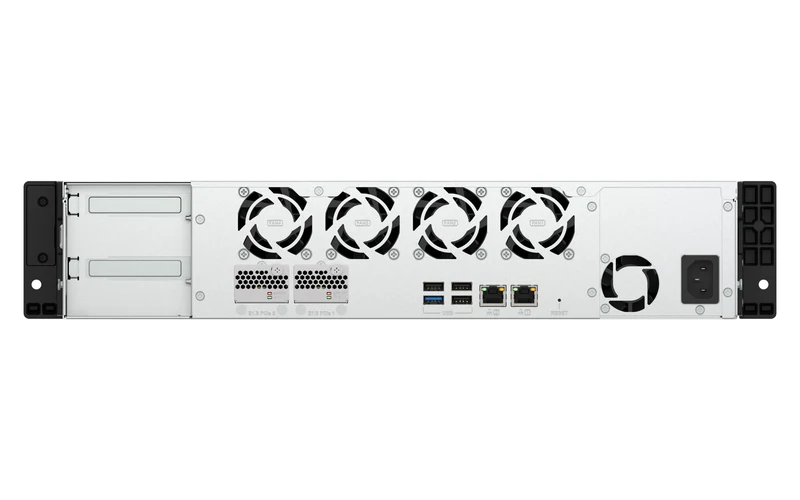

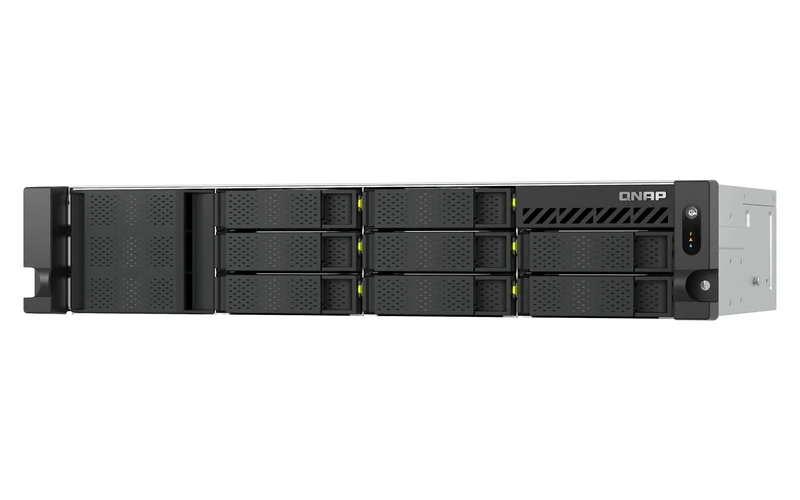

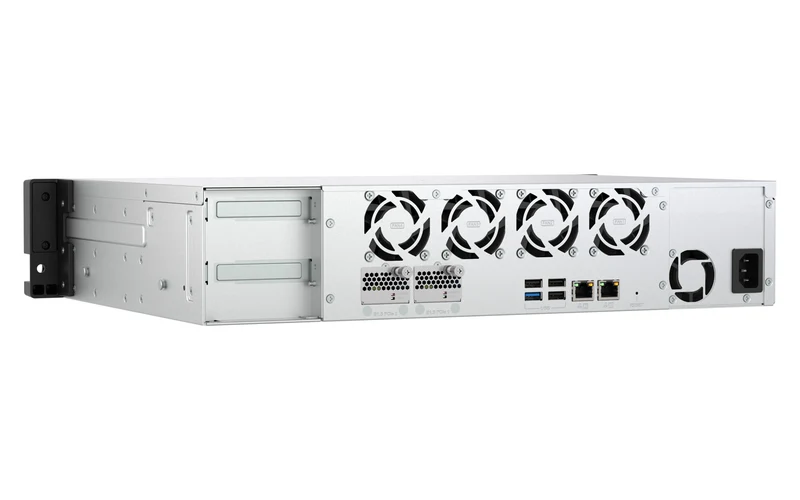

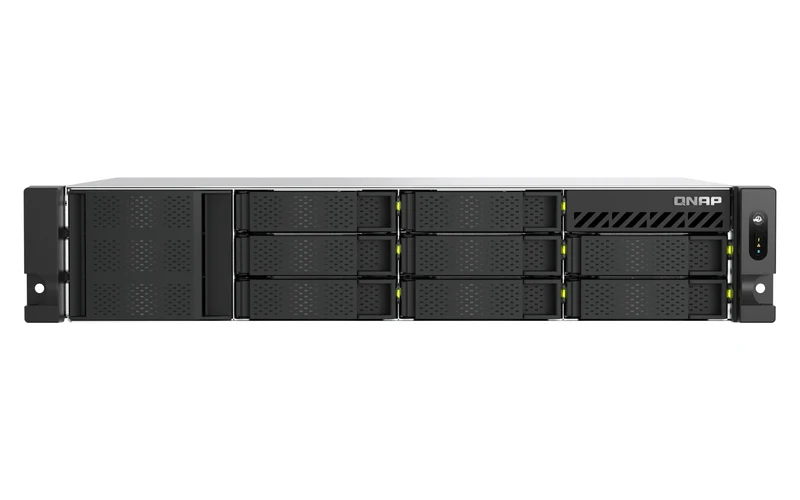

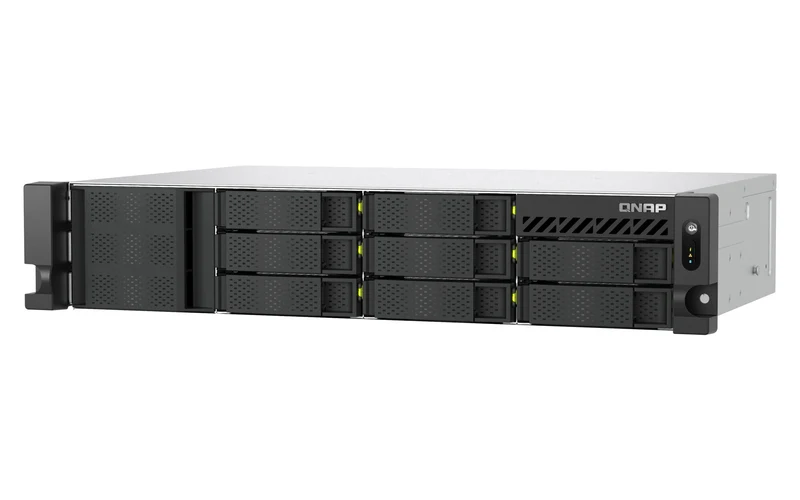

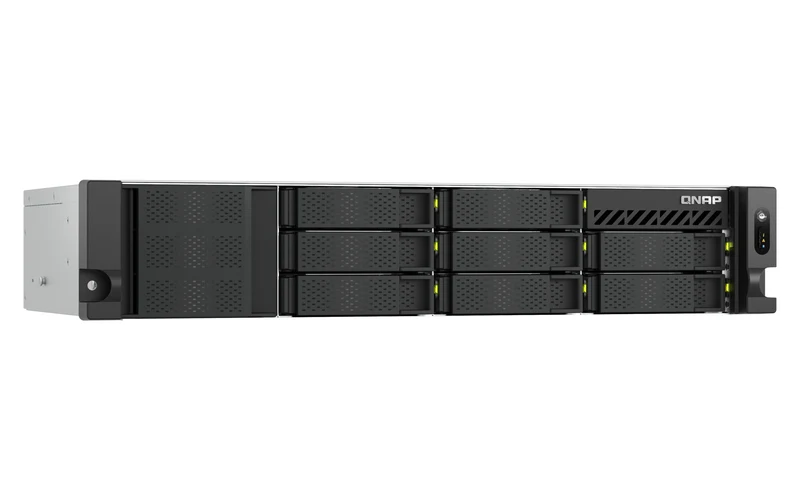

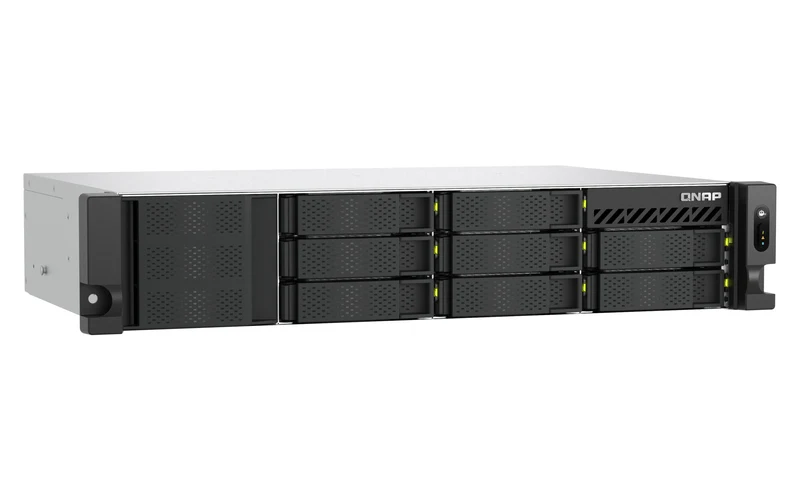

QNAP TS-H1065EU Storage server Rack (2U) 8 GB DDR5 0 TB QNAP QTS Black

• Flexible E1.S/M.2 slots: Two built-in E1.S/M.2 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications
• DDR5 RAM: Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed
• Built-in QuTS hero operating system: Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability
• Dual 2.5GbE as standard: Accelerate data transfer and backup speeds by enabling Port Trunking or SMB Multichannel
• PCIe Gen 3 slot: Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance
• Long-term supply: TS-h1065eU will be available and supported by QNAP for an extended period, up to 2031

TS-h1065eU
2U short-depth NAS equipped with advanced E1.S/M.2 PCIe NVMe slots and expandable with 10GbE connectivity

TS-h1065eU is designed for small and medium-sized businesses. Its 2U short-depth rackmount design makes it ideal for deployment in space-constrained environments. TS-h1065eU is powered by an Intel® quad-core processor, delivering 8 × 3.5-inch SATA drive bays, two highly expandable E1.S/M.2 PCIe NVMe slots—all within a compact 30 cm (12-inch) chassis. This combination of features is unmatched by competitors, making it a high-performance and highly efficient NAS solution for multitasking workloads.

Storage
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives supported	10
Installed storage drive type	No
Supported storage drive types	SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA III, M.2
Storage drive sizes supported	3.5,E1.S,M.2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	ext4, ext3, HFS+, FAT32, exFAT
Bad block scan	Yes
Auto-rebuild	Yes
Disk roaming	Yes

Processor
Processor manufacturer	Intel
Processor cores	4

Memory
Internal memory	8 GB
Internal memory type	DDR5
Maximum RAM supported	16 GB
Memory form factor	SO-DIMM
Memory slots	1
Flash memory	4000 MB

Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500,1000,100,10 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
Wake-on-LAN ready	Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1

Design
Chassis type	Rack (2U)
Cooling type	Active
Product colour	Black
LED indicators	Yes

Performance
Type	Storage server
Device class	Home & Home Office
Backup function	Yes
Buzzer	Yes
Disk scan	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
On/off switch	Yes

Software
Operating system installed	QNAP QTS
Operating system version	5.2.9

Power
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	55.83 W
Power consumption (HDD standby)	31.742 W
AC input voltage	100 - 240 V

Weight & dimensions
Width	432 mm
Depth	294.9 mm
Height	88.6 mm
Package width	530 mm
Package depth	210 mm
Package height	592 mm
Package weight	8.3 kg

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
