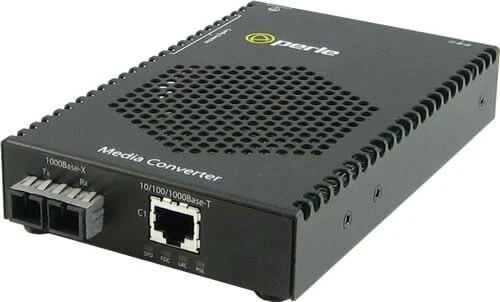

Perle S-1110P-M2SC2 network media converter 1000 Mbit/s 1310 nm Multi-mode Black

• Wired
• 1000 Mbit/s 2000 m 1310 nm
• Ethernet LAN (RJ-45) ports: 1
• Multi-mode SC
• Black

S-1110P-M2SC2 - 10/100/1000 Gigabit Ethernet Stand-Alone Media Rate Converter with PoE Power Sourcing. 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX 1310nm Extended multimode (SC) [2km /6562 ft.]. Includes AC Power Adapter

Network
Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-LX, 1000Base-T
Networking standards	IEEE 802.3u, IEEE 802.3bt
Ethernet LAN data rates	10,1000,100 Mbit/s
Duplex system	Full, Half
Cable types supported	Cat5

Performance
Maximum transfer distance	2000 m
Wavelength	1310 nm
Fiber mode structure	Multi-mode

Features
Internal	No
Product colour	Black
LED indicators	Yes

Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SC

Power
Input voltage	100 - 240 V
Power consumption (typical)	6 W
Power over Ethernet (PoE)	Yes

Weight & dimensions
Width	150 mm
Depth	95 mm
Height	26 mm
Weight	450 g

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%

Packaging data
Package width	300 mm
Package depth	200 mm
Package height	70 mm
