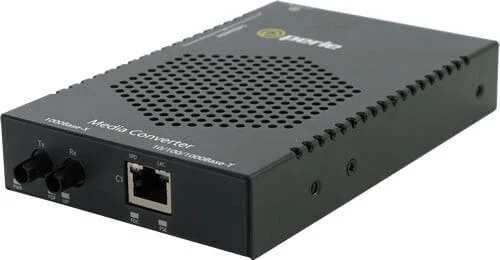

Perle S-1110HP-ST70 network media converter 1000 Mbit/s 1550 nm Single-mode Black

• Wired
• 1000 Mbit/s 70000 m 1550 nm
• Ethernet LAN (RJ-45) ports: 1
• Single-mode Fiber ports quantity: 1 ST
• IP20
• Black

Perle S-1110HP Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices such as pan-tilt-zoom (PTZ) security cameras with heaters, LED lighting in building management, and 802.11ax/ac wireless access points.

Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD’s per converter. Learn more about PoE.

S-1110HP Fiber Media Converters come with fixed fiber ports that support multimode or single mode fiber with dual ST/SC connectors or single strand fiber SC connectors.

extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over 1000Base-X fiber
extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber up to 160km
protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-1110HP PoE Media Converters the smart choice for IT professionals.

Network
Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T
Networking standards	IEEE 802.3u, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
Cable types supported	Cat5

Performance
Maximum transfer distance	70000 m
Wavelength	1550 nm
Fiber mode structure	Single-mode
Buffer size	1000 KB
Mean time between failures (MTBF)	342019 h

Features
Internal	No
International Protection (IP) code	IP20
Product colour	Black
LED indicators	Yes

Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	ST

Power
Input voltage	100 - 240 V
Power consumption (typical)	4 W
Power over Ethernet (PoE)	Yes

Weight & dimensions
Width	150 mm
Depth	95 mm
Height	26 mm
Weight	400 g

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%

Packaging data
Package width	300 mm
Package depth	200 mm
Package height	70 mm
Package weight	13.6 kg

Certificates
Certification	Reach, RoHS, WEEE

Logistics data
Quantity per pack	1 pc(s)
