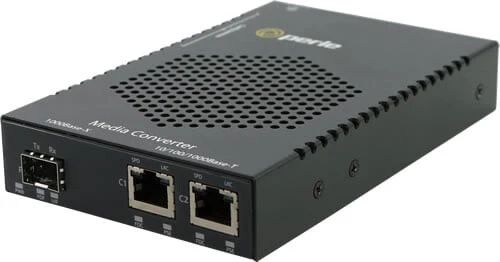

Perle S-1110DHP-SFP-XT network media converter 1000 Mbit/s Black

• 10/100/1000Base-T to 100/1000Base-X Fiber
• 1 or 2 empty slots for Cisco and other industry standard SFPs
• Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
• Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
• Dual or Single 10/100/1000Base-T PoE ports
• Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
• -40°F to +167°F (-40°C to +75°C) extended operating temperature

S-1110DHP-SFP-XT - Gigabit Industrial Temperature Media and Rate Converter with Type 4 High-Power PoE PSE (up to 100W/port): Dual 10/100/1000Base-T (RJ45) [100 m/328 ft] to 1000Base-X or 100Base-X - SFP Slot (empty). -40F to +167F (-40C to +75C) operating temperature support. Terminal block power connector for external power source

Network
Maximum data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Performance
Maximum transfer distance	100 m
Buffer size	1000 KB
Mean time between failures (MTBF)	324134 h

Features
Internal	No
International Protection (IP) code	IP20
Housing material	Metal
Product colour	Black
LED indicators	Yes

Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	2
Fiber ports quantity	2
Fiber optic connector	SFP

Power
Input voltage	52 - 57 V
Power over Ethernet (PoE)	Yes

Weight & dimensions
Width	95 mm
Depth	150 mm
Height	26 mm
Weight	400 g

Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m

Packaging data
Package width	300 mm
Package depth	200 mm
Package height	70 mm
Package weight	560 g
