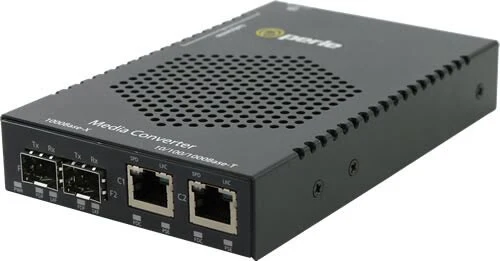

Perle S-1110DHP-DSFP-XT network media converter 1000 Mbit/s Black

• 10/100/1000Base-T to 100/1000Base-X Fiber
• 1 or 2 empty slots for Cisco and other industry standard SFPs
• Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
• Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
• Dual or Single 10/100/1000Base-T PoE ports
• Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
• -40°F to +167°F (-40°C to +75°C) extended operating temperature

Perle S-1110HP-SFP-XT Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices. Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. With an operating temperature -40°F to +167°F (-40°C to +75°C) this Hi-PoE Media Converter is ideal for use with industrial devices subjected to harsh environments and severe temperatures such as pan-tilt-zoom (PTZ) security cameras with heaters, 802.11ax/ac wireless access points, alarms, traffic controllers, sensors and tracking devices.

Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP-SFP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD’s per converter Learn more about PoE

And, with one or two empty transceiver ports on the S-1110HP-SFP Fiber Media Converter, flexible network configurations requirements can be meet using a variety of transceivers supplied by Perle transceivers supplied by Perle, Cisco, or other manufacturers of MSA compliant SFPs.

extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over 100/1000Base-X fiber
extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-1110HP-SFP-XT PoE Media Converters the smart choice for IT professionals.

Network
Maximum data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Performance
Maximum transfer distance	100 m
Buffer size	1000 KB
Mean time between failures (MTBF)	324134 h

Features
Internal	No
International Protection (IP) code	IP20
Housing material	Metal
Product colour	Black
LED indicators	Yes

Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	2
Fiber ports quantity	2
Fiber optic connector	SFP

Power
Input voltage	52 - 57 V
Power over Ethernet (PoE)	Yes

Weight & dimensions
Width	95 mm
Depth	150 mm
Height	26 mm
Weight	400 g

Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m

Packaging data
Package width	300 mm
Package depth	200 mm
Package height	70 mm
Package weight	560 g
