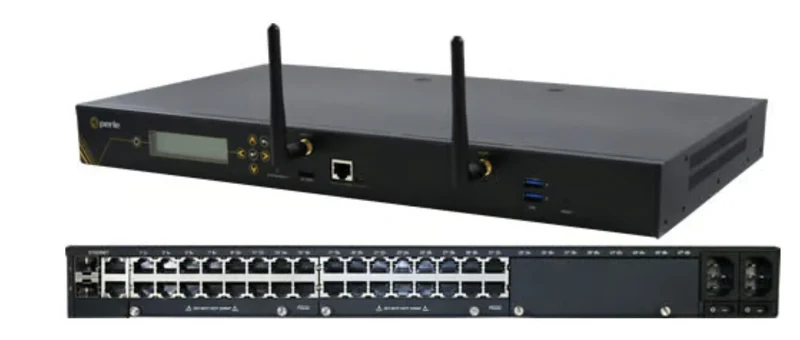

Perle IOLAN SCG34 S-W RS-232/RJ-45

• Modular design supports RS232/RS422/RS485 RJ45 and USB 3.0 Interfaces
• Integrated v.92 modem for out of band access
• Dual 10/100/1000 Network Connection with RJ45 Copper and SFP Fiber Ports
• ZTP & PerleVIEW Central Management Platform simplifies configuration, administration, monitoring, and troubleshooting.
• Cloud Hosting -- Deploy and manage your network from the cloud
• Advanced routing engine with AAA security and SSH/SSL encryption to meet all data center compliance policies
• Dual AC or Dual Feed 48vDC Power for Fault-tolerant uptime

IOLAN SCG34 S-W Console Server: 32 x software selectable RS232/422/485 RJ45 interfaces, 2 x USB Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, IPv4/IPv6 routing (RIP, OSPF, BGP), ZTP, REST / Python, Cloud-hosting, advanced data encryption, user authentication and event management security features included, COM port redirector, 15kv ESD, Expandable using IOLAN G16 Cards, Dual AC Power

Technical details
Package depth	360 mm
Package weight	4.1 kg
Package width	590 mm
Package height	90 mm
Product colour	Black
Rack mounting	Yes

Security
Security algorithms	SSL/TLS

Ports & interfaces
Console port	RS-232/RJ-45
SFP module slots quantity	2
Serial ports quantity	32

Memory
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
RAM capacity	1000 MB
Flash memory	4000 MB

Operational conditions
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 55 °C

Power
AC input voltage	100 - 240 V
Power consumption (typical)	15.5 W
