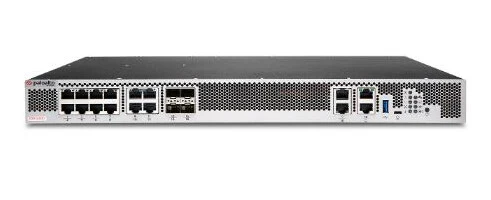

Palo Alto Networks Prisma SD-WAN ION 9200 hardware firewall 1U

• 1U
• Wired Console port: RJ-45/Micro-USB
• 65536 MB
• Total storage capacity: 480 GB SSD capacity: 480 GB

Prisma SD-WAN ION 9200 is a next generation software-defined device that can be deployed in a data center. With the introduction of ION 9200, accelerate your SASE deployment to a DC by leveraging WAN connectivity without installing additional hardware to enable rapid deployments.
The new high-performance ION 9200 device comes with fiber ports offering RJ-45/SFP Combo WAN ports, higher power SFP+ ports to support smart SFPs, wireless LAN Access points, PoE to power external cellular gateways, and other PoE powered devices such as IP phones or cameras or Wireless Access Points.

Performance
Internal memory	65536 MB

Ports & interfaces
Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	15
Console port	RJ-45/Micro-USB
Number of console ports	1
Installed SFP+ modules quantity	10

Storage
Storage media type	SSD
SSD capacity	480 GB
Total storage capacity	480 GB

Design
Rack mounting	Yes
Form factor	1U
Built-in display	No
Number of fans	4 fan(s)
Built-in fan	Yes

Power
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Power supply	450 W

Certificates
Certification	IEC 62368-1, cTUVus, FCC & CE Class A, TEC, KCC

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width	359.4 mm
Depth	435.6 mm
Height	43.2 mm
Weight	7.03 kg
