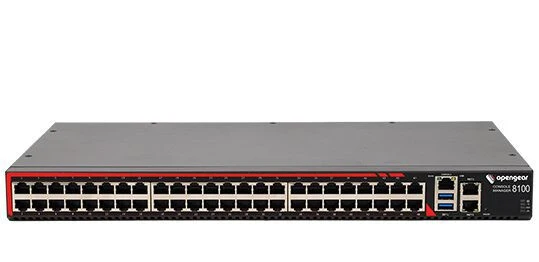

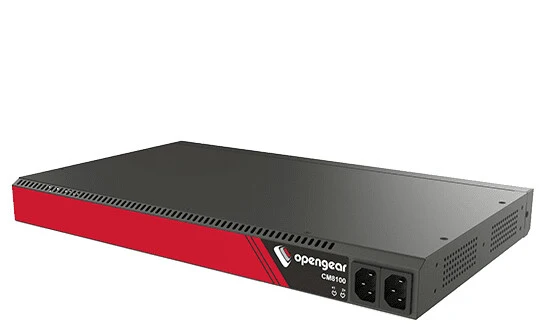

Opengear CM8148-DDC console server RS-232/RJ-45

• 16, 32, 48 or 96 port serial console server with Smart OOB™
• Ideal replacement for legacy terminal servers
• Enables Data Center automation with Python and Docker support
• Embedded physical security using TPM 2.0 module
• Dual power supplies with independent monitoring
• – C models feature built-in 5G cellular modem for enhanced bandwidth, lower latency, and reliability

Secure remote access for data centers, enterprise networks, and edge sites — with built-in 5G options.

The CM8100 Series is our latest high-density console manager, built to keep critical infrastructure reachable under any condition. It offers options for 1GbE, 10GbE, and 10GbE-5G, enhancing out-of-band management capabilities. This series includes select models equipped with 5G cellular technology and supports up to 96 serial ports. With a TPM 2.0 module, it ensures enterprise-grade security. Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear’s Lighthouse® Software.

- 16, 32, 48, and 96 port serial console server with Smart Out-of-Band™
- REST API support for automation tools, Docker, and Python scripting
- Built-in 5G cellular modem for enhanced bandwidth, lower latency, and reliability
- Hardware-based TPM 2.0 provides secure boot
- Dual power supplies with independent monitoring
- 10Gb SFP+ uplinks connect directly to high-speed networks in select models
- Port auto-discovery simplifies configuration of serial settings and port labels
- Eliminates the need for serial adapters with selectable software serial ports in select models
- All appliances ship with two C14 power cables standard

Technical details
Cellular	Yes
Supported programming languages	Python
Product colour	Black, Red
Internal modem	Yes
Rack mounting	Yes

Ports & interfaces
Console port	RS-232/RJ-45
USB 2.0 ports quantity	2
Serial ports quantity	48

Processor
Processor family	ARM Cortex-A9
Processor cores	2
Processor frequency	1.6 MHz

Memory
eMMC capacity	32 TB
RAM type	DDR4
RAM capacity	2000 MB

Operational conditions
Operating relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 50 °C
