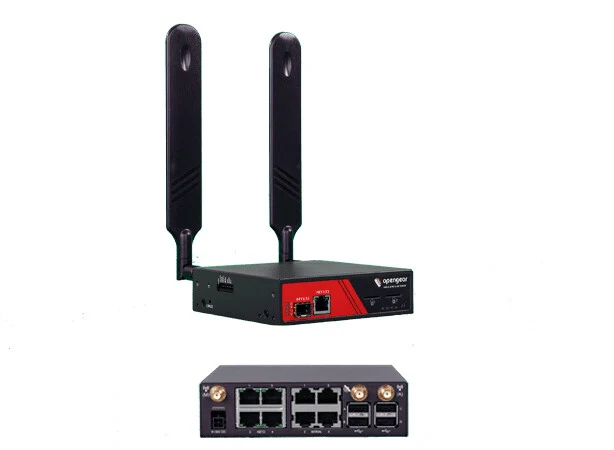

Opengear ACM7004-2-GLB gateway/controller 10, 100, 1000 Mbit/s

• 10,100,1000 Mbit/s
• Built-in processor 800 MHz 256 MB 32 MB
• Antenna type: External
• Rack mounting
• Black, Red

For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable.

Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem.

Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellular™ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.

Design
Product colour	Black, Red
Mounting type	Rack mounting

Features
Antenna type	External

Performance
Control display unit	No
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory type	DDR3
Internal memory	256 MB
Flash memory	32 MB

Network
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces
USB 2.0 ports quantity	4
RS-232 ports	4
SIM card slot	Yes
Fixed SFP ports quantity	1
Ethernet LAN (RJ-45) ports	2

Power
Power consumption (typical)	11.5 W
Input voltage	110 - 240 V
DC input voltage	12 V

Software
Operating system installed	Linux

Weight & dimensions
Height	35 mm
Depth	120 mm
Width	130 mm
Weight	6 kg

Operational conditions
Operating temperature (T-T)	-25 - 60 °C
Storage temperature (T-T)	-40 - 75 °C

Logistics data
Harmonized System (HS) code	85176990
