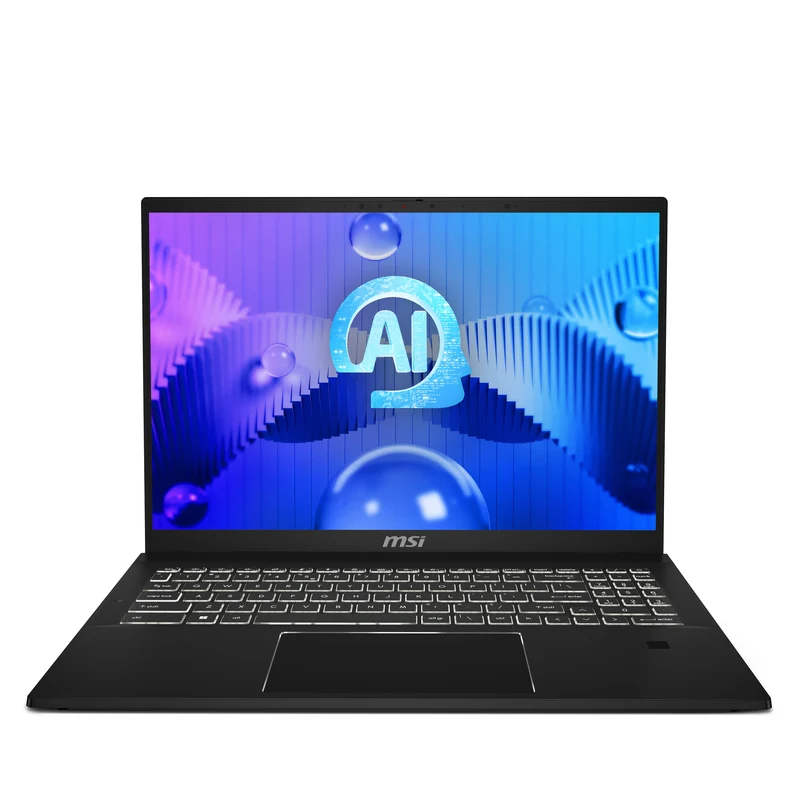

MSI Summit E16 AI Studio A1VFTG-001UK Intel Core Ultra 7 155H Hybrid (2-in-1) 40.6 cm (16") Touchscreen Quad HD+ 32 GB LPDDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 7 (802.11be) Windows 11 Pro Black

• Windows 11 Pro
• Intel Core Ultra 7 155H (24MB Cache)
• 40.6 cm (16") Quad HD+ 2560 x 1600 Touch, NVIDIA GeForce RTX 4060 (8GB GDDR6)
• 32GB (6400MHz) LPDDR5-SDRAM & 2000GB SSD

Experience the productivity brought by AI. The new Summit E16 AI Studio A1V comes with the latest Intel® Evo™ Edition platform, powered by Intel® Core™ Ultra processor (Series 1) and validated by NVIDIA Studio, increasing productivity to the next stage. Combined with a versatile design and support MSI Pen 2, enjoy optimal productivity anytime, anywhere.

Design
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Folder)
Country of origin	China

Display
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	Quad HD+
Native aspect ratio	16:10
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	165 Hz

Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor model	155H
Processor cores	16
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	1.4 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	4.8 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	28 W

Memory
Internal memory	32 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Memory clock speed	6400 MHz
Maximum internal memory	32 GB

Storage
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics

Audio
Audio system	DTS Audio Processing
Number of built-in speakers	2
Speaker power	2 W
Number of microphones	3
Built-in microphone	Yes

Camera
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

Performance
Motherboard chipset	Intel SoC

Keyboard
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software
Operating system installed	Windows 11 Pro

Battery
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	80.25 Wh

Power
AC adapter power	100 W

Security
Trusted Platform Module (TPM)	Yes

Weight & dimensions
Weight	2.1 kg
Width	358 mm
Depth	258.6 mm
Height	17.4 mm
Height (front)	1.69 cm
Height (rear)	1.74 cm

Packaging data
Package width	499 mm
Package depth	88 mm
Package height	333 mm
Package weight	3 kg
Package volume	89100 cm³

General
Product series	E16 AI Studio
Product family	Summit

Logistics data
Commodity Classification Automated Tracking System (CCATS)	8471300000
